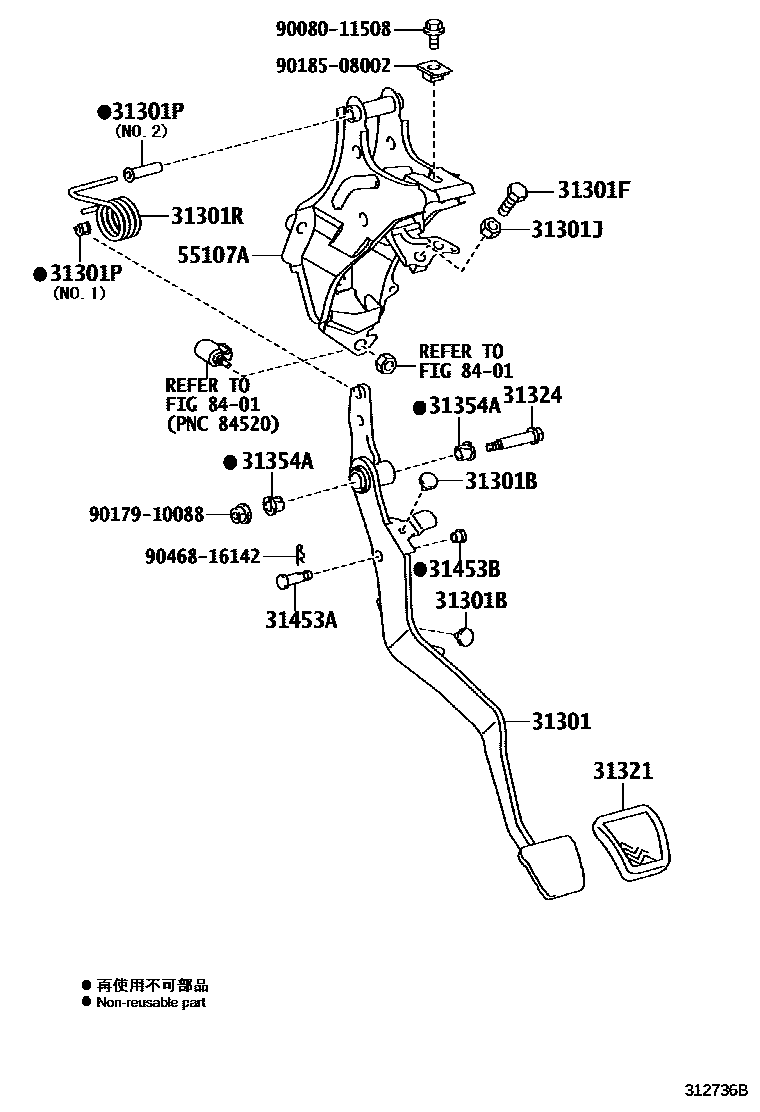

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-02430iZRE172..6F201608

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036×2iZRE172..6F201308-201608

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10055iZRE172..6F201608

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main46441-12020iZRE172..6F201308-201608

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90386-05017iZRE172..6F201308-201608

NO.1

main90389-05019iZRE172..6F201308-201608

NO.2

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90949-03138iZRE172..6F201308-201608

31321PAD, CLUTCH PEDAL

main31321-42010iZRE172..6F201308-201608

31324SHAFT, CLUTCH PEDAL

main90109-10174iZRE172..6F201308-201608

31354ABUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)

main90386-13015×2iZRE172..6F201308-201608

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08256iZRE172..6F201308-201608

L=36.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iZRE172..6F201308-201608

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-02341iZRE172..6F201308-201608

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008011508

main90080-11508

9017910088

main90179-10088

9018508002

main90185-08002

9046816142

main90468-16142

17 parts on this diagram · 2 diagrams in section
