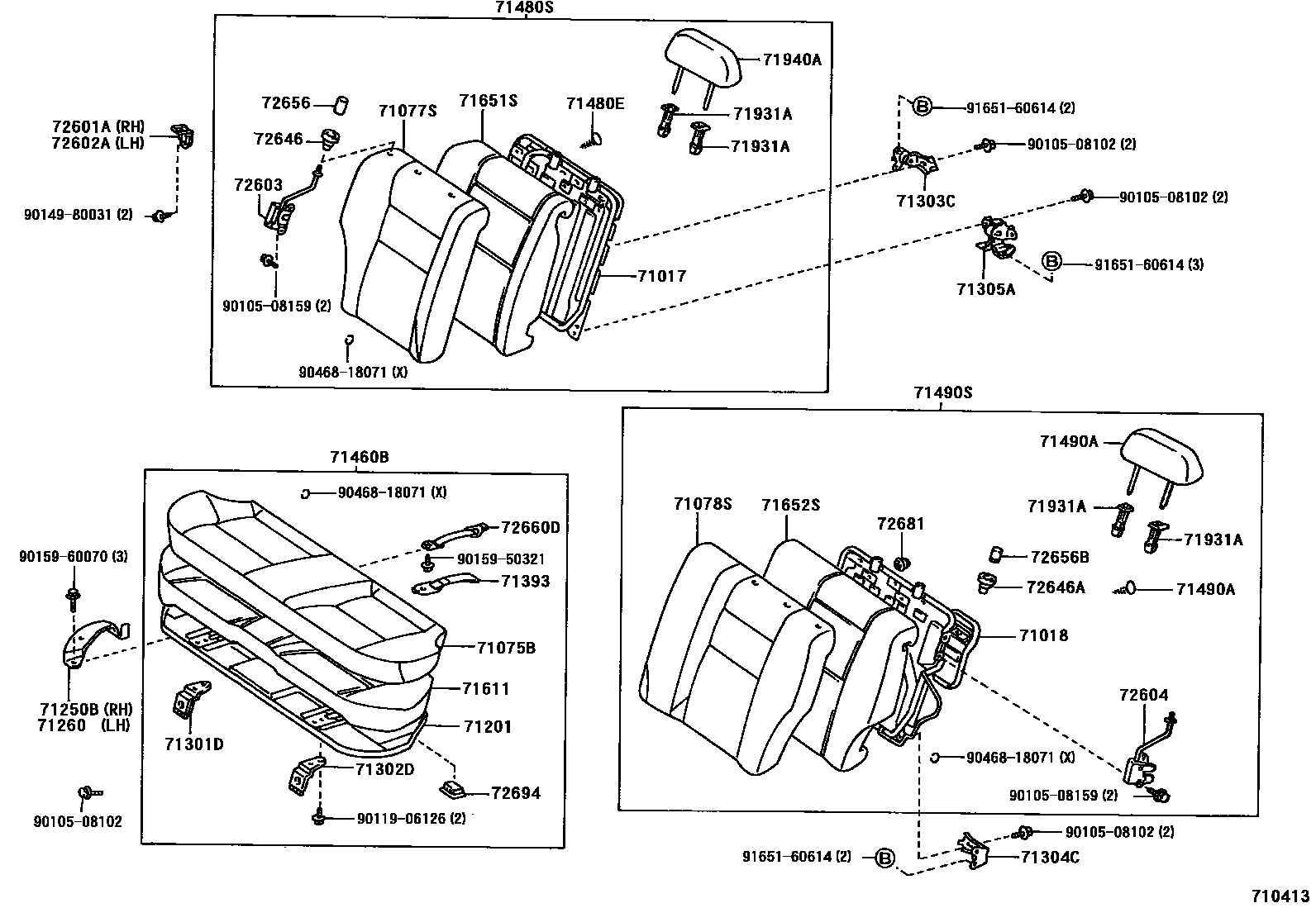

REAR SEAT & SEAT TRACK

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-13190i199402-199605

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-13040i199402-199605

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-1E070-B1i199402-199605

SHADOW GRAY/BLACK,TRIM1#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-1L141-B1i199402-199405

SHADOW GRAY/BLACK,TRIM1#

main71077-1L142-B1i199405-199605

SHADOW GRAY/BLACK,TRIM1#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-1E251-B1i199402-199405

SHADOW GRAY/BLACK,TRIM1#

main71078-1E252-B1i199405-199605

SHADOW GRAY/BLACK,TRIM1#

71201PANEL SUB-ASSY, REAR SEAT CUSHION

main71201-13150i199402-199605

71250BBRACKET ASSY, SEAT, OUTER RH

main71250-13010i199402-199508

main71250-13020i199508-199605

71260BRACKET ASSY, SEAT, OUTER LH

main71260-13010i199402-199508

main71260-13020i199508-199605

71301DHINGE SUB-ASSY, REAR SEAT, RH

main71301-13070i199402-199605

71302DHINGE SUB-ASSY, REAR SEAT, LH

main71302-13030i199402-199605

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-12110i199402-199605

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71303-12110i199402-199605

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-12110i199402-199605

71393BAND, REAR SEAT CUSHION

main71393-13080-B0i199402-199605

SHADOW GRAY,TRIM1#

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71560-1E140-B1i199402-199605

***,SHADOW GRAY/BLACK,TRIM1#

71480ECLIP, REAR SEATBACK, RH

main90467-07042-13×5i199405-199411

SHADOW GRAY,TRIM1#

main90467-07042-B1×5i199411-199605

SHADOW GRAY,TRIM1#

main90467-07049-C0×5i199402-199405

BLACK,TRIM1#

71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

main71480-1L210-B0i199402-199409

***,SHADOW GRAY/BLACK,TRIM1#

main71480-1L211-B0i199409-199605

***,SHADOW GRAY/BLACK,TRIM1#

71490ACLIP, REAR SEATBACK, LH

main90467-07042-13×6i199405-199411

SHADOW GRAY,TRIM1#

main90467-07042-B1×6i199411-199605

SHADOW GRAY,TRIM1#

main90467-07049-C0×6i199402-199405

BLACK,TRIM1#

71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71490-1E340-B0i199402-199409

***,SHADOW GRAY/BLACK,TRIM1#

main71490-1E341-B0i199409-199605

***,SHADOW GRAY/BLACK,TRIM1#

71611PAD, REAR SEAT CUSHION

main71611-13180i199402-199605

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-13210i199402-199605

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-13090i199402-199605

71931ASUPPORT, REAR SEAT HEADREST

main71930-12070-B0×2i199402-199508

W(LOCK),SHADOW GRAY,TRIM1#

main71930-32020-B0×2i199508-199605

W(LOCK),SHADOW GRAY,TRIM1#

main71931-12040-B0×2i199402-199508

W/O(LOCK),SHADOW GRAY,TRIM1#

main71931-32020-B0×2i199508-199605

W/O(LOCK),SHADOW GRAY,TRIM1#

71940AHEADREST ASSY, REAR SEAT

main71940-12110-C0×2i199402-199605

BLACK,TRIM1#

72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH

main72601-13080i199402-199605

72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH

main72601-13080i199402-199605

72603LOCK SUB-ASSY, REAR SEATBACK, RH

main72630-13120i199402-199605

72604LOCK SUB-ASSY, REAR SEATBACK, LH

main72640-13120i199402-199605

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-13010-B0i199402-199605

SHADOW GRAY,TRIM1#

72646AGROMMET, REAR SEATBACK STOP BUTTON

main72646-13010-B0i199402-199605

SHADOW GRAY,TRIM1#

72656BUTTON, REAR SEATBACK STOP RELEASE

main72661-13030-B0i199402-199605

SHADOW GRAY,TRIM1#

72656BBUTTON, REAR SEATBACK STOP RELEASE

main72661-13030-B0i199402-199605

SHADOW GRAY,TRIM1#

72660DSUPPORT ASSY, REAR SEAT CUSHION

main72660-13010i199402-199605

72681HOOK, REAR SEATBACK LOCK, LOWER

main72681-16010-B2i199402-199605

SHADOW GRAY,TRIM1#

72694COVER, REAR SEAT CUSHION LOCK

main72694-13010×2i199402-199605

9010508102

main90105-08102

9010508159

main90105-08159

9011906126

main90119-06126

9014980031

main90149-80031

9015950321

main90159-50321

9015960070

main90159-60070

9046818071

main90468-18071

9165160614

main91651-60614

43 parts on this diagram · 1 diagram in section
