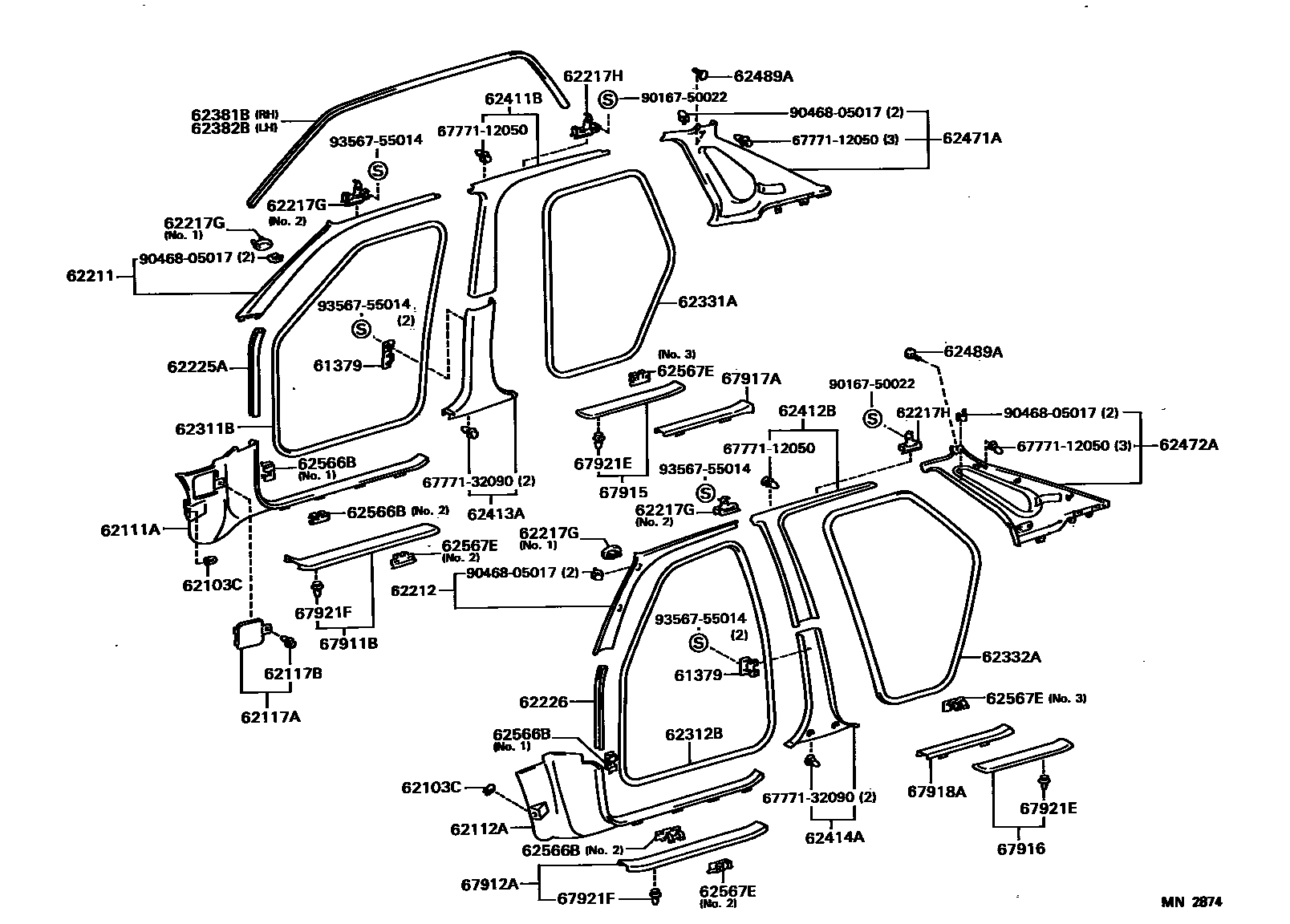

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

61379BRACKET, CENTER PILLAR GARNISH

main61379-12010×4iAE102199402-199605

62103CCLIP, COWL SIDE TRIM BOARD SET

main90467-05050-22×2iAE102199402-199605

BLACK,TRIM1#

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-12170-P0iAE102199402-199605

SHADOW GRAY,TRIM1#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-12170-P0iAE102199402-199605

SHADOW GRAY,TRIM1#

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-12140-P0iAE102199402-199605

SHADOW GRAY,TRIM1#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-08149iAE102199402-199605

62211GARNISH, FRONT PILLAR, RH

main62211-12240-P0iAE102199402-199605

SHADOW GRAY,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62212-12240-P0iAE102199402-199605

SHADOW GRAY,TRIM1#

62217GCLIP, FRONT PILLAR GARNISH

main62217-12010×4iAE102199402-199605

NO.2

main62217-12030×2iAE102199402-199605

NO.1

62217HCLIP, CENTER PILLER GARNISH

main62217-12010×4iAE102199402-199605

62225AGARNISH, FRONT PILLAR, LOWER RH

main62225-12020-P0iAE102199402-199605

SHADOW GRAY,TRIM1#

62226GARNISH, FRONT PILLAR, LOWER LH

main62226-12020-P0iAE102199402-199605

SHADOW GRAY,TRIM1#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-12040iAE102199402-199605

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-12040iAE102199402-199605

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-12020iAE102199402-199605

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-12020iAE102199402-199605

62381BWEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-12221iAE102199402-199605

62382BWEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-12231iAE102199402-199605

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-12480-B0iAE102199402-199605

SHADOW GRAY,TRIM1#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-12480-B0iAE102199402-199605

SHADOW GRAY,TRIM1#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-12190-P0iAE102199402-199605

SHADOW GRAY,TRIM1#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-12190-P0iAE102199402-199605

SHADOW GRAY,TRIM1#

62471AGARNISH, ROOF SIDE, INNER RH

main62470-12050-B0iAE102199402-199605

SHADOW GRAY,TRIM1#

62472AGARNISH, ROOF SIDE, INNER LH

main62480-12050-B0iAE102199402-199605

SHADOW GRAY,TRIM1#

62489ACLIP, ROOF SIDE INNER GARNISH

main62489-12021-B0×2iAE102199402-199605

SHADOW GRAY,TRIM1#

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-12030×8iAE102199402-199605

NO.2

main62567-12010×2iAE102199402-199605

NO.1

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62566-12030×2iAE102199402-199605

NO.2

main62566-12040×2iAE102199402-199605

NO.3

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-12050-P0iAE102199402-199605

SHADOW GRAY,TRIM1#

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-12020-P0iAE102199402-199605

SHADOW GRAY,TRIM1#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-12030-P0iAE102199402-199605

SHADOW GRAY,TRIM1#

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-12010-P0iAE102199402-199605

SHADOW GRAY,TRIM1#

67917APLATE, REAR DOOR SCUFF, RH

main67917-12100-B0iAE102199402-199605

SHADOW GRAY,TRIM1#

67918APLATE, REAR DOOR SCUFF, LH

main67918-12090-B0iAE102199402-199605

SHADOW GRAY,TRIM1#

67921ERETAINER, REAR DOOR SCUFF PLATE

main67921-32010×4iAE102199402-199605

67921FRETAINER, FRONT DOOR SCUFF PLATE

main67921-32010×6iAE102199402-199605

6777112050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12050

6777132090WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32090

9016750022

main90167-50022

9046805017

main90468-05017

9356755014

main93567-55014

40 parts on this diagram · 1 diagram in section
