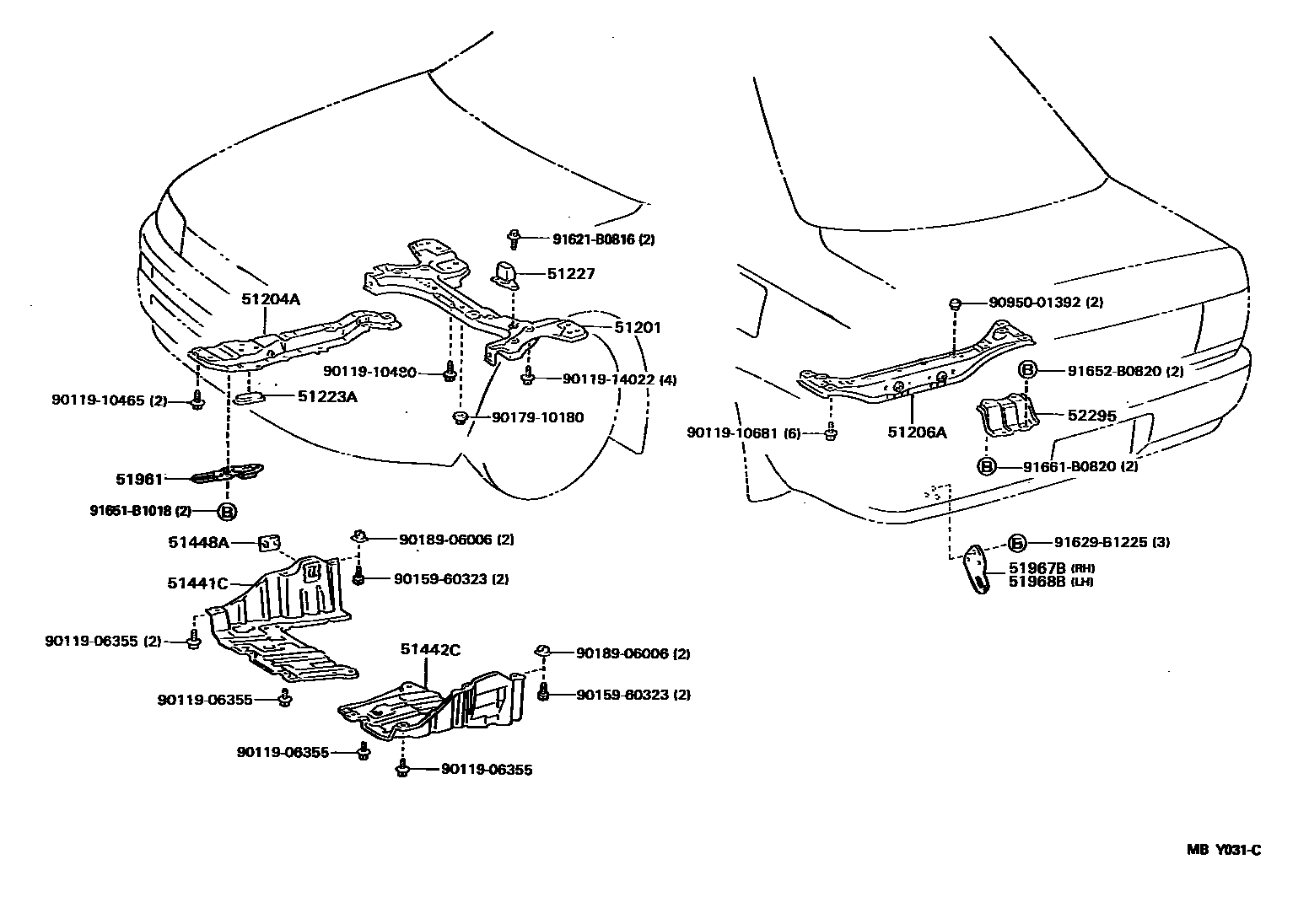

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12360iAE102199402-199505

main51201-12380iAE102199505-199605

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-12080iAE102199402-199605

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-12060iAE102199402-199605

51223ACOVER, ENGINE MOUNTING HOLE

main51223-12010iAE102199402-199406

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-12040iAE102199402-199605

51441CCOVER, ENGINE UNDER, RH

main51441-12140iAE102199402-199605

51442CCOVER, ENGINE UNDER, LH

main51442-12080iAE102..5F199402-199605

main51442-12090iAE102..4FC199402-199605

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20010iAE102199402-199501

51961HOOK, NO.1

main51960-12040iAE102199402-199505

main51960-12060iAE102199505-199605

51967BHOOK, TRANSPORT, REAR RH

main51967-12220iAE102199402-199605

51968BHOOK, TRANSPORT, REAR LH

main51968-12110iAE102199402-199605

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-12010iAE102199402-199605

9011906355

main90119-06355

9011910465

main90119-10465

9011910480

main90119-10480

9011910681

main90119-10681

9011914022

main90119-14022

9015960323

main90159-60323

9017910180

main90179-10180

9018906006

main90189-06006

9095001392

main90950-01392

91621B0816

main91621-B0816

91629B1225

main91629-B1225

91651B1018

main91651-B1018

91652B0820

main91652-B0820

91661B0820

main91661-B0820

26 parts on this diagram · 1 diagram in section
