V-BELT

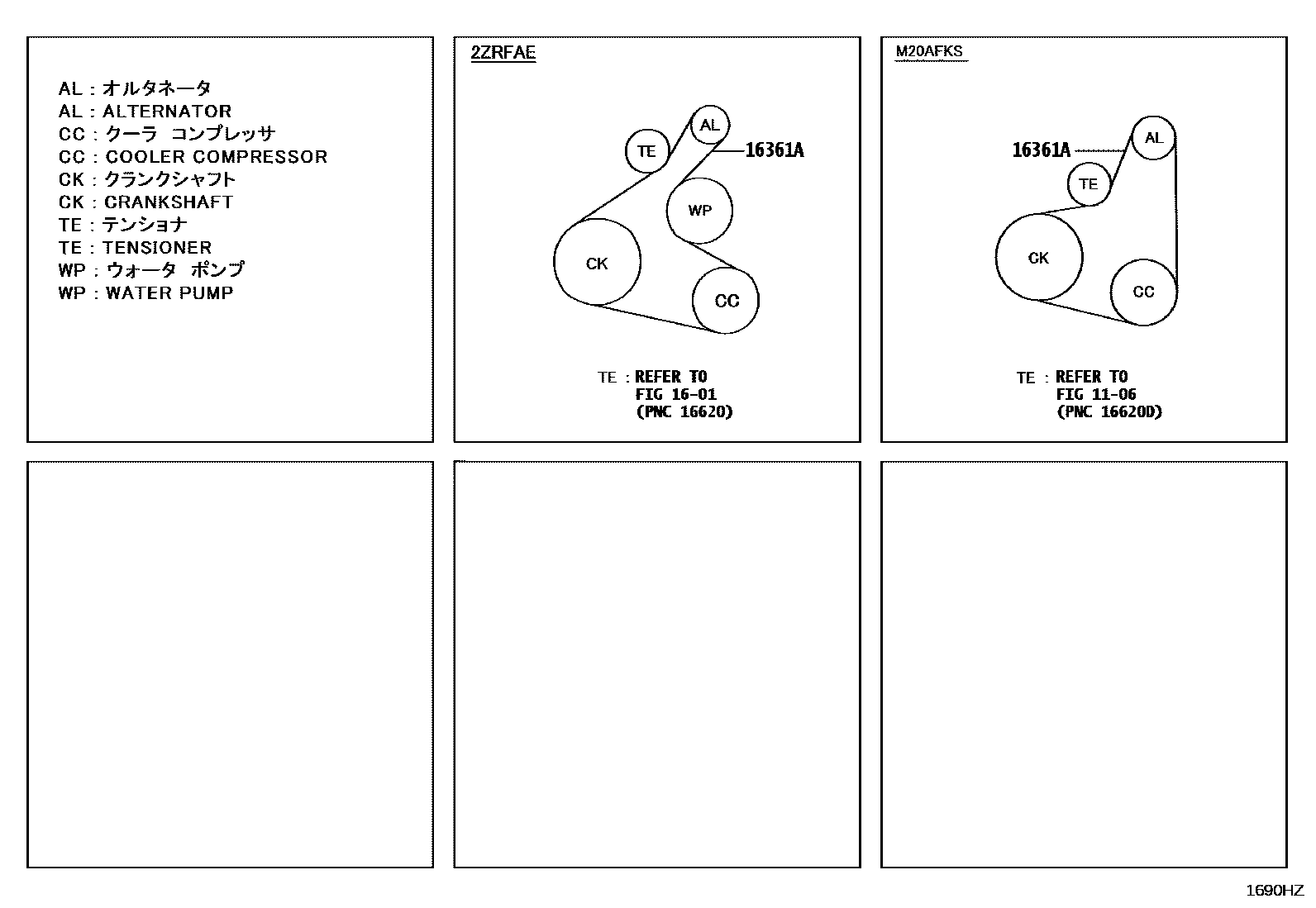

Parts diagram

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02754i202007-202211

(J)

main90916-02789i202309-202410

main90916-A2034i201903-202007

(L)

main90916-A2035i202007-202106

1 parts on this diagram · 1 diagram in section
