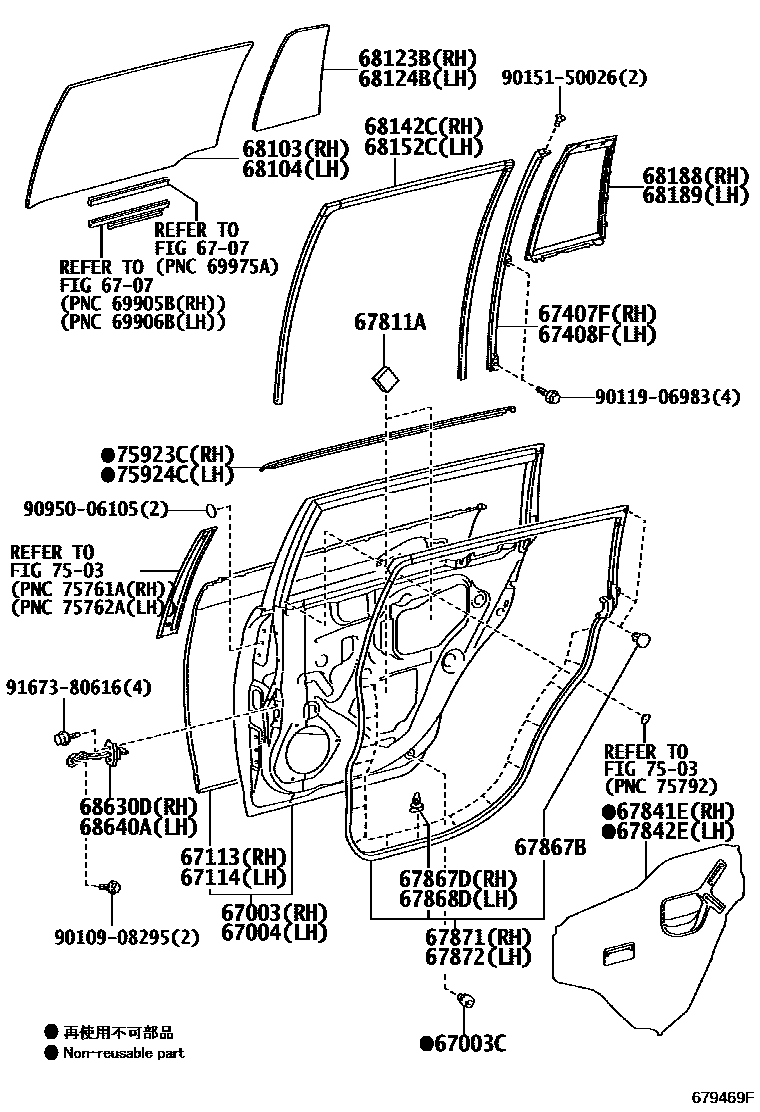

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
6707REAR DOOR WINDOW REGULATOR & HINGE
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67811APAD, REAR DOOR SILENCER
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
REAR QUARTER GLASS-WITH(PRIVACY GLASS)&BACK GLASS-WITH(PRIVACY GLASS)
REAR QUARTER GLASS-WITH(PRIVACY GLASS)&BACK GLASS-WITH(PRIVACY GLASS)
68104GLASS SUB-ASSY, REAR DOOR, LH
REAR QUARTER GLASS-WITH(PRIVACY GLASS)&BACK GLASS-WITH(PRIVACY GLASS)
REAR QUARTER GLASS-WITH(PRIVACY GLASS)&BACK GLASS-WITH(PRIVACY GLASS)
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
REAR QUARTER GLASS-WITH(PRIVACY GLASS)&BACK GLASS-WITH(PRIVACY GLASS)
REAR QUARTER GLASS-WITH(PRIVACY GLASS)&BACK GLASS-WITH(PRIVACY GLASS)
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
REAR QUARTER GLASS-WITH(PRIVACY GLASS)&BACK GLASS-WITH(PRIVACY GLASS)
REAR QUARTER GLASS-WITH(PRIVACY GLASS)&BACK GLASS-WITH(PRIVACY GLASS)
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
7503SIDE MOULDING
75923CTAPE, BLACK OUT, NO.2 RH
75924CTAPE, BLACK OUT, NO.2 LH
9010908295
main90109-08295
9011906983
main90119-06983
9015150026
main90151-50026
9095006105
main90950-06105
9167380616
main91673-80616
34 parts on this diagram · 3 diagrams in section
