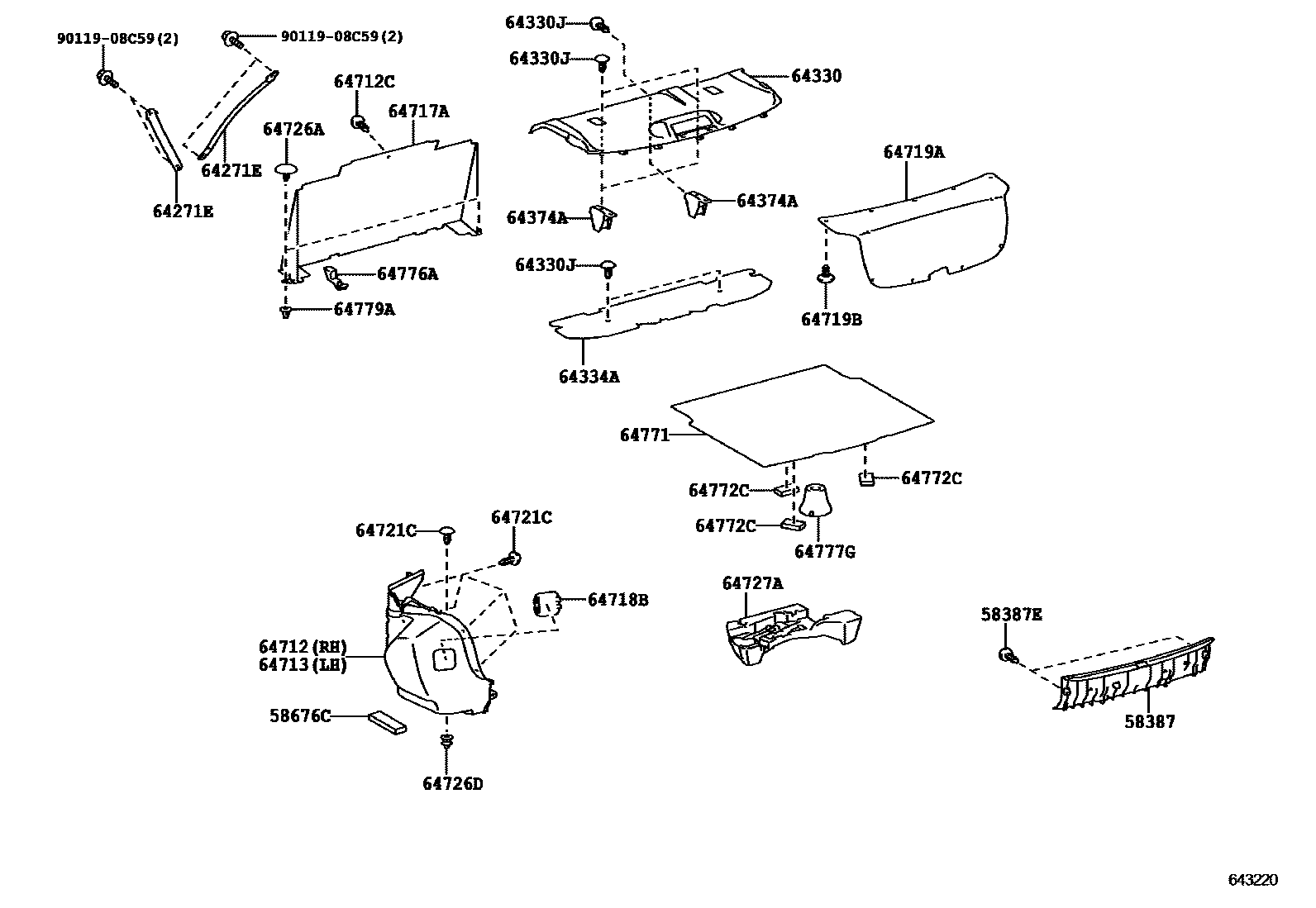

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM2#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
BLACK
BLACK
58676CPAD, REAR FLOOR SILENCER
225 X 64 X 27
225 X 40 X 27
64271EPANEL, ROOM PARTITION
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM2#
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
BLACK,TRIM2#
64334APAD, PACKAGE TRAY TRIM
64374ASUPPORT, PACKAGE TRAY TRIM
64712COVER, LUGGAGE COMPARTMENT TRIM, RH
BLACK,TRIM2#
BLACK,TRIM2#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
BLACK
BLACK
64713COVER, LUGGAGE COMPARTMENT TRIM, LH
BLACK,TRIM2#
BLACK,TRIM2#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM2#
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM2#
BLACK,TRIM2#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
BLACK
BLACK
64721CCLIP(LUGGAGE COMPARTMENT)
BLACK
BLACK
64726ACLIP, LUGGAGE TRIM, REAR
BLACK,TRIM2#
64726DCLIP, LUGGAGE TRIM, REAR
64727APAD, LUGGAGE COMPARTMENT TRIM, INNER
64771COVER, SPARE WHEEL
BLACK,TRIM2#
64772CPAD, SPARE WHEEL COVER
64776ASPACER, TOOL BAG CASE
64777GCUSHION, SPARE WHEEL
64779ASTOPPER, SPARE WHEEL COVER
9011908C59
main90119-08C59
25 parts on this diagram · 1 diagram in section
