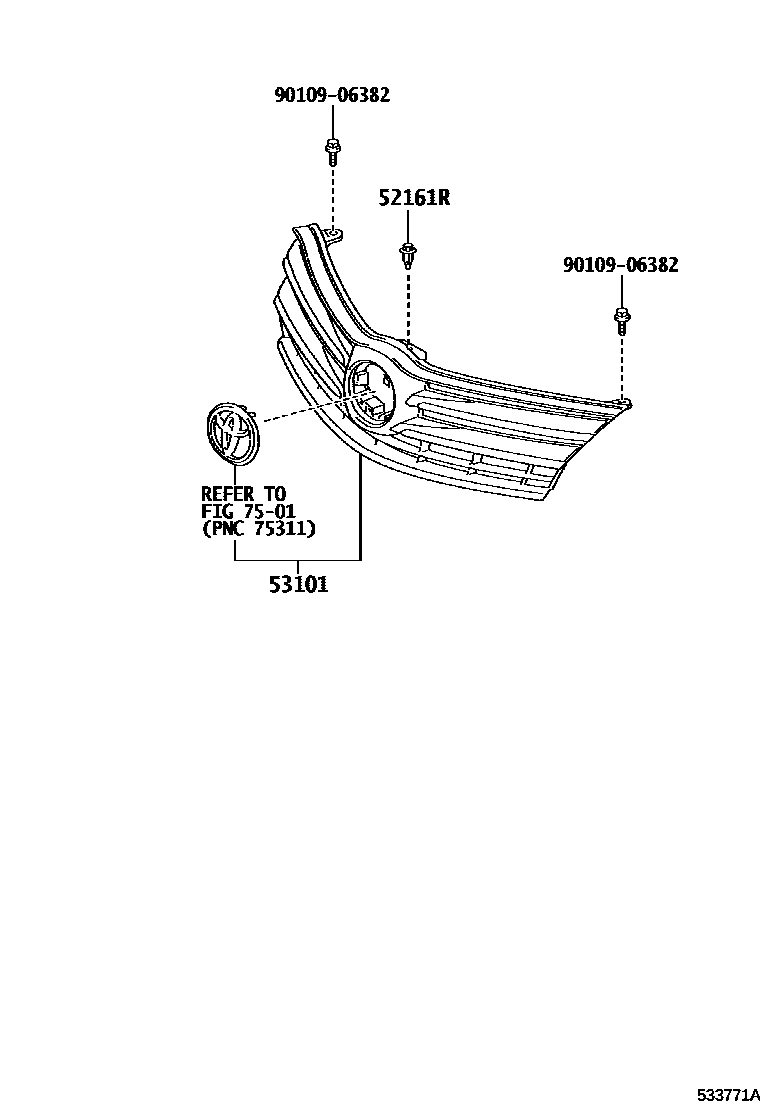

RADIATOR GRILLE

0001 1 0002 1 0003 1 0004 1

52161RPIECE, FRONT BUMPER

main52161-16010iNZE161201204-201503

53101GRILLE SUB-ASSY, RADIATOR

main53101-12C30iNZE161..4D..N201212-201503

NO PAINT REQ.

main53101-12C40iNZE161..E201212-201503

PLATED

main53101-12D00iNRE161..4D201503-201710

PLATED

main53101-12D40iNRE161..4D201710-201908

PLATED

main53101-12D60iNRE161,NZE161..5D201710-201908

PLATED

main53101-13270iNZE161..5D201204-201503

PLATED

main53101-13370iNRE161,NZE161..5D201503-201710

PLATED

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9010906382

main90109-06382

4 parts on this diagram · 4 diagrams in section
