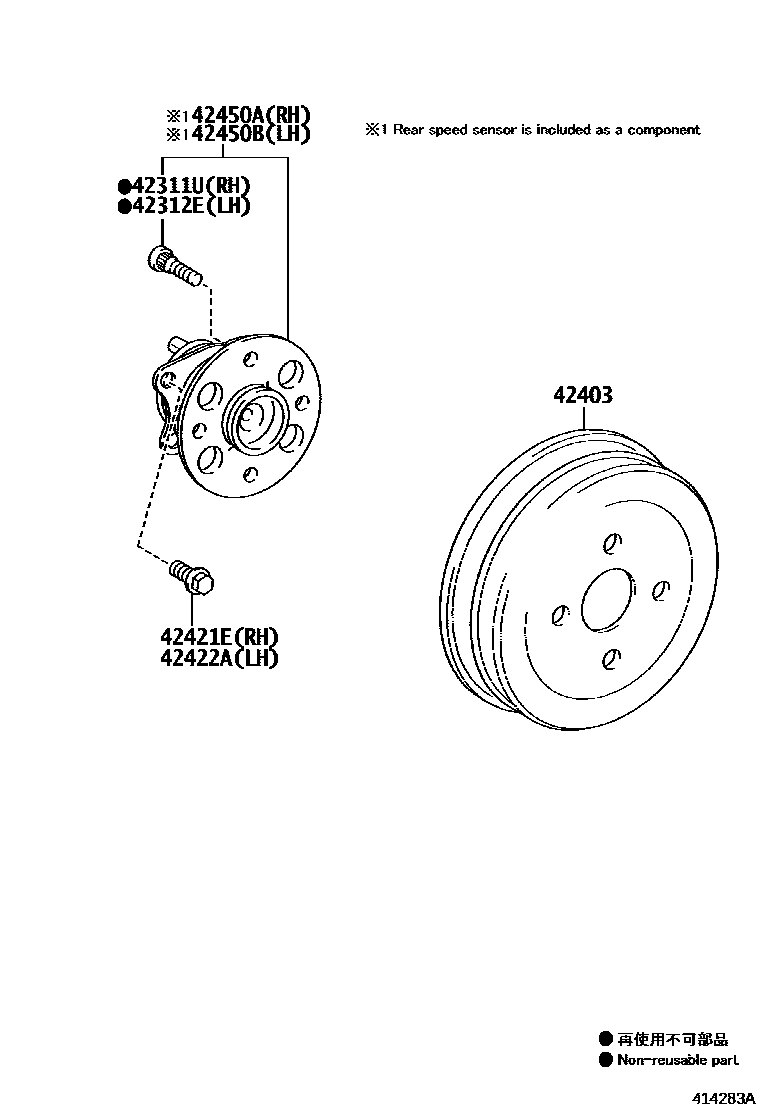

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×4iNZE161201204-201503

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×4iNRE161,NZE161201503-201710

42403DRUM SUB-ASSY, REAR BRAKE

main42431-52070×2iNRE161..4D201710-201908

main42431-52090×2iNRE161,NZE161..5D201710-201908

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350×4iNRE161,NZE161201503-201710

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350×4iNZE161201204-201503

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-52060iNZE161201204-201503

main42450-52061iNRE161,NZE161201701-201710

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-52060iNZE161201204-201503

main42450-52061iNRE161,NZE161201701-201710

7 parts on this diagram · 1 diagram in section
