RADIO RECEIVER & AMPLIFIER & CONDENSER
86120RECEIVER ASSY, RADIO
FUJITSU TEN,ID=12863,AUDIO-AM/FM CD CHANGER 6SPEAKER
FUJITSU TEN,ID=12863,AUDIO-AM/FM CD-CHANGER 6SPEAKER(EXTRA)
FUJITSU TEN,ID=22843,AUDIO-AM/FM CD-CHANGER 6SPEAKER(EXTRA)
FUJITSU TEN,ID=12864,INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER&AUDIO-AM/FM CD CHANGER 6SPEAKER
main86120-12B71supersedes 86120-12E50iCE140,NZE141,ZRE14#,ZZE142..SED..GEN; ZRE14#..GCC201007-201008
FUJITSU TEN,ID=12864,AUDIO-AM/FM CD-CHANGER 6SPEAKER(EXTRA); FUJITSU TEN,ID=12864,INSTRUMENT PANEL CENTER CLUSTER-GRAY METALLIC & SILVER&AUDIO-AM/FM CD-CHANGER 6SPEAKER(EXTRA)
FUJITSU TEN,ID=22844,INSTRUMENT PANEL CENTER CLUSTER-GRAY METALLIC & SILVER&AUDIO-AM/FM CD-CHANGER 6SPEAKER(EXTRA)
MATSUSHITA,ID=53829,AM/FM CD 4SPEAKER WITHOUT(*AUSL)
PANASONIC,ID=52879,AUDIO-AM/FM CD 6SPEAKER(EXTRA)
PANASONIC,ID=52880,INSTRUMENT PANEL CENTER CLUSTER-GRAY METALLIC & SILVER&AUDIO-AM/FM CD 6SPEAKER(EXTRA)
PANASONIC,ID=52881,AUDIO-AM/FM CD 4SPEAKER(EXTRA); PANASONIC,ID=52881,AUDIO-AM/FM CD 6SPEAKER(EXTRA)
FUJITSU TEN,ID=17421,AUDIO-AM/FM CASSETTE 4SPEAKER
PIONEER,ID=P7859,AUDIO-AM/FM CASSETTE CD 4SPEAKER
86120AKNOB, RADIO RECEIVER SWITCH
main90010-24123×2iCE140,NZE141,ZRE14#,ZZE142..SED..GEN; ZRE14#,ZZE142..GEN;CE140,NZE141..LX,XLI201007
AUDIO-AM/FM CD 4SPEAKER(EXTRA); AUDIO-AM/FM CD 6SPEAKER(EXTRA); AUDIO-AM/FM CD-CHANGER 6SPEAKER(EXTRA)
AUDIO-AM/FM CD 6SPEAKER(EXTRA); AUDIO-AM/FM CD-CHANGER 6SPEAKER(EXTRA)
86190CADAPTER ASSY, STEREO JACK, NO.1
AUDIO-AM/FM CD 4SPEAKER(EXTRA); AUDIO-AM/FM CD 6SPEAKER(EXTRA); AUDIO-AM/FM CD-CHANGER 6SPEAKER(EXTRA)
AUDIO-AM/FM CD 6SPEAKER *DA(MALTI)
86203DWIRE, STEREO COMPONENT, NO.1
AUDIO-AM/FM CD 6SPEAKER *DA(MALTI)
86211BRACKET, RADIO, NO.1
86212BRACKET, RADIO, NO.2
86221APANEL, RADIO RECEIVER
AUDIO-AM/FM CASSETTE 4SPEAKER
86221DPANEL, RADIO RECEIVER
AUDIO-AM/FM CASSETTE 4SPEAKER
9015350010
main90153-50010
9167180616
main91671-80616

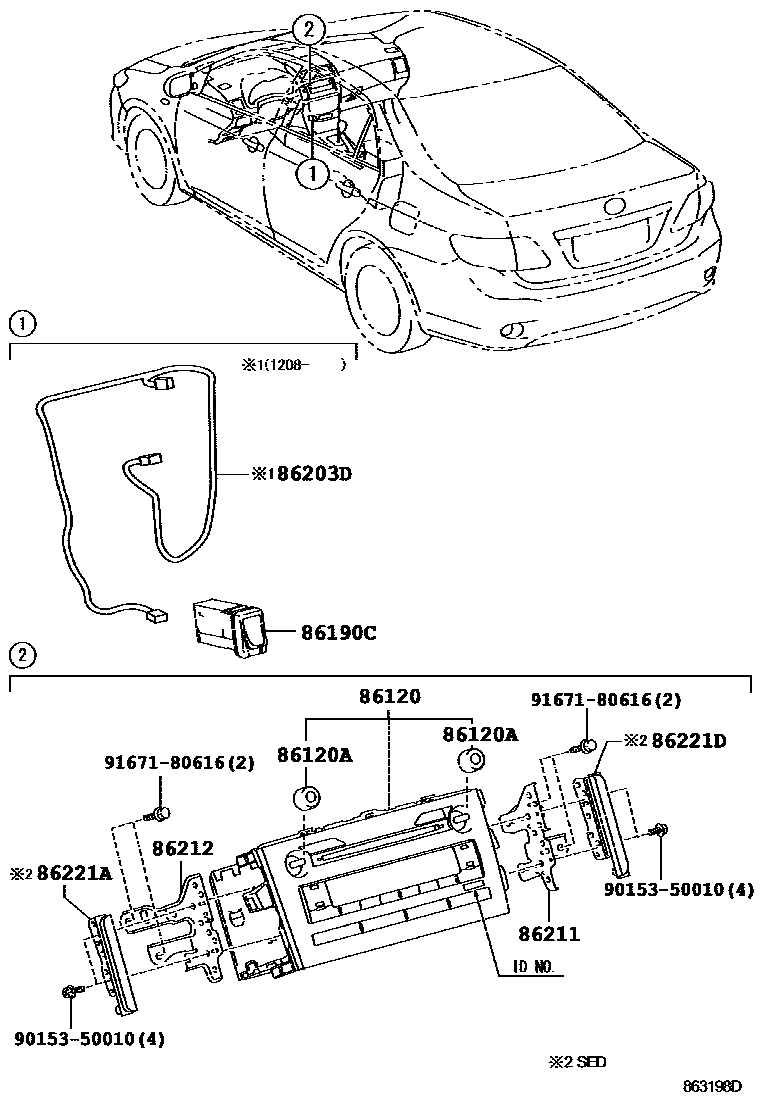

10 parts on this diagram · 4 diagrams in section
