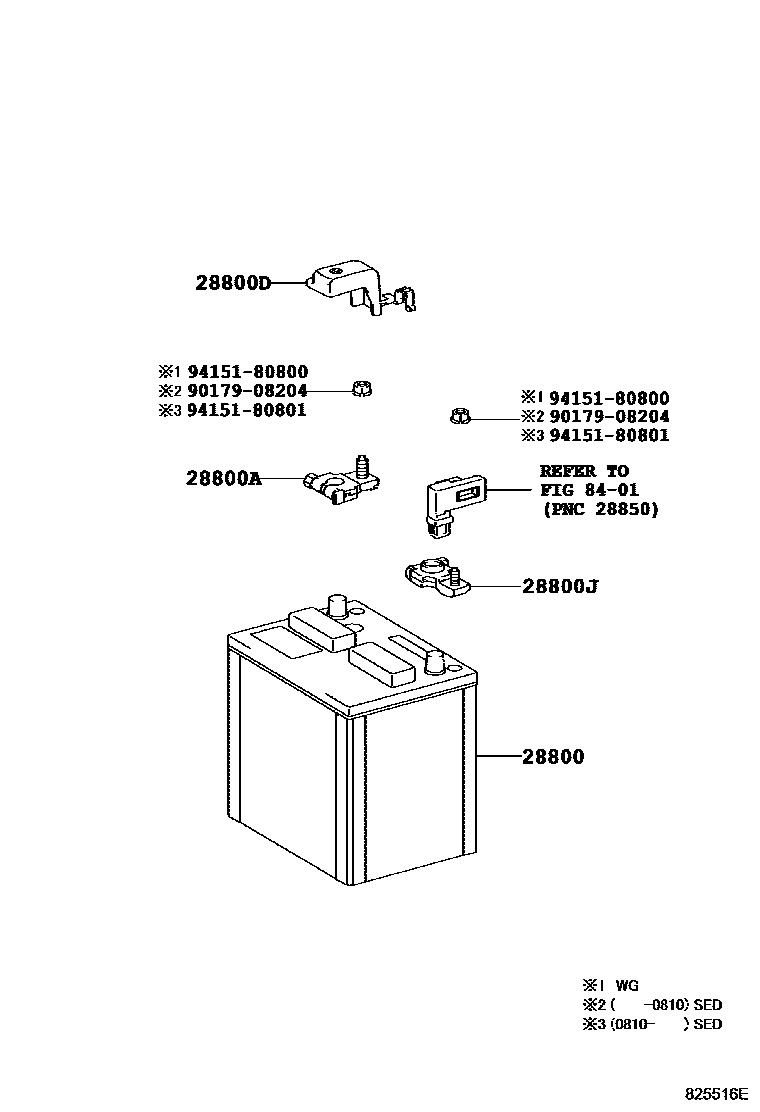

BATTERY & BATTERY CABLE

28800BATTERY

main28800-16081i1NZFE..NZE141..N200704-200810

46B24L,GS

main28800-16111i1NZFE..NZE141..N200704-200810

46B24L,PANASONIC

main28800-16121i1NZFE..NZE141..N200704-200810

46B24L,FURUKAWA

main28800-17121i2C..CE140200708-201007

80D26L,FURUKAWA

main28800-22040i1NZFE,1Z#,2ZRFE..NZE141,ZRE14#,ZZE142..SED201007-201403

46B24L(S)

main28800-28210i2C..CE140201204-201403

80D26L,PANASONIC

main28800-54020i2C..CE140201007-201403

80D26L,YUASA

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i3ZZFE..ZZE141;1ZZFE..ZZE142..GCC;1ZZFE..ZZE142..RHD200708

main90982-05055i1NZFE..NZE141..N200704-200810

main90982-05056i2C..CE140200708-201007

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12490i1NZFE,1Z#,2ZRFE..NZE141,ZRE14#,ZZE142..SED201007

main82821-52060i2C..CE140201007

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070i1ZZFE..ZZE142..LHD..GEN;2C,1NZFE..CE140,NZE141..SED200708-201007

main90982-06071i1NZFE..NZE141..N200704-200810

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017908204

main90179-08204

9415180800

main94151-80800

9415180801

main94151-80801

8 parts on this diagram · 1 diagram in section
