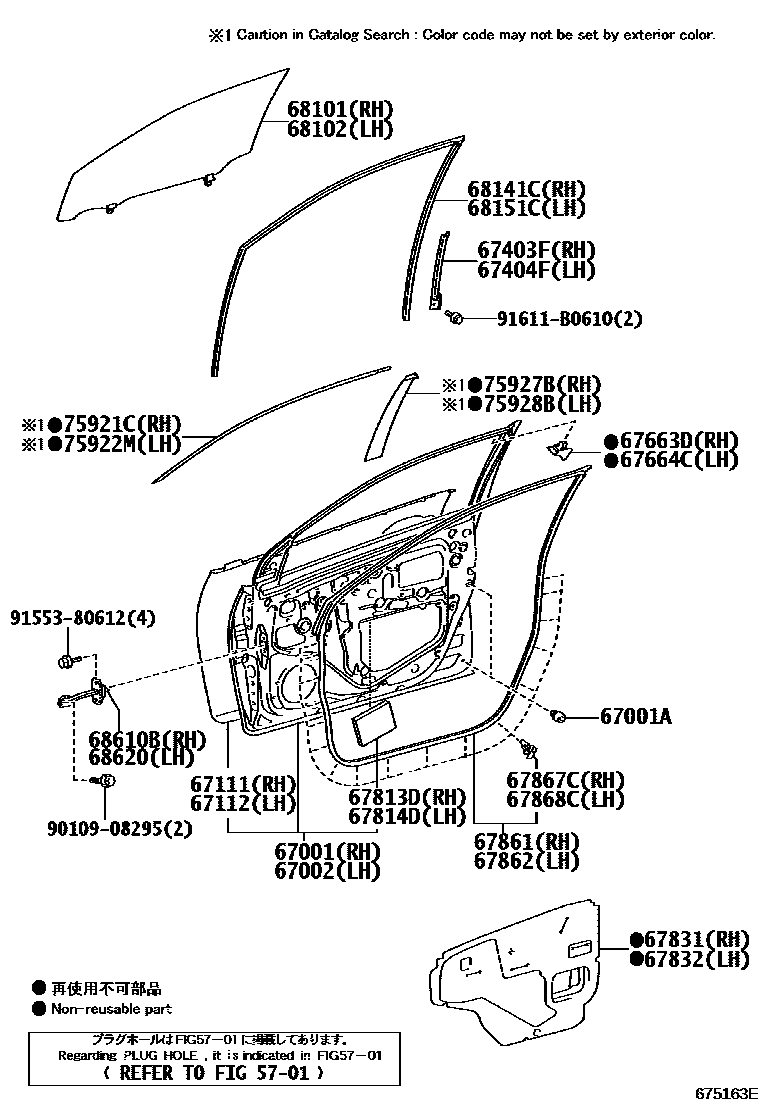

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM

5701HOLE PLUG

→ Go to FIG 57-01

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-12A30iCE140,NZE141,ZZE14#..SED200708-200812

main67001-12A31iCE140,NZE141,ZZE14#..SED200812-200901

main67001-12A40iNZE141..N200810-201204

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×4iCE140,NZE141,ZZE14#..SED200708-200808

main90541-09143×4iZZE141;ZZE142..GCC;ZZE142..RHD200808

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-12A30iCE140,NZE141,ZZE14#..SED200708-200812

main67002-12A31iCE140,NZE141,ZZE14#..SED200812-200901

main67002-12A40iNZE141..N200810-201204

67111PANEL, FRONT DOOR, OUTER RH

main67111-12700iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

main67111-12710iNZE141..N200704-200810

67112PANEL, FRONT DOOR, OUTER LH

main67112-12690iZZE141;ZZE142..GCC;ZZE142..RHD200708

main67112-12700iNZE141..N200810-201204

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-12260iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

main67403-12270iNZE141..N200704-200810

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-12250iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

main67404-12260iNZE141..N200810

67663DGARNISH, DOOR FRAME, RH

main67663-48010iNZE141..N200704-200810

67664CGARNISH, DOOR FRAME, LH

main67664-48010iNZE141..N200704-200810

67813DSHEET, QUARTER PANEL SILENCER, RH

main67817-47010iNZE141..N200704-200810

67814DSHEET, QUARTER PANEL SILENCER, LH

main67817-47010iNZE141..N200704-200810

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-12670iCE140,NZE141,ZRE14#,ZZE142..SED201007-201201

main67831-12671iCE140,NZE141,ZRE14#,ZZE142..SED201202

main67831-12690iNZE141..N200704-200810

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-12450iCE140,NZE141,ZRE14#,ZZE142..SED201007-201201

main67832-12451iCE140,NZE141,ZRE14#,ZZE142..SED201202

main67832-12470iNZE141..N200704-200810

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-12A20iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

main67861-12A30iNZE141..N200704-200810

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-12A20iCE140,NZE141,ZRE14#,ZZE142..SED201007

main67862-12A30iNZE141..N200810

67867CLIP, DOOR WEATHERSTRIP

main90467-04034×2iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×17iNZE141..N200704-200810

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×14iCE140,NZE141,ZRE14#,ZZE142..SED201007

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-12A80iCE140,NZE141,ZZE14#..SED200708-200901

*UVCT,T=3.5,GREEN

main68101-12A81iCE140,NZE141,ZRE14#,ZZE142..SED201007-201109

*UVCT,T=3.5,GREEN

main68101-12A82iCE140,NZE141,ZRE14#,ZZE142..SED201110-201403

*UVCT,T=3.5,GREEN

main68101-12B00iNZE141..N200704-200810

*UVCT,T=3.5,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-12A80iCE140,NZE141,ZZE14#..SED200708-200901

*UVCT,T=3.5,GREEN

main68102-12A81iCE140,NZE141,ZZE14#..SED200902-201007

*UVCT,T=3.5,GREEN

main68102-12A82iCE140,NZE141,ZRE14#,ZZE142..SED201110-201403

*UVCT,T=3.5,GREEN

main68102-12B00iNZE141..N200704-200810

*UVCT,T=3.5,GREEN

68141CRUN, FRONT DOOR GLASS, RH

main68141-12560iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

main68141-12570iNZE141..N200810

68151CRUN, FRONT DOOR GLASS, LH

main68151-12260iCE140,NZE141,ZRE14#,ZZE142..SED201007

main68151-12270iNZE141..N200810

68610BCHECK ASSY, FRONT DOOR, RH

main68610-12210iCE140,NZE141,ZZE14#..SED200708-201004

main68610-12211iZZE142..LHD..GEN;CE140,NZE141..SED201004-201007

main68610-12220iNZE141..N200810-201005

main68610-12221iNZE141..N201005-201204

68620CHECK ASSY, FRONT DOOR, LH

main68610-12210iCE140,NZE141,ZZE14#..SED200708-201004

main68610-12211iZZE142..LHD..GEN;CE140,NZE141..SED201004-201007

main68610-12220iNZE141..N200704-200810

main68610-12221iNZE141..N201005

75921CTAPE, BLACK OUT, NO.1 RH

main75921-12080iZZE14#..XLI..GCC; ZZE142..GLI;ZZE142..XLI..GEN;CE140,NZE141,ZZE141..SED..GEN200708-201007

0 OR 1PIECE,REF.ILL.; BLACK OUT-WITH(DOOR SASH),0 OR 1PIECE,REF.ILL.

main75921-13020iNZE141..N200704-200810

0 OR 1PIECE,REF.ILL.

75922MTAPE, BLACK OUT, NO.1 LH

main75922-12080iZRE142..GLI;ZRE142..XLI..GEN;CE140,NZE141,ZRE141,ZZE142..SED..GEN201007-201403

0 OR 1PIECE,REF.ILL.

main75922-13020iNZE141..N200704-200810

0 OR 1PIECE,REF.ILL.

75927BTAPE, BLACK OUT, NO.4 RH

main75927-13010iNZE141..N200704-200810

0 OR 1PIECE,REF.ILL.

75928BTAPE, BLACK OUT, NO.4 LH

main75928-13010iNZE141..N200704-200810

0 OR 1PIECE,REF.ILL.

9010908295

main90109-08295

9155380612

main91553-80612

91611B0610

main91611-B0610

32 parts on this diagram · 3 diagrams in section
