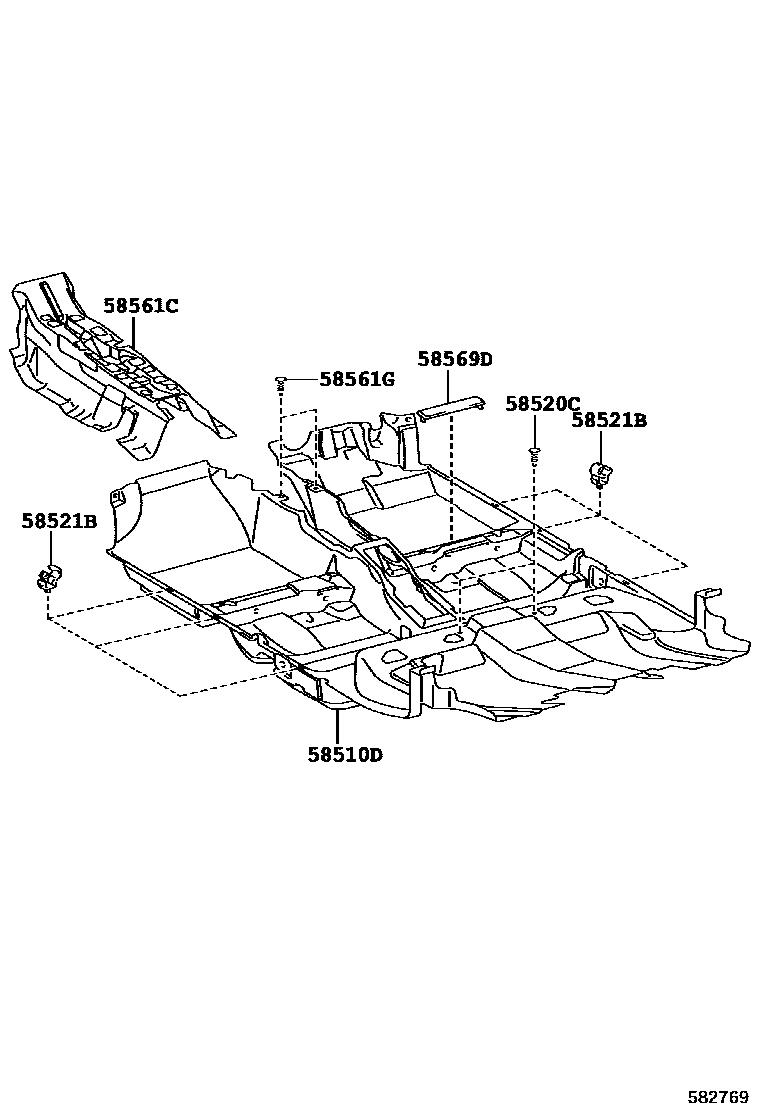

MAT & CARPET

0001 1 0002 1 0003 1

58510DCARPET ASSY, FLOOR, FRONT

main58510-12A60-B1iZZE14#..LHD..4FC200708-201004

DK. GREY,TRIM1#

main58510-12A60-E0iZZE14#..LHD..4FC200708-201004

GREGE,TRIM4#

main58510-12A61-B1iZZE14#..LHD..4FC201004-201007

DK.GRAY,TRIM1#

main58510-12A61-E0iZRE14#,ZZE142..LHD..4FC201007-201403

GREGE,TRIM4#

main58510-12E50-B2iCE140,NZE141,ZZE14#..RHD..SED200708-201007

DK. GREY,TRIM1#

main58510-12E50-E1iCE140,NZE141,ZRE14#..RHD..SED201007-201311

GREGE,TRIM4#

main58510-12E60-B2iCE140,ZZE14#..LHD..5F200708-201004

DK. GREY,TRIM1#

main58510-12E60-E1iCE140,ZZE14#..LHD..5F200708-201004

GREGE,TRIM4#

main58510-12E61-B2iCE140,ZZE14#..LHD..5F201004-201007

DK.GRAY,TRIM1#

main58510-12E61-E1iCE140,ZZE14#..LHD..5F201004-201007

GREGE,TRIM4#

main58510-13A30-B2iNZE141..5F200810-201204

DK. GREY,TRIM1#

main58510-13A30-E1iNZE141..N200704-200810

GREGE,TRIM4#

main58510-13A70-B2iNZE141..CVFC200910-201204

DK. GREY,TRIM1#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-B2×2iZZE142..4FC;ZZE142..5F..XLI;ZRE142..XLI..GCC;CE140,ZRE141..LHD;ZRE142..LHD..6F..GEN;ZRE142..LHD..4FC..GLI201007-201310

DK.GRAY

main90467-05164-C0×2iCE140,ZRE14#,ZZE142..LHD201310-201403

BLACK

main90467-07049-C0×2iNZE141..N200704-200810

BLACK

58521BHOOK, FLOOR CARPET

main58521-12140×6iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

58561CSILENCER, FRONT FLOOR, NO.1

main58561-12060iNZE141..N200704-200810

58561GCLIP(FOR FRONT FLOOR SILENCER)

main90467-05164-B0×2iNZE141..N200810-201204

LT.GRAY

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-12010-B0iCE140,NZE141,ZRE14#,ZZE142..SED201007-201403

DK.GRAY

main58569-12010-E0iNZE141..N200704-200810

GREGE,TRIM4#

6 parts on this diagram · 3 diagrams in section
