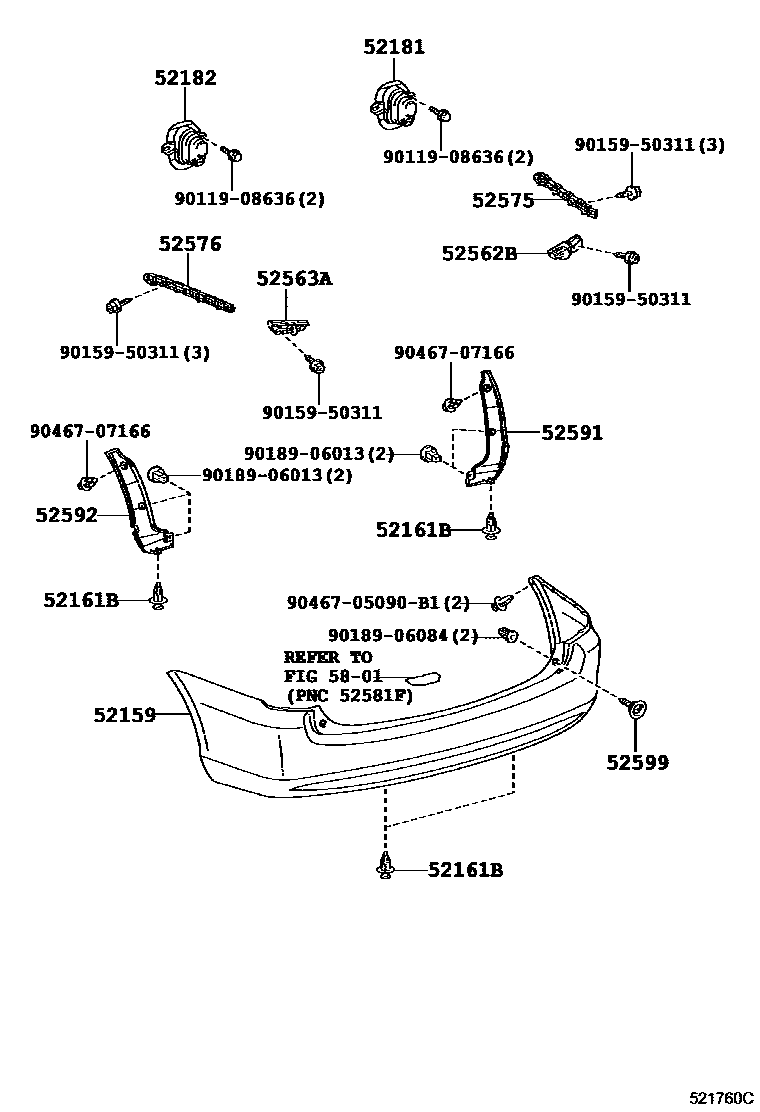

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52159COVER, REAR BUMPER

main52159-12934iCE140,NZE141,ZZE14#..SED200708-201007

PAINT REQ.

main52159-12941iCE140,NZE141,ZRE14#,ZZE142..SED201007-201403

PAINT REQ.

main52159-13918iNZE141..N200704-200810

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010×4iNZE141..N200704-200810

52181ARM, REAR BUMPER, RH

main52181-12440iNZE141..N200704-200810

52182ARM, REAR BUMPER, LH

main52181-12440iNZE141..N200704-200810

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-12120iCE140,NZE141,ZRE14#,ZZE142..SED201007

main52562-12130iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

main52562-13060iNZE141..N200810

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-12040iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

main52563-12090iCE140,NZE141,ZRE14#,ZZE142..SED201007

main52563-13030iNZE141..N200810

52575RETAINER, REAR BUMPER SIDE, RH

main52575-13060iNZE141..N200810

52576RETAINER, REAR BUMPER SIDE, LH

main52576-13060iNZE141..N200704-200810

52591SEAL, REAR BUMPER SIDE, RH

main52591-12210iNZE141..N200810

main52591-12230iZZE141;ZZE142..GCC;ZZE142..RHD200708

52592SEAL, REAR BUMPER SIDE, LH

main52592-12130iNZE141..N200704-200810

main52592-12150iZZE141;ZZE142..GCC;ZZE142..RHD200708

52599STOPPER, REAR BUMPER, UPPER

main52599-68030×2iNZE141..N200704-200810

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9011908636

main90119-08636

9015950311

main90159-50311

9018906013

main90189-06013

9018906084

main90189-06084

9046705090B1

main90467-05090B1

9046707166

main90467-07166

18 parts on this diagram · 3 diagrams in section
