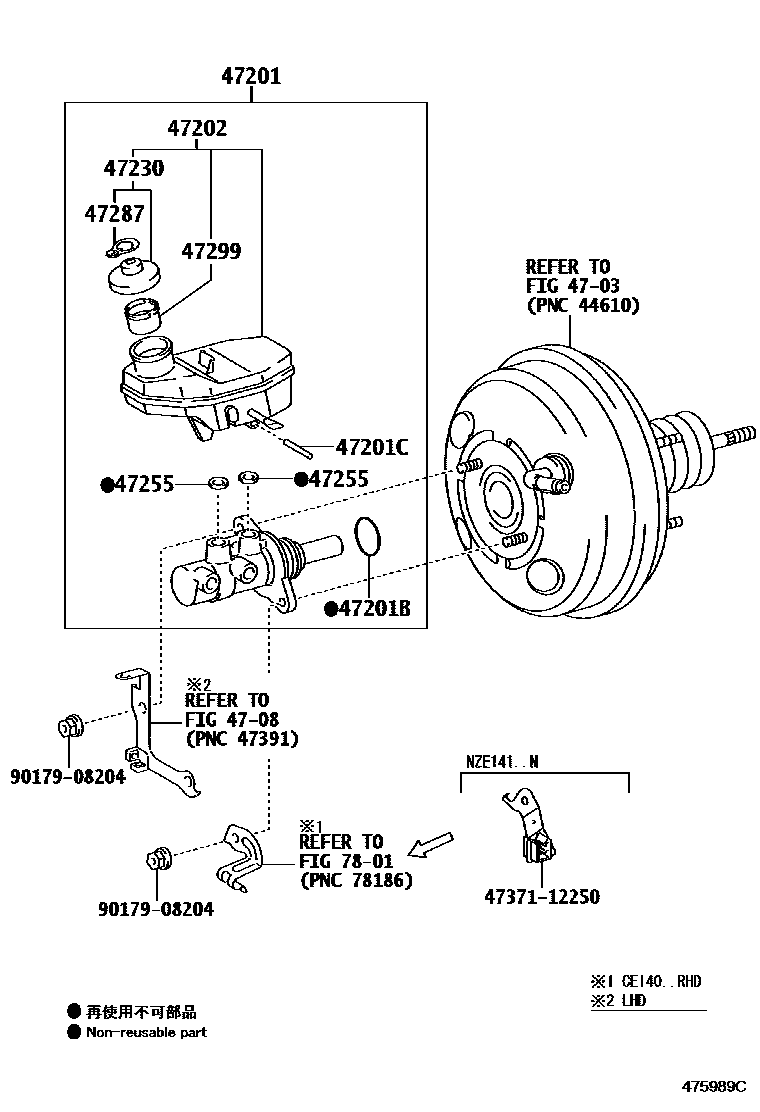

BRAKE MASTER CYLINDER

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-12A80iCE140,NZE141,ZZE14#..RHD..SED200708-201007

main47201-12B20iCE140,ZZE14#..LHD200708-201007

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iZZE141;ZZE142..GCC;ZZE142..RHD200708

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iNZE141..N200704-200810

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-12210iNZE141..N200810-201204

main47220-12230iCE140,ZRE14#,ZZE142..LHD201007-201403

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iNZE141..N200704-200810

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001×2iNZE141..N200704-200810

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iNZE141..N200704-200810

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iNZE141..N200704-200810

7801ACCELERATOR LINK

→ Go to FIG 78-01

4737112250BRACKET, CONNECTOR

main47371-12250

9017908204

main90179-08204

13 parts on this diagram · 1 diagram in section
