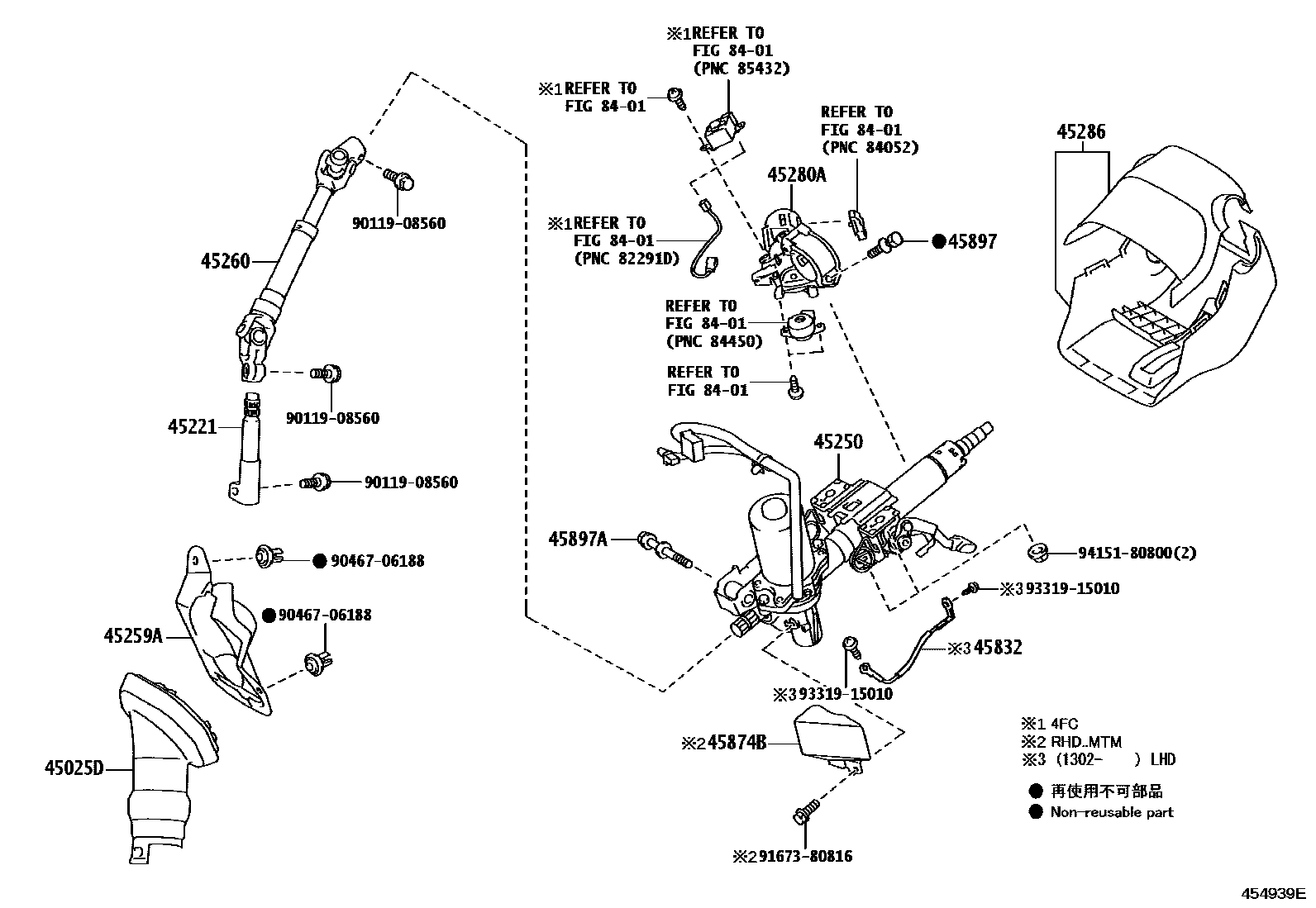

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12250iZZE141..LHD;ZZE142..GCC200708

main45025-12310iCE140,NZE141,ZZE14#..RHD..SED200708-200802

main45025-12311iCE140,NZE141,ZRE14#..RHD..SED201007-201311

45221SHAFT, STEERING INTERMEDIATE

main45221-12350iNZE141..N200704-200810

45250COLUMN ASSY, STEERING

main45250-12B51iCE140,NZE141,ZZE14#..RHD..SED200708-200712

main45250-12B52iNZE141..N200903-201204

main45250-12C41iCE140,ZZE14#..LHD200708-200712

main45250-12C42iCE140,ZRE14#,ZZE142..LHD201007

main45250-12D20iNZE141200704-200707

main45250-12D21iNZE141..N200708-200712

main45250-12D22iNZE141..N200810-200902

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-12080iNZE141..N200704-200810

main45259-12100iCE140,ZRE14#,ZZE142..LHD201007

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-12590iZZE14#..RHD200708

main45260-12620iCE140,ZZE142..LHD..GEN200708-201007

main45260-12780iCE140,ZRE14#,ZZE142..LHD..GEN201302

STEERING-WITH(ELECTRIC POWER STEERING)

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-42130iNZE141,ZZE14#..4FC200708-201007

main45280-42140iCE140,ZRE14#,ZZE142..MTM201007-201403

45286COVER, STEERING COLUMN

main45286-12977-B0iCE140,NZE141,ZRE14#,ZZE142201209

DK.GRAY,TRIM1#,4#

main45286-12982-B0iNZE141..N200810-201204

DK.GRAY,TRIM1#

main45286-12982-E0iNZE141..N200704-200810

ASH BROWN,TRIM4#

main45286-12986-B0iCE140,NZE141,ZRE14#,ZZE142..SED201007-201209

DK.GRAY,TRIM1#,4#

main45286-12986-B1iCE140,NZE141,ZZE14#..SED200708-201007

MD.GRAY,TRIM1#

main45286-12986-E0iCE140,NZE141,ZZE14#..SED200708-201007

ASH BROWN,TRIM4#

45832CABLE, TILT STEERING SUPPORT BOND

main45832-21010iCE140,ZRE14#,ZZE142..LHD201302

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-12100iNZE141..N200704-200810

45897BOLT, STEERING LOCK SET

main45897-12020iNZE141..N200704-200810

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iNZE141..N200704-200810

main90119-10981iCE140,NZE141,ZRE14#,ZZE142201210

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908560

main90119-08560

9046706188

main90467-06188

9167380816

main91673-80816

9331915010

main93319-15010

9415180800

main94151-80800

17 parts on this diagram · 1 diagram in section
