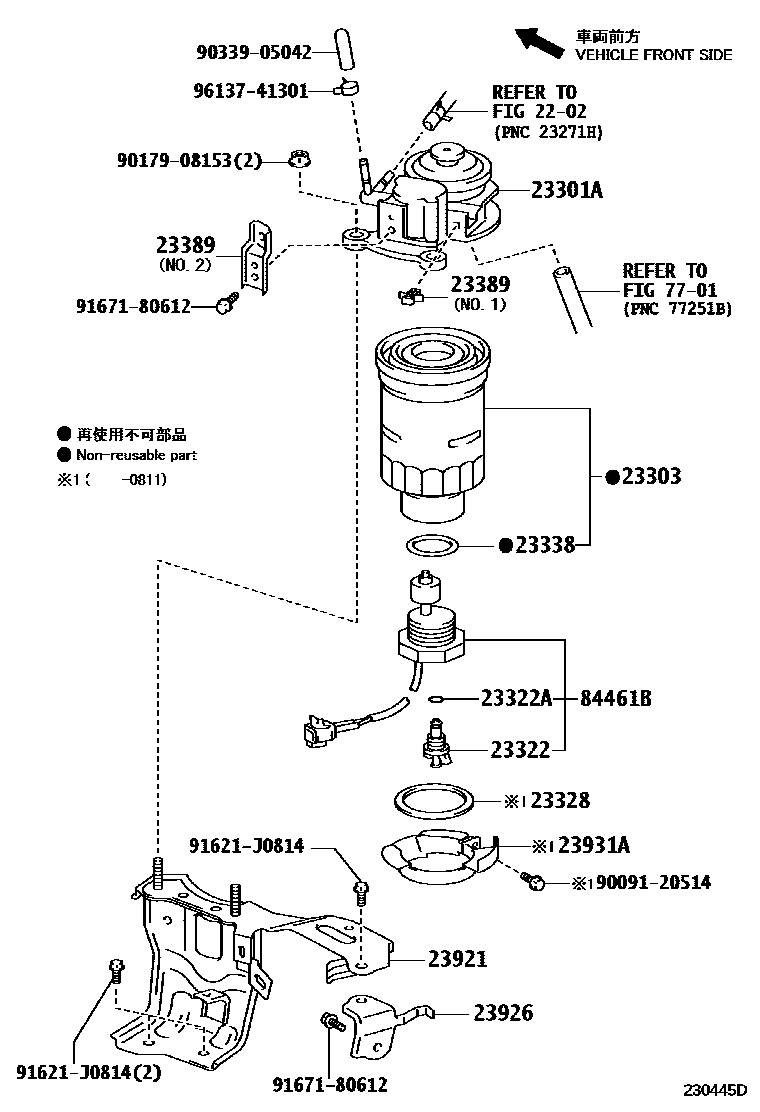

FUEL FILTER

2202INJECTION PUMP ASSEMBLY

→ Go to FIG 22-02

23301ACAP ASSY, FUEL FILTER

main23380-64570i2C..CE140200708-200811

main23380-64571i2C..CE140200811-201007

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-26140i2C..CE140200708-201007

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i2C..CE140200708-201007

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2C..CE140200708-201007

23328GASKET(FOR FUEL FILTER)

main23385-30160i2C..CE140200708-200811

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2C..CE140200708-201007

23389CLAMP, FUEL FILTER

main23389-27130i2C..CE140200708-201007

NO.1

main23389-64570i2C..CE140200708-201007

NO.2

23921SUPPORT, FUEL FILTER

main23904-64040i2C..CE140200708-201007

23926STAY, FUEL FILTER SUPPORT, NO.2

main23926-64010i2C..CE140200708-200810

main23926-64011i2C..CE140200811-201007

23931ACOVER, FUEL FILTER

main23931-26010i2C..CE140200708-200811

7701FUEL TANK & TUBE

→ Go to FIG 77-01

84461BSWITCH, LEVEL WARNING

main84461-60080iCE140200708-201007

main84461-60081iCE140201110-201403

9009120514

main90091-20514

9017908153

main90179-08153

9033905042

main90339-05042

91621J0814

main91621-J0814

9167180612

main91671-80612

9613741301

main96137-41301

19 parts on this diagram · 1 diagram in section
