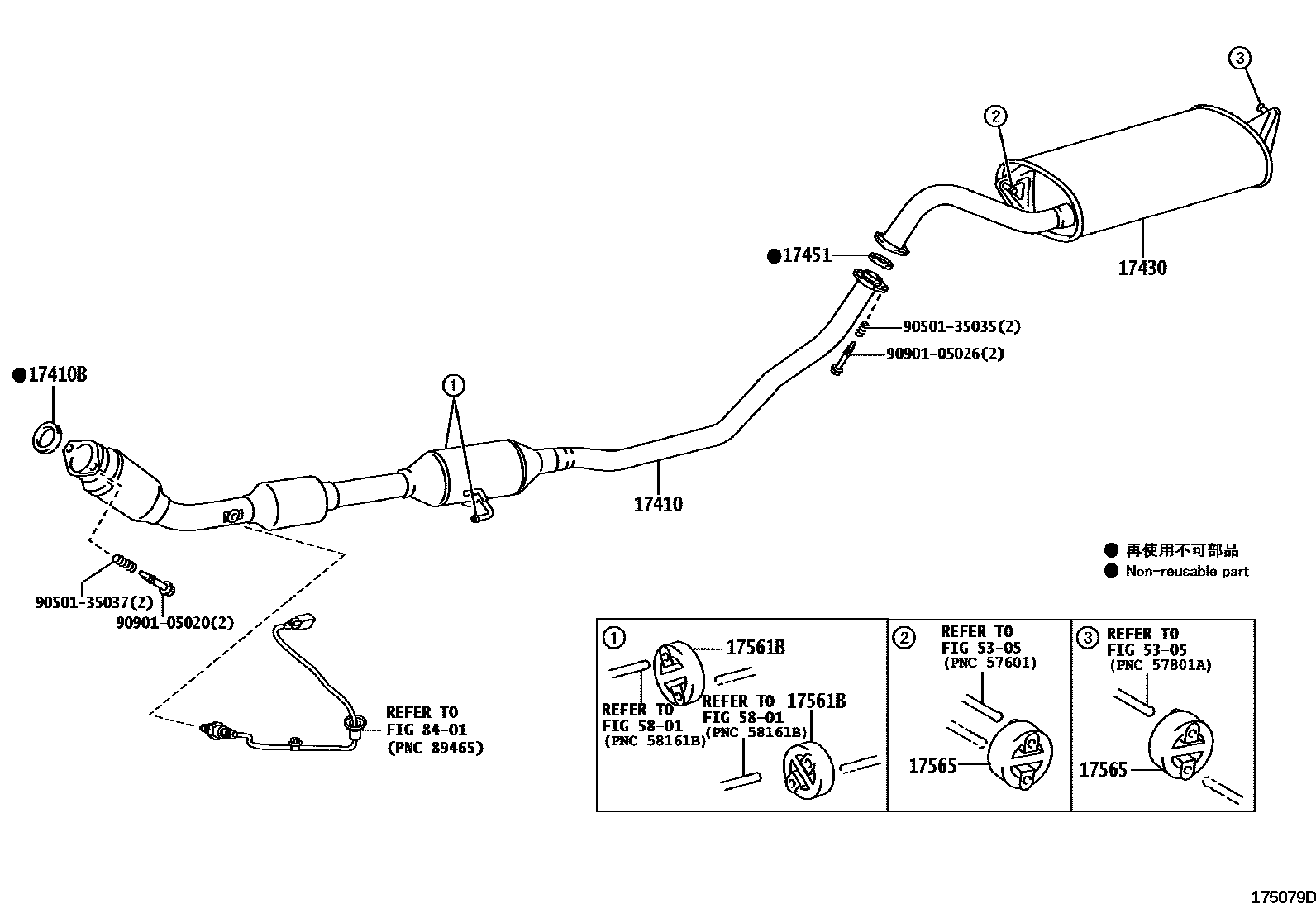

EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-21780i1NZFE..NZE141..LX201007-201311

main17410-21790i1NZFE..NZE141..N200810-200909

main17410-21A20i1NZFE..NZE141..N200910-201204

main17410-22630i1ZZFE,3ZZFE..ZZE14#200708-201007

main17410-22650i1ZZFE..ZZE142201007-201311

main17410-37410i1ZRFE,2ZRFE..ZRE14#201007-201403

main17410-64A00i2C..CE140201007-201403

17410BGASKET, EXHAUST PIPE

main17451-21070i1NZFE..NZE141..N200704-200810

main17451-22070i1ZZFE..ZZE142201007-201311

main17451-28040i1ZRFE,2ZRFE..ZRE14#201007

main90917-06080i2C..CE140201007

17430PIPE ASSY, EXHAUST, TAIL

main17430-21700i1NZFE..NZE141..N200704-200810

main17430-21730i3ZZFE..ZZE141;1ZZFE..ZZE142..GCC;1ZZFE..ZZE142..RHD200708

17451GASKET, EXHAUST PIPE

main17451-23040i1NZFE..NZE141200704-200707

main17451-23041i1NZFE..NZE141..N200708-200810

main17451-23042i1NZFE..NZE141..N; 2C,1NZFE,1Z#,2ZRFE..CE140,NZE141,ZRE14#,ZZE142..SED201010

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-22030×2i1NZFE..NZE141..N200704-200810

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22040×2i1NZFE..NZE141..N200704-200810

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

13 parts on this diagram · 3 diagrams in section
