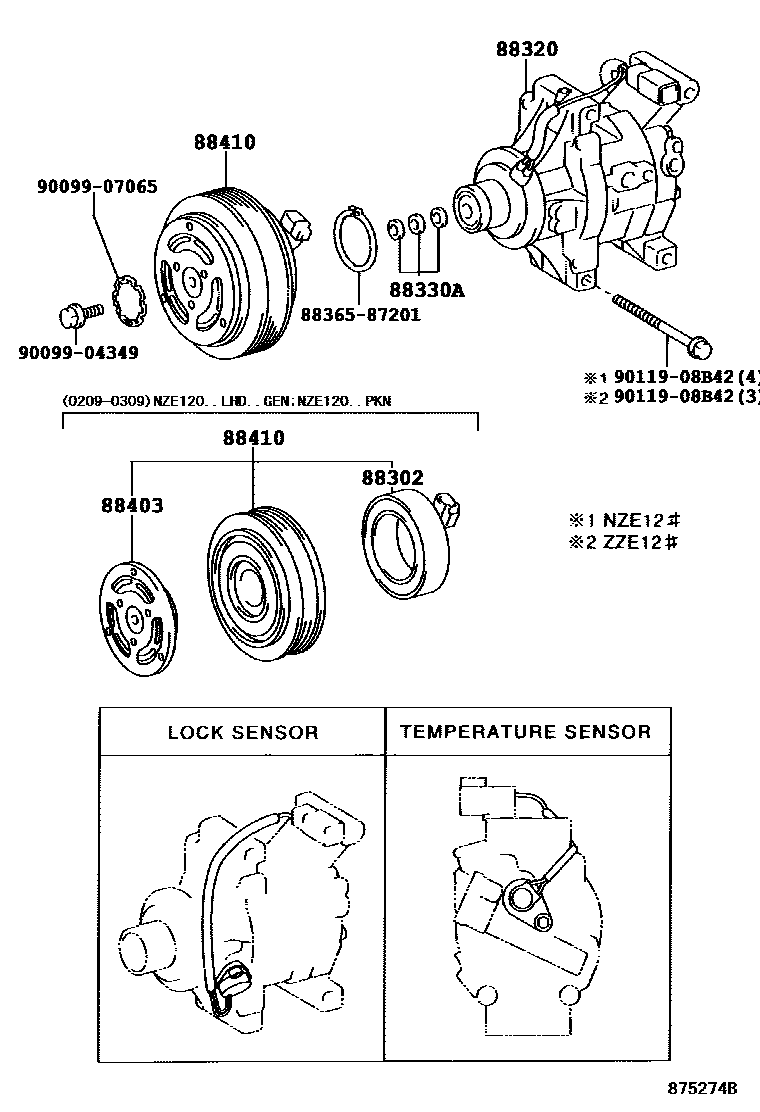

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-1A050iNZE120..LHD..GEN200209-200308

main99411-1A050iNZE120..LHD200110-200209

88320COMPRESSOR ASSY, COOLER

main88320-1A480iNZE12#..GEN200008-200103

main88320-1A481iNZE120..PKN;NZE120..LHD..GEN200309-200507

main88320-1A490iZZE12#..GEN200008-200103

REFER TO ILLUSTRATION : W(LOCK SENSOR)

main88320-1A491iZZE12#..ARL,PKN;ZZE122..LHD..GEN; ZZE121..GEN;ZZE122..RHD..GEN200309-200507

REFER TO ILLUSTRATION : W(LOCK SENSOR)

main88320-1A500iNZE120..LHD200008-200103

REFER TO ILLUSTRATION : W(TEMPERATURE SENSOR)

main88320-1A501iNZE120..GCC200406

REFER TO ILLUSTRATION : W(TEMPERATURE SENSOR)

main88320-1A510iZZE122200008-200103

REFER TO ILLUSTRATION : W(TEMPERATURE SENSOR & LOCK SENSOR)

main88320-1A511iZZE122..GCC200406

REFER TO ILLUSTRATION : W(TEMPERATURE SENSOR & LOCK SENSOR)

main88320-1A531iCE120..GEN200308-200404

main88320-1A550iNZE120..LHD..GEN200209-200310

DEALER OPTION

main88320-1A570iZZE122..ARL; ZZE122..LHD..GEN200209-200310

DEALER OPTION

main88320-1A590iCE120..GEN200209-200308

main88320-1A610iNZE120..LHD..GEN200209-200310

REFER TO ILLUSTRATION : W(TEMPERATURE SENSOR)

main88320-1A630iZZE122..LHD..GEN200209-200404

REFER TO ILLUSTRATION : W(TEMPERATURE SENSOR & LOCK SENSOR),DEALER OPTION

88330AWASHER (FOR MAGNET CLUTCH)

main88318-87704iNZE12#..GEN200209-200308

T=0.1

main88318-87705iNZE120..LHD..GEN200308-200404

DEALER OPTION,T=0.3

main88318-87706iNZE12#..RHD..GEN200308-200310

DEALER OPTION,T=0.5

main88335-14020iNZE120..GCC;CE120,ZZE12#;NZE120..RHD..GEN200008-200507

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-1A020iNZE12#..GEN,PKN200107-200309

88410CLUTCH ASSY, MAGNET

main88410-1A210iNZE12#200008-200209

main88410-1A220iZZE12#200008-200209

main88410-1A230iCE120200110-200209

main88410-1A260iZZE12#..GEN; ZZE121..MTM..XLI;ZZE122..LHD..GEN; ZZE122..ARL200209-200310

DEALER OPTION

main88410-1A270iCE120..GEN; CE120..LHD200209-200310

DEALER OPTION

main88410-1A290iZZE121..MTM..XLI;ZZE122..LHD..GEN; ZZE122..ARL200310-200404

DEALER OPTION

main88410-1A310iCE120..LHD200310-200404

DEALER OPTION

main88410-52140iNZE12#..GCC,GEN; NZE120..LHD..GEN200209-200308

HOT AREA SPEC

main88410-52141iNZE12#..GEN; NZE120..LHD..GEN200209-200310

DEALER OPTION

main88410-52230iNZE120..PKN200507

8836587201RING, SNAP

main88365-87201

9009904349

main90099-04349

9009907065

main90099-07065

9011908B42

main90119-08B42

9 parts on this diagram · 2 diagrams in section
