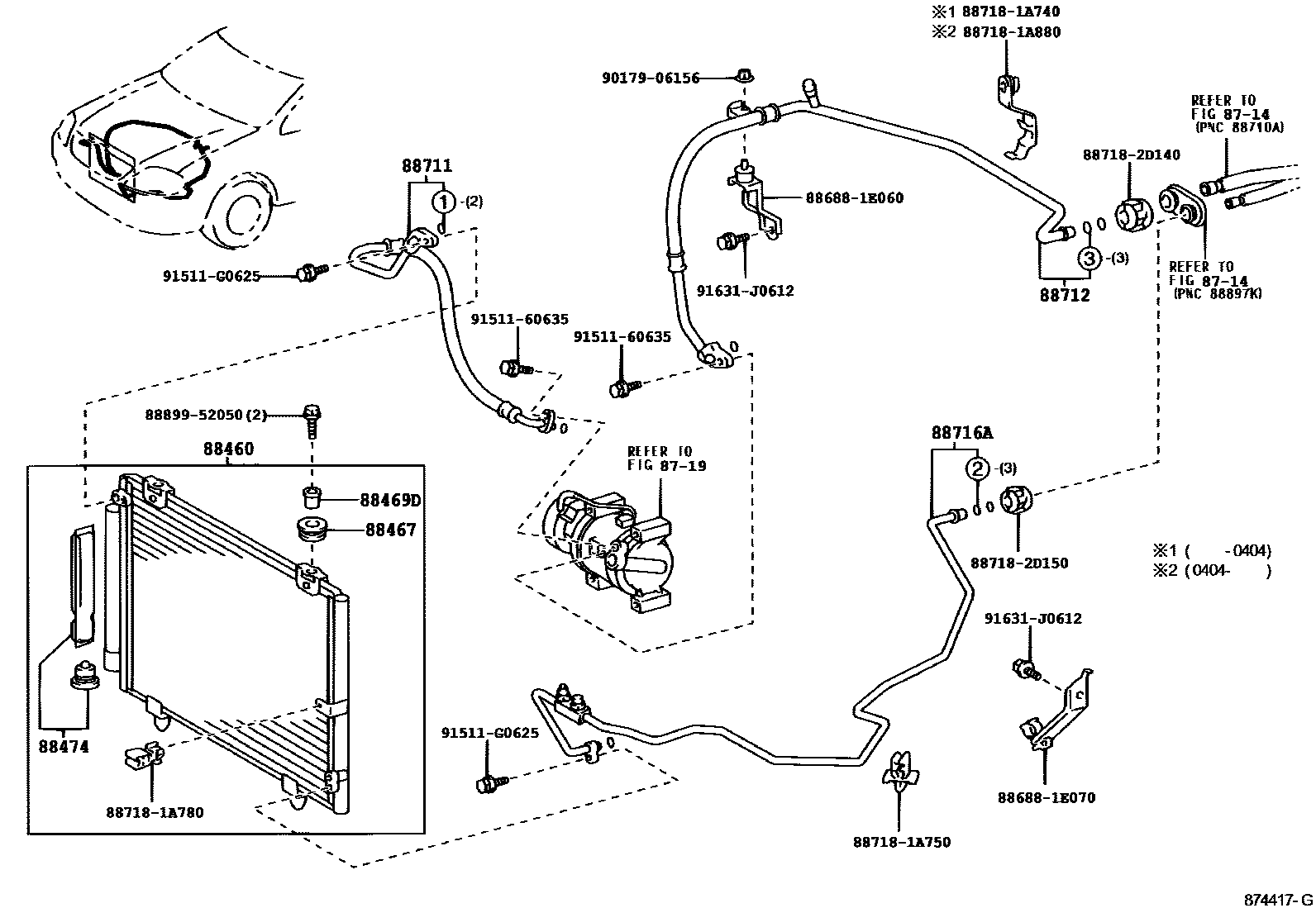

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1MAKER OPTION 0002 1DEALER OPTION 0003 1MAKER OPTION 0004 1 0005 1DEALER OPTION 0006 1O-RING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88460CONDENSER ASSY, COOLER

main88450-12210iCE120,ZZE121..PKN200202-200209

main88450-12211iZZE122..RHD..MTM;CE120,ZZE121..RHD200209-200507

FIN PITCH=3.6

main88450-12230iNZE120,ZZE12#..LHD200008-200207

main88450-12231iNZE120,ZZE122..LHD..GEN; ZZE121..LHD;NZE120,ZZE122..GCC200209-200404

MAKER OPTION

main88450-12240iNZE120..RHD..GEN; NZE121;ZZE122..RHD..ATM..(GLI,ULT,XLI)200008-200209

FIN PITCH=2.8

main88450-12241iNZE120..PKN200507

main88450-13030iCE120..LHD200110-200207

MAKER OPTION

main88450-13031iCE120..LHD200404

MAKER OPTION

main88460-12540iCE120..RHD..GEN200110-200209

DEALER OPTION

main88460-12541iCE120..RHD..GEN200209-200310

DEALER OPTION,FIN PITCH=3.6

main88460-12550iNZE120,ZZE12#..LHD..GEN200110-200209

DEALER OPTION

main88460-12551iNZE120,ZZE122..LHD..GEN; NZE120..LHD..GEN200209-200404

DEALER OPTION

main88460-12560iNZE121..LX200204-200209

DEALER OPTION

main88460-12561iNZE120..RHD..GLI..GEN; NZE121;NZE120..RHD..XLI..GEN200209-200310

DEALER OPTION,FIN PITCH=2.8; FIN PITCH=2.8

main88460-13020iCE120..LHD200110-200209

DEALER OPTION

main88460-13021iCE120..LHD200404

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12180×2iCE120,NZE12#,ZZE12#..GCC,GEN; NZE121..GLI;ZZE122..LHD..MTM;ZZE122..LHD..ATM..GEN;CE120,NZE120,ZZE121..LHD;ZZE122..ATM..(GLI,ULT,XLI)..(ARL,GCC); ZZE122..CONQ;ZZE122..MTM..ULT200209-200404

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-52010×2iNZE121200008-200110

88474DRYER, COOLER

main88474-17010iCE120,NZE12#,ZZE12#..GCC,GEN; CE120,NZE120,ZZE12#..LHD200209-200404

MAKER OPTION

main88474-47010iNZE121..GLI;CE120,NZE120,ZZE12#..GCC,PKN; NZE121..LX;CE120,NZE120,ZZE12#..ARL,GEN200008-200209

MAKER OPTION

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-12530iNZE120..LHD..GEN200008-200210

main88703-12540iZZE122..PKN200507

main88703-12550iCE120..PKN200507

main88703-12580iZZE122..ARL200210-200404

DEALER OPTION

main88703-12620iNZE12#..GCC,GEN200209-200404

MAKER OPTION

main88703-12630iZZE122..ARL;ZZE122..LHD..GEN200210-200404

MAKER OPTION

main88703-12640iCE120..GEN200209-200404

MAKER OPTION

main88703-12680iCE120..GEN; CE120..LHD200209-200404

DEALER OPTION

main88703-12690iZZE12#..RHD..GEN200404-200708

main88703-12700iNZE12#..GEN; NZE120..LHD..GEN200209-200404

DEALER OPTION

main88703-12760iNZE12#..GCC,GEN200404-200608

MAKER OPTION

main88703-12761iNZE12#..GCC,GEN200609-200708

MAKER OPTION

main88703-12770iZZE12#..ARL,GCC,GEN200404-200608

MAKER OPTION

main88703-12771iZZE12#..ARL,GCC,GEN200609-200708

MAKER OPTION

main88703-12790iZZE122..ARL200404-200406

main88703-12800iCE120..LHD; CE120..RHD..GEN200404-200407

MAKER OPTION

main88703-12801iCE120..GEN200408-200608

main88703-12802iCE120..GEN200609-200708

main88703-12810iCE120..GEN200404-200708

DEALER OPTION

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-12810iNZE120..PKN200507

main88704-12820iZZE122..PKN200507

main88704-12830iCE120..RHD..GEN200404-200608

MAKER OPTION

main88704-12831iCE120..PKN200609

main88704-12840iNZE120..LHD200008-200404

main88704-12850iZZE12#..LHD..GEN200511-200708

main88704-1A010iCE120..LHD200209-200404

main88704-1A130iNZE12#..RHD..GEN200404-200608

MAKER OPTION

main88704-1A131iNZE12#..RHD..GEN200609-200708

MAKER OPTION

main88704-1A140iZZE12#..RHD..(ARL,GEN)200404-200608

MAKER OPTION

main88704-1A141iZZE12#..RHD..(ARL,GEN)200609-200708

MAKER OPTION

main88704-1A150iNZE120..LHD200404-200608

MAKER OPTION

main88704-1A151iNZE120..LHD200609-200708

MAKER OPTION

main88704-1A160iZZE12#..LHD200404-200608

MAKER OPTION

main88704-1A161iZZE12#..LHD200609-200708

MAKER OPTION

main88704-1A170iCE120..LHD200404-200608

MAKER OPTION

main88704-1A171iCE120..LHD200609-200708

MAKER OPTION

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-12510iCE120,NZE120,ZZE121..PKN200202-200507

main88710-12511iCE120,NZE12#,ZZE12#..RHD..(ARL,GEN)200609-200708

MAKER OPTION

main88710-12530iNZE120,ZZE122..LHD200008-200110

main88710-12531iCE120,NZE120,ZZE12#..LHD200110-200401

MAKER OPTION

main88710-12532iCE120,NZE120,ZZE12#..LHD200609-200708

MAKER OPTION

main88710-12570iNZE121..LX200204-200209

DEALER OPTION

main88710-12580iCE120,NZE120,ZZE122..LHD..GEN; CE120,NZE120..LHD..GEN200209-200404

DEALER OPTION

main88710-12750iZZE122..ARL200404-200406

886881E060BRACKET, COOLER DIAPHRAGM

main88688-1E060

886881E070BRACKET, COOLER DIAPHRAGM

main88688-1E070

887181A740PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A740

887181A750PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A750

887181A780PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A780

887181A880PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A880

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8889952050COVER, EVAPORATOR

main88899-52050

9017906156

main90179-06156

9151160635

main91511-60635

91511G0625

main91511-G0625

91631J0612

main91631-J0612

22 parts on this diagram · 6 diagrams in section
