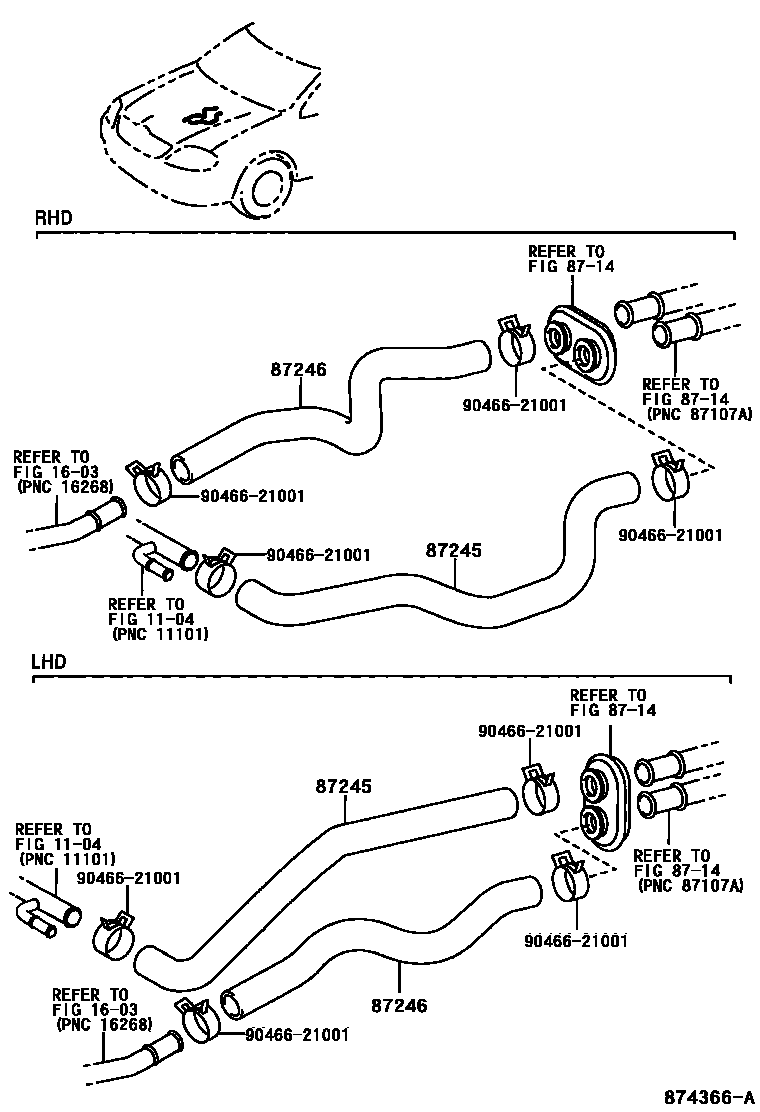

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87245-1A870iCE120..LHD200209-200404

main87245-1E050iNZE120..PKN200008-200507

main87245-1E051iNZE12#..RHD..GEN200609-200708

main87245-1E070iZZE121200008-200110

main87245-1E071iZZE12#..RHD..GEN200209-200404

main87245-1E072iZZE122..PKN200609

main87245-1E110iCE120..PKN200110-200507

main87245-1E111iCE120..RHD..GEN200609-200708

main87245-1E130iNZE120..LHD200209-200404

main87245-1E131iNZE120..LHD200609-200708

main87245-1E150iZZE122200008-200110

main87245-1E151iZZE12#..LHD200209-200404

main87245-1E152iZZE12#..LHD200609-200708

87246HOSE, HEATER WATER, OUTLET

main87245-1A890iCE120..LHD200110-200404

main87245-1E060iNZE12#..RHD..GEN200209-200404

main87245-1E061iNZE120..PKN200609

main87245-1E080iZZE12#..RHD..GEN200209-200404

main87245-1E081iZZE12#..RHD..(ARL,GEN)200609-200708

main87245-1E120iCE120..PKN200110-200507

main87245-1E121iCE120..PKN200609

main87245-1E140iNZE120..LHD200209-200404

main87245-1E141iNZE120..LHD200609-200708

main87245-1E160iZZE121..LHD;ZZE122..GCC200008-200209

main87245-1E161iZZE12#..LHD200609-200708

9046621001

main90466-21001

6 parts on this diagram · 4 diagrams in section
