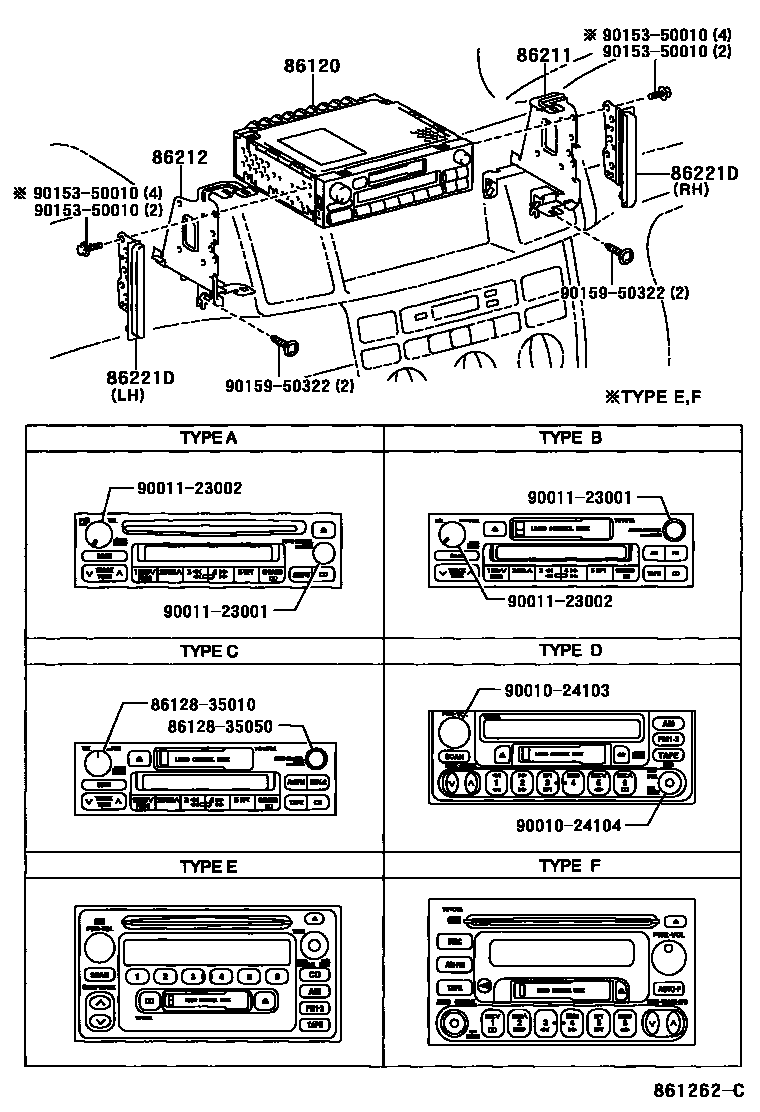

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-08020iNZE120,ZZE122..GCC200008-200108

FUJITSU TEN,ID=11801,TYPE A:REFER TO ILLUSTRATION

main86120-16660iCE120,NZE120..(20D,XLI)..PKN200202-200507

FUJITSU TEN,ID=17409,TYPE B:REFER TO ILLUSTRATION

main86120-2B610iNZE120,ZZE122..GCC200008-200507

FUJITSU TEN,ID=17411,TYPE B:REFER TO ILLUSTRATION

main86120-33280iCE120,ZZE121..20DSA,SESAL200202-200507

FUJITSU TEN,ID=15852,TYPE F:REFER TO ILLUSTRATION

main86120-33440iZZE121..GEN;CE120,NZE120,ZZE122..RHD..GEN200110-200404

MATSUSHITA,ID=57413,10KILOHERTS STEP;TYPE D:REFER TO ILLUSTRATION

main86120-33450iNZE120,ZZE12#..(GLI,LX)..GEN200110-200404

FUJITSU TEN,ID=17808,10KILOHERTS STEP;TYPE E:REFER TO ILLUSTRATION

main86120-33460iZZE122..SED..ARL200110-200702

MATSUSHITA,ID=57412,9KILOHERTS STEP;TYPE D:REFER TO ILLUSTRATION

main86120-33470iZZE121..LX..GEN;NZE120,ZZE122..GCC;NZE12#,ZZE122..RHD..(GLI,LX)..GEN200110-200702

FUJITSU TEN,ID=17809,9KILOHERTS STEP;TYPE E:REFER TO ILLUSTRATION

main86120-42070iCE120,NZE120,ZZE12#..GCC,GEN200110-200404

MATSUSHITA,ID=57414,TYPE D:REFER TO ILLUSTRATION

main86120-60360iNZE120,ZZE122..LHD200008-200110

MATSUSHITA, ID=57409,TYPE C:REFER TO ILLUSTRATION

86211BRACKET, RADIO, NO.1

main86211-12370iZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN200008-200702

86212BRACKET, RADIO, NO.2

main86212-12350iZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN200008-200702

86221DPANEL, RADIO RECEIVER

main86221-52050iCE120,NZE12#,ZZE12#..GCC,GEN200008-200702

LH

main86221-52060iZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN200008-200702

RH

8612835010KNOB, RADIO RECEIVER

main86128-35010

8612835050KNOB, RADIO RECEIVER

main86128-35050

9001024103

main90010-24103

9001024104

main90010-24104

9001123001

main90011-23001

9001123002

main90011-23002

9015350010

main90153-50010

9015950322

main90159-50322

12 parts on this diagram · 2 diagrams in section
