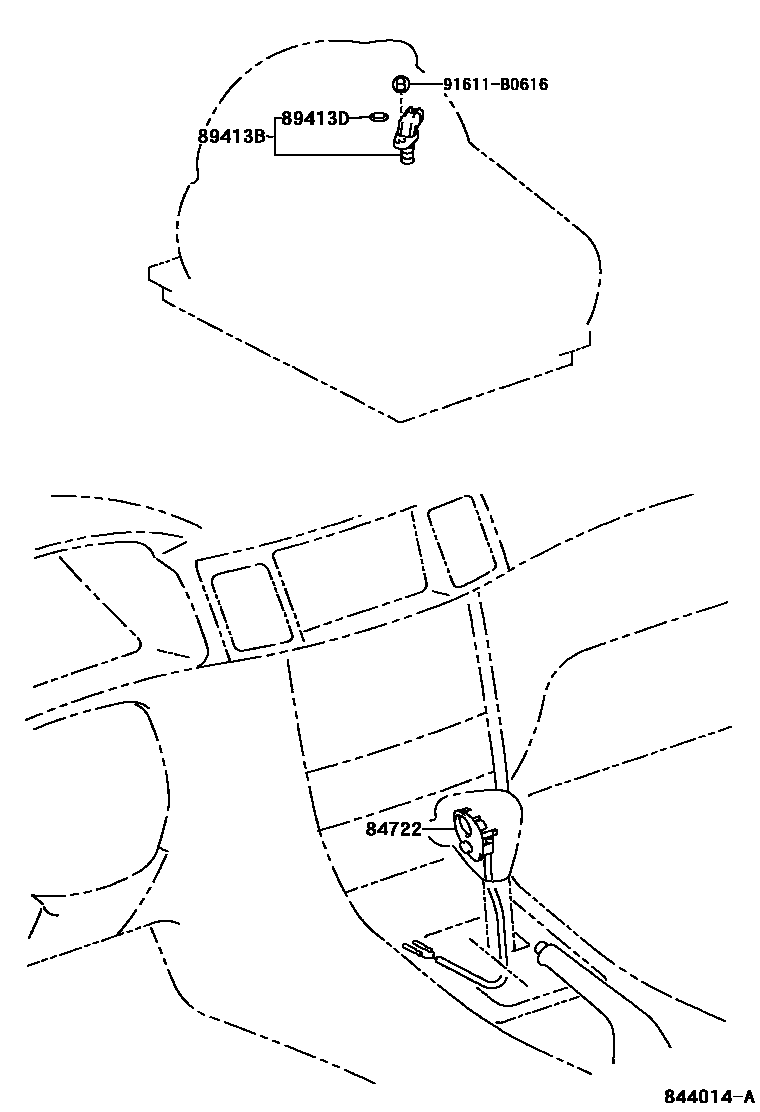

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1

84722SWITCH, TRANSMISSION CONTROL

main84722-12110-B0iZZE122..SED..ATM..ARL200110-200312

DK.GRAY,TRIM0#

main84722-12110-E0iNZE121,ZZE12#..RHD..ATM..(GEN,PKN)200008-200507

SANDAL WOOD,TRIM0#

main84722-12120-B0iNZE120,ZZE12#..LHD..SED..ATM; NZE120,ZZE122..LHD..SED..ATM..GEN200209-200404

DK.GRAY,TRIM1#

main84722-12120-E0iNZE120,ZZE12#..LHD..ATM200008-200404

SANDAL WOOD,TRIM0#

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-32010iNZE12#..ATM; ZZE122..ATM..GCC200008-200404

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iNZE12#..ATM; ZZE122..ATM..GCC200008-200404

91611B0616

main91611-B0616

4 parts on this diagram · 3 diagrams in section
