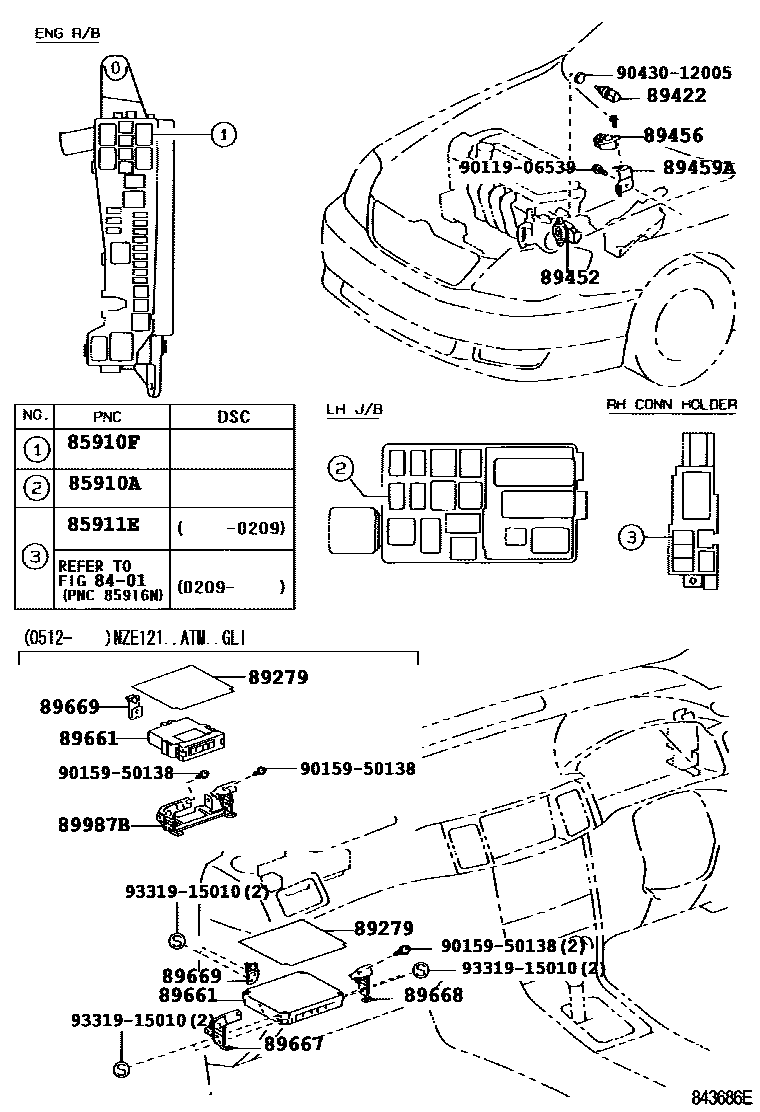

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90080-87008iZZE121..LX,SESAL;ZZE121..ATM..XLI;NZE120,ZZE122..RHD;NZE120,ZZE122..GCC200008-200507

P/N LABEL=9008087008

main90080-87010iZZE121..ATM..XLI;ZZE12#..CONQ,LX,ULT; ZZE122..LHD..WG..GEN200008-200404

P/N LABEL=9008087010; PART NUMBER LABEL=90080-87010

main90080-87019iNZE12#;ZZE122..GEN; NZE120..GCC200109-200110

P/N LABEL=9008087019

main90080-87021iZZE122200109-200110

P/N LABEL=9008087021

main90080-87027iZZE122..PKN200507

P/N LABEL=9008087027

main90987-02012iNZE121200109-200110

P/N LABEL=9098702012

main90987-02020iNZE12#,ZZE12#..GCC,GEN; NZE120,ZZE122..LHD..XLI200008-200404

PART NUMBER LABEL=90987-02020

85910FRELAY, COMPUTER (FOR EFI)

main90080-87008iNZE120..LHD..XLI; ZZE121..XLI;ZZE122..LHD..WG..GEN200110-200404

(L); (L),DENSO

main90080-87010iZZE122..GCC200108-200404

P/N LABEL=9008087010

main90080-87019iZZE122..ARL,GCC;ZZE121..LHD..LX;ZZE121..ATM..XLI200109-200404

P/N LABEL=9008087019

main90080-87021iZZE122200109-200110

P/N LABEL=9008087021

main90080-87027iZZE122..PKN200507

P/N LABEL=9008087027

main90987-02012iNZE121200109-200110

P/N LABEL=9098702012

main90987-02020iNZE12#,ZZE12#..ARL,GCC,GEN200404

85911ERELAY, ALTERNATOR CUT

main90080-87019iNZE121200109-200110

P/N LABEL=9008087019

main90987-02012iNZE121200109-200110

P/N LABEL=9098702012

main90987-02020iNZE121200008-200209

P/N LABEL=9098702020

89279COVER, ENGINE CONTROL COMPUTER

main89279-12150iZZE12#..ARL,GCC,GEN200404

main89279-12160iNZE12#..GCC,GEN200209-200404

main89279-52050iZZE122..MTM..PKN200507

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iNZE121..GLI200512

main89422-35010iNZE121..LX;NZE121..MTM..GLI;NZE120,ZZE12#..ARL,GCC,GEN200404

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-0A010iZZE12#200008-200112

(L)

main89452-20130iZZE121..GEN;ZZE122..RHD;ZZE122..LHD..GLI200112-200404

PART NUMBER LABEL=89452-20130

89456RESISTOR, VARIABLE

main89456-30010iNZE120..XLI;ZZE122..GCC;ZZE122..RHD..GEN;ZZE122..LHD..XLI..GEN;NZE120,ZZE121..RHD..(GLI,SESAL)200008-200507

89459ABRACKET, VARIABLE RESISTOR

main89459-12030iNZE120,ZZE122..LHD..GLI..GEN200008-200404

89661COMPUTER, ENGINE CONTROL

main89661-12A50iZZE122..MTM..PKN200507

main89661-12A60iZZE122..ATM..PKN200507

main89661-12C80iZZE122..MTM..ARL200510

main89661-12C90iZZE122..ATM..ARL200510

main89661-12D00iNZE121..GLI200512

main89661-1E460iZZE121..MTM..PKN200202-200507

main89661-1E470iZZE121..ATM..PKN200202-200507

main89661-1E480iNZE120..LHD..MTM..XLI200404

PART NUMBER LABEL=89661-1E480

main89661-1E490iNZE120..ATM200404

PART NUMBER LABEL=89661-1E490

main89661-1E500iZZE122..MTM..ARL;ZZE122..LHD..WG..MTM..GEN200110-200404

PART NUMBER LABEL=89661-1E500

main89661-1E510iZZE122..ATM..ARL;ZZE122..LHD..WG..ATM..GEN200110-200404

PART NUMBER LABEL=89661-1E510

main89661-1E520iZZE121..LHD..MTM200110-200404

main89661-1E530iZZE121..LHD..ATM200404

main89661-1E550iZZE122..MTM..GCC200404

PART NUMBER LABEL=89661-1E550

main89661-1E560iZZE122..ATM..GCC200209-200404

PART NUMBER LABEL=89661-1E560

main89666-12060iNZE120..PKN200507

main89666-12110iNZE120..ATM200209-200404

PART NUMBER LABEL=89666-12110

main89666-12130iNZE121..MTM..GLI200008-200101

main89666-12131iNZE121..MTM..GLI200209-200404

main89666-12150iNZE121..ATM..GLI200008-200101

main89666-12151iNZE121..ATM..GLI200209-200404

main89666-12180iZZE121..RHD..MTM..GEN200008-200209

main89666-12190iZZE121..RHD..ATM..GEN200404

main89666-12210iZZE122..MTM..(GCC,GEN)200008-200404

PART NUMBER LABEL=89666-12210

main89666-12230iZZE122..ATM..(GCC,GEN)200209-200404

PART NUMBER LABEL=89666-12230

main89666-12300iNZE121..MTM..LX200008-200101

main89666-12301iNZE121..MTM..LX200101-200209

main89666-12310iNZE121..ATM..LX200008-200101

main89666-12311iNZE121..ATM..LX200404

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-12190iZZE12#..ARL,GCC,GEN200404

main89667-12200iNZE12#..GCC,GEN200209-200404

main89667-13030iZZE122..MTM..PKN200507

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12100iZZE12#..ARL,GCC,GEN200404

main89668-12110iNZE12#..GCC,GEN200209-200404

main89668-13030iZZE122..MTM..PKN200507

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-12030iNZE120..LHD..GLI200008-200401

main89669-12040iNZE121..GLI200512

89987BBRACKET, COMPUTER, NO.1

main89987-12010iNZE121..GLI200512

9011906539

main90119-06539

9015950138

main90159-50138

9043012005

main90430-12005

9331915010

main93319-15010

18 parts on this diagram · 2 diagrams in section
