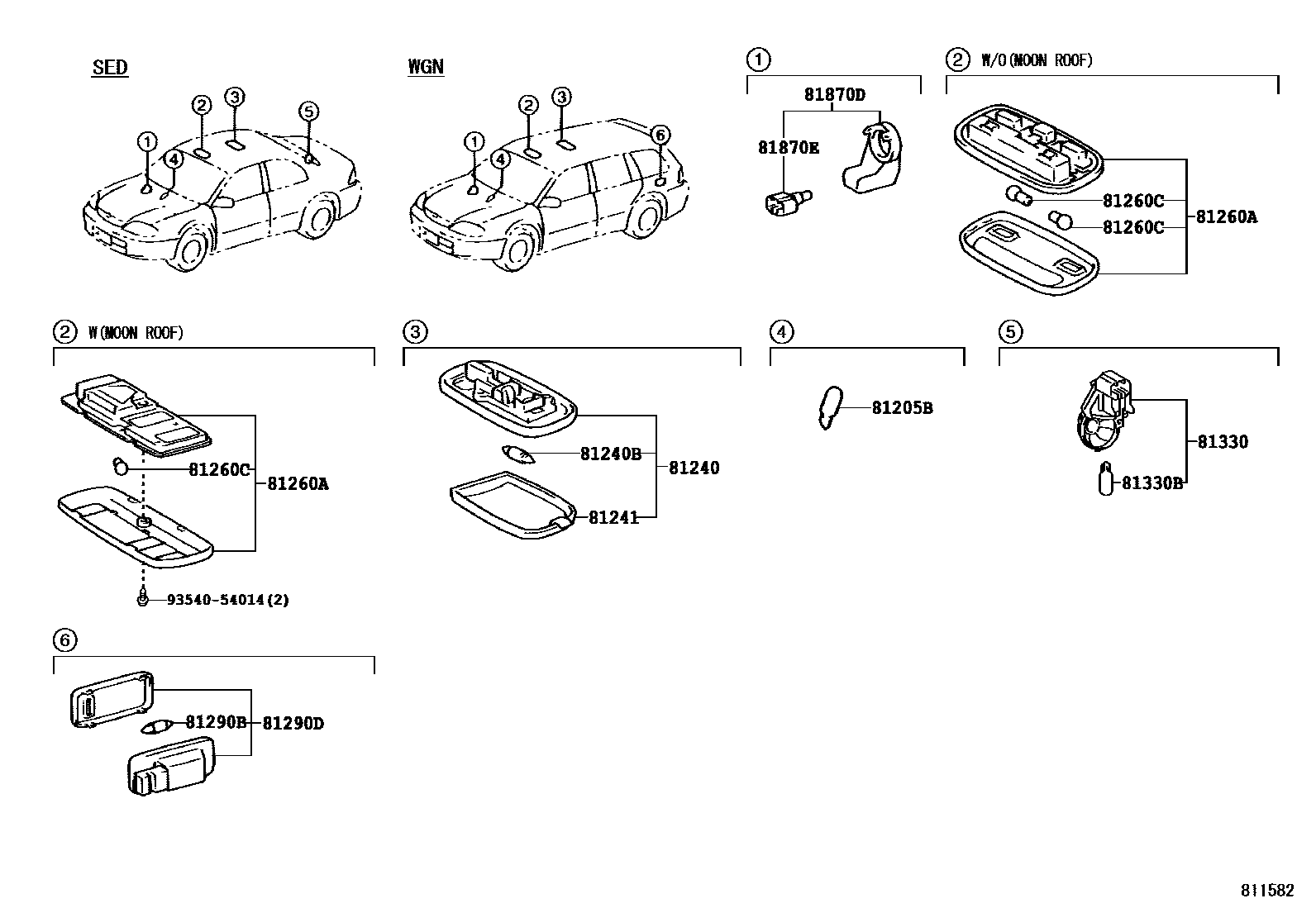

INTERIOR LAMP

81205BBULB, ASH RECEPTACLE LAMP

main90981-11018iCE120,NZE12#,ZZE12#..GCC,GEN200209-200404

12V 1.2W W/O SOCKET

81240LAMP ASSY, ROOM, NO.1

main81240-12070-A0iCE120,NZE12#,ZZE12#..(GLI,LX,ULT,XLI)..(ARL,GCC,GEN)200404-200708

IVORY,TRIM0#

main81240-12070-B0iZZE122..WG..ARL;CE120,NZE12#,ZZE12#..SED..(GCC,GEN)200008-200404

LT.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iNZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200209

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-12070iZZE122..SED..ARL200405-200702

main81241-12070-A0iCE120,NZE12#,ZZE12#..(GLI,LX,ULT,XLI)..(ARL,GCC,GEN)200404-200405

IVORY,TRIM0#

main81241-12070-B0iNZE120..SED..(GCC,GEN);CE120,NZE121,ZZE12#..CONQ,GLI,LX,XLI200404-200405

LT.GRAY,TRIM1#

81260ALAMP ASSY, MAP

main81260-02020-A0iCE120,ZZE122..20DSA,SESAL200507

IVORY,TRIM0#

main81260-12110-A0iZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121..GCC,GEN200008-200404

IVORY,TRIM0#

main81260-12110-B0iNZE120..SED..(GCC,GEN);CE120,NZE121,ZZE12#..CONQ,GLI,LX,XLI200404-200708

LT.GRAY,TRIM1#

main81260-12120-A0iZZE122..LHD..WG;ZZE122..SED..(GLI,ULT,XLI);CE120,NZE12#,ZZE121..GCC,GEN200008-200402

W(MOON ROOF),IVORY,TRIM0#

main81260-12120-B0iCE120,NZE120,ZZE12#..LHD..SED..GEN200008-200209

LT.GRAY,TRIM15,17

81260CBULB(FOR MAP LAMP)

main90981-12005×2iNZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200209

12V 8W

main90981-12014iZZE122..WG..GCC;ZZE122..SED..(GCC,GEN);CE120,NZE12#,ZZE121..GCC,GEN; ZZE122..WG..GEN200209-200404

12V 10W; 12V 10W,W(MOON ROOF)

main90981-12020×2iCE120,ZZE122..20DSA,SESAL200507

12V 8W

81290BBULB, ROOM LAMP, NO.3

main90981-11016iNZE120,ZZE122..WG200404-200609

12V 5W

81290DLAMP ASSY, REAR ROOM, LH

main81250-16040iNZE120,ZZE122..WG..XLI200209-200404

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-0A010iCE120,NZE120,ZZE122..PKN200507

main81330-12020iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200404

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90080-81058iCE120,NZE120,ZZE121..PKN200202-200507

12V 3W

main90981-11020iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200209-200404

12V 3.8W

81870DLAMP ASSY, KEY CYLINDER

main81870-12020iCE120,NZE12#,ZZE12#..GCC,GEN200008-200404

81870EBULB, KEY CYLINDER LAMP

main90010-01056iCE120,NZE12#,ZZE12#..GCC,GEN200008-200404

14V 1.4W

9354054014

main93540-54014

13 parts on this diagram · 1 diagram in section
