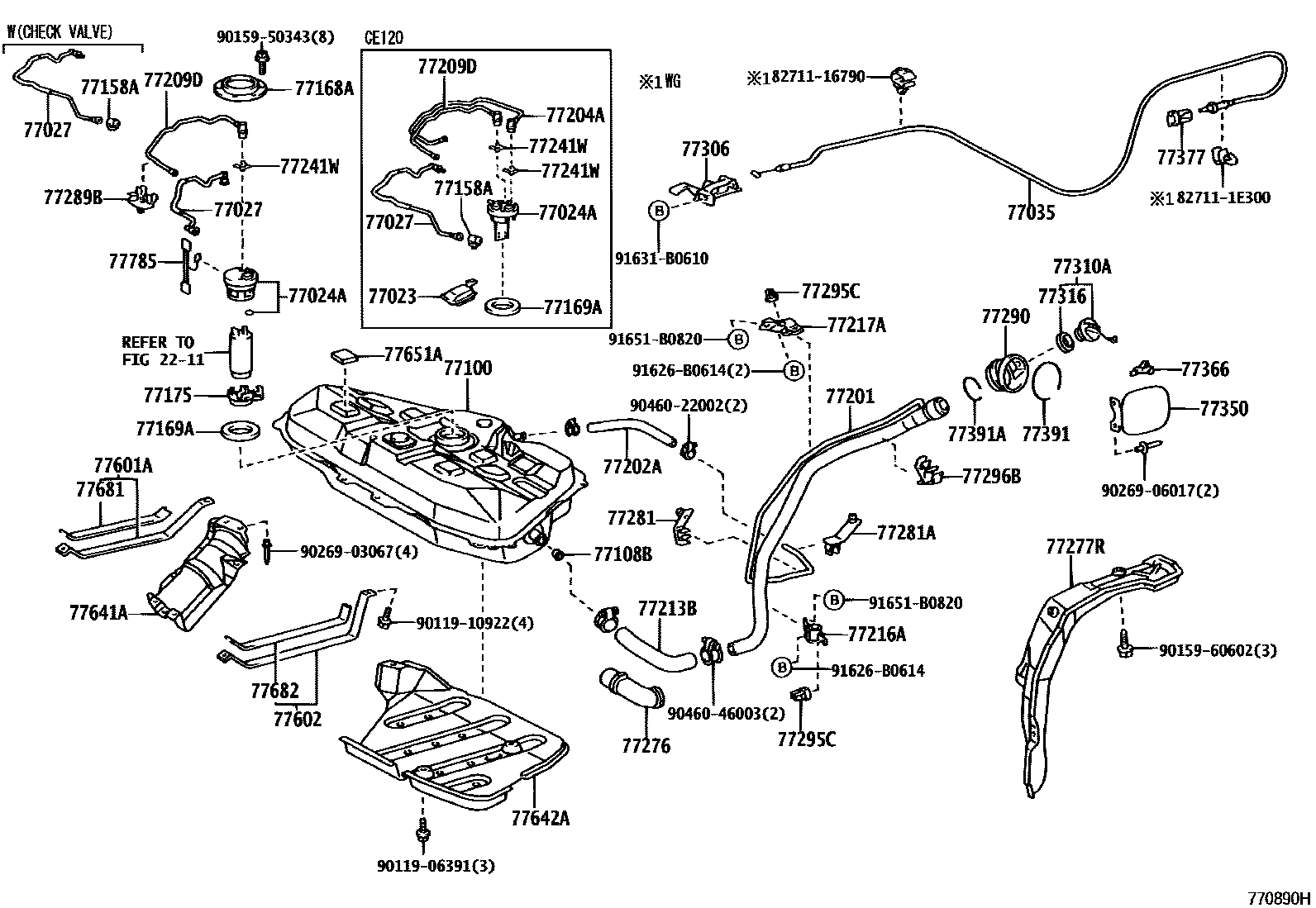

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK MIDDLE SOUTH AMERIC0004 1FUEL TANK 0005 1FUEL TANK 0006 1FUEL TUBE 0009 1FUEL TUBE W/O(CANISTER) 0012 1FUEL TUBE

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-32040iCE120..LHD200110-200404

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-02030iZZE122..PKN200507

main77024-12010iNZE12#,ZZE12#..GCC,GEN200404-200511

main77024-12020iCE120..PKN200202-200507

77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2

main77027-12020iNZE121,ZZE121;NZE120,ZZE122..GCC200008-200110

main77027-12030iCE120,NZE120,ZZE122..GEN200110-200404

W(CHECK VALVE)

main77027-12040iZZE122..ARL200404-200702

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-02050iCE120,NZE120,ZZE122..PKN200507

main77035-12400iCE120,NZE12#,ZZE12#..RHD..SED..GEN200209-200404

main77035-12410iCE120,NZE120,ZZE12#..LHD..SED200404

main77035-13090iZZE122..WG..ARL200110-200404

main77035-13100iNZE120,ZZE122..WG..GCC200008-200209

77100TANK ASSY, FUEL

main77001-02110iCE120,NZE120,ZZE121..PKN200202-200507

main77001-02280iCE120,NZE120,ZZE122200801

main77001-12820iNZE12#,ZZE12#..GCC,GEN200209-200302

main77001-12830iCE120,NZE120,ZZE122..LHD..GEN; CE120..RHD..GEN200209-200302

MIDDLE SOUTH AMERICA SPEC

main77001-12860iZZE122..ARL200110-200301

main77001-12A60iCE120..GEN200511-200708

main77001-12C40iNZE12#,ZZE12#..GCC,GEN200511-200708

main77001-1A010iZZE122..ARL200301-200404

77108BVALVE SUB-ASSY, FUEL TANK FILLER CHECK

main77108-12040iZZE122..SED..ARL200404-200702

77158ASUPPORT, TANK SUCTION TUBE

main77158-12030iCE120,NZE120,ZZE122..LHD..GEN200008-200404

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52010iCE120,NZE12#,ZZE12#..GCC,GEN200404-200511

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33020iZZE122..SED..ARL200404-200611

77175SUPPORT, FUEL SUCTION, NO.2

main77175-0D010iZZE122..PKN200507

main77175-47010×4iZZE121..LHD;NZE120,ZZE122..ARL,GEN200008-200404

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-02100iCE120,NZE120..PKN200507

main77201-02110iZZE122..PKN200507

main77201-12580iNZE121,ZZE121..RHD..LX;CE120,NZE120,ZZE122..GCC,GEN200404

main77201-12590iNZE120..LHD..XLI..GEN200110-200312

W(INTERFRENCE)

main77201-12591iNZE121..GLI;ZZE122..SED..GCC;ZZE122..LHD..WG..GEN;ZZE122..WG..(ARL,GCC);NZE120,ZZE121..LHD..(LX,XLI)200404

W(INTERFRENCE)

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main95313-13034iCE120,NZE12#,ZZE12#..GCC,GEN200209-200404

L=340

main95313-13046iCE120,NZE120,ZZE121..PKN200202-200507

77204ATUBE, FUEL TANK RETURN

main77204-12100iCE120..RHD..GEN200110-200209

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-12160iNZE121..ATM;NZE121..MTM..LX;NZE120,ZZE12#..SED..(GCC,GEN)200511-200611

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-12250iCE120..GEN200404

main77213-32070iCE120,NZE120,ZZE121..PKN200202-200507

main77213-32090iCE120..LHD200008-200312

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-32060iNZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200209

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-32050iZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN200008-200404

77241WCLIP, TUBE JOINT

main77241-06010iZZE122..PKN200507

main77241-33011iNZE12#,ZZE12#..GCC,GEN200404-200511

main77241-60320×2iCE120..PKN200507

77276PROTECTOR, FUEL HOSE

main77276-12050iNZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200209

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-12170iNZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200209

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-32040iZZE122..SED..ARL200404-200702

77281ACLAMP, FUEL FILLER PIPE

main77281-12070iZZE122..SED..ARL200404-200702

77289BCLAMP, FUEL TUBE, NO.3

main77289-12030iZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN200008-200404

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-12150iNZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200209

77295CGROMMET, FUEL TUBE

main77295-12070×2iNZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200209

77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1

main77296-12030iNZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200209

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main64606-12050iCE120,NZE120,ZZE12#..LHD..SED200209-200404

main64606-12060iZZE122..SED..ARL200008-200404

main77306-13020iZZE122..RHD..WG..GEN200209-200404

main77306-13030iNZE120,ZZE122..LHD..WG200404-200609

77310ACAP ASSY, FUEL TANK

main77300-28010iNZE121,ZZE121..RHD..GEN200008-200209

main77310-12150iCE120..GEN200209-200404

main77310-48010iZZE122..ARL200404-200510

77316GASKET, FUEL TANK CAP

main77316-16010iCE120,NZE120,ZZE122..PKN200507

77350LID ASSY, FUEL FILLER OPENING

main77350-12440iNZE121,ZZE121..GEN;NZE120,ZZE122..SED..GCC;CE120,NZE120,ZZE122..RHD..SED..GEN200008-200209

main77350-12450iCE120,NZE120,ZZE121..PKN200202-200507

main77350-13070iZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC200008-200209

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30080iNZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200209

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iNZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200209

77391RING, FUEL INLET BOX

main77391-02050iCE120,NZE120,ZZE122..PKN200507

main77391-12040iZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN200404

77391ARING, FUEL INLET BOX

main77391-02020iCE120,NZE120,ZZE122..PKN200507

main77391-12020iZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN200404

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-12230iCE120,NZE12#,ZZE12#..GCC,GEN200209-200404

main77601-12250iZZE121..LHD;CE120,NZE120,ZZE122..GEN200404

W(PROTECTOR = PNC 77266A)

77602CASE SUB-ASSY, FUEL TANK, UPPER

main77602-12180iCE120,NZE120,ZZE121..PKN200008-200507

main77602-12190iCE120,NZE120,ZZE122..LHD..GEN200008-200404

W(PROTECTOR = PNC 77266A)

77641APROTECTOR, FUEL TANK, NO.1

main77641-12160iCE120,NZE120,ZZE122..PKN200507

77642APROTECTOR, FUEL TANK, NO.2

main77642-12040iZZE121..LHD;CE120,NZE120,ZZE122..GEN200209-200404

main77642-12041iZZE121..LHD;CE120,NZE120,ZZE122..GEN200704

77651ACUSHION, FUEL TANK, NO.1

main77651-20090×7iZZE122..SED..ARL; ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN200008-200404

77681SEAT, FUEL TANK BAND, RH

main77681-34030iNZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200209

77682SEAT, FUEL TANK BAND, LH

main77681-32060iNZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200209

77785HARNESS, FUEL PUMP

main77785-06030iZZE122..PKN200507

main77785-52020iZZE122..ARL200612-200702

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300

9011906391

main90119-06391

9011910922

main90119-10922

9015950343

main90159-50343

9015960602

main90159-60602

9026903067

main90269-03067

9026906017

main90269-06017

9046022002

main90460-22002

9046046003

main90460-46003

91626B0614

main91626-B0614

91631B0610

main91631-B0610

91651B0820

main91651-B0820

56 parts on this diagram · 8 diagrams in section
