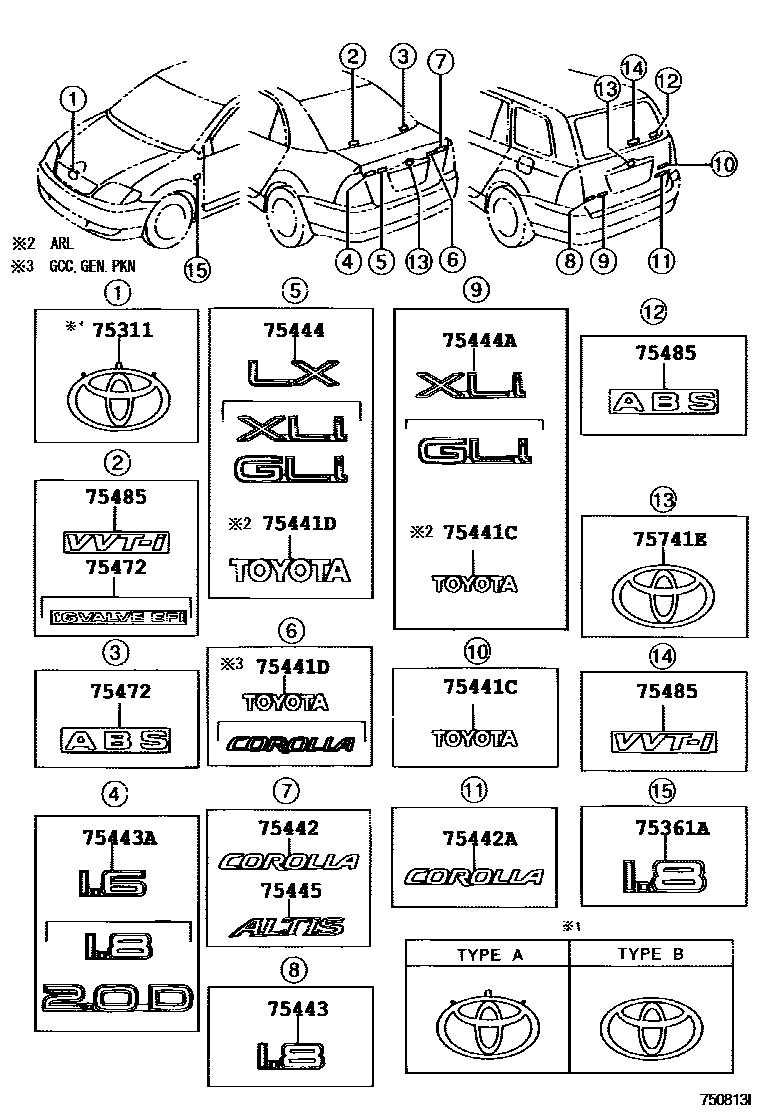

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)
75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
TYPE B:REFER TO ILLUSTRATION
75361APLATE, FRONT FENDER NAME, NO.1
1.8
75441CPLATE, BACK DOOR NAME
TOYOTA
TOYOTA
75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1
TOYOTA
COROLLA
COROLLA
75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2
main75442-1A450iNZE121,ZZE121..GEN;NZE120,ZZE122..SED..GCC;CE120,NZE120,ZZE122..RHD..SED..GEN200008-200209
COROLLA
COROLLA
COROLLA,LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH=TYPE C:FIG 75-04
75442APLATE, BACK DOOR NAME, NO.2
COROLLA
COROLLA
75443PLATE, BACK DOOR NAME, NO.3
1.8
75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3
1.6
1.8
2.0 D
2.0 D
75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4
LX
XLI
GLI
75444APLATE, BACK DOOR NAME, NO.4
XLI
GLI
75445PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.5
ALTIS
75472PLATE, REAR WINDOW NAME
16VALVE EFI
ABS
75485PLATE, BACK WINDOW NAME
VVT-I
ABS
75741EEMBLEM, SYMBOL
LICENSE PLATE(330 X 165)
LICENSE PLATE(520 X 120)
14 parts on this diagram · 2 diagrams in section
