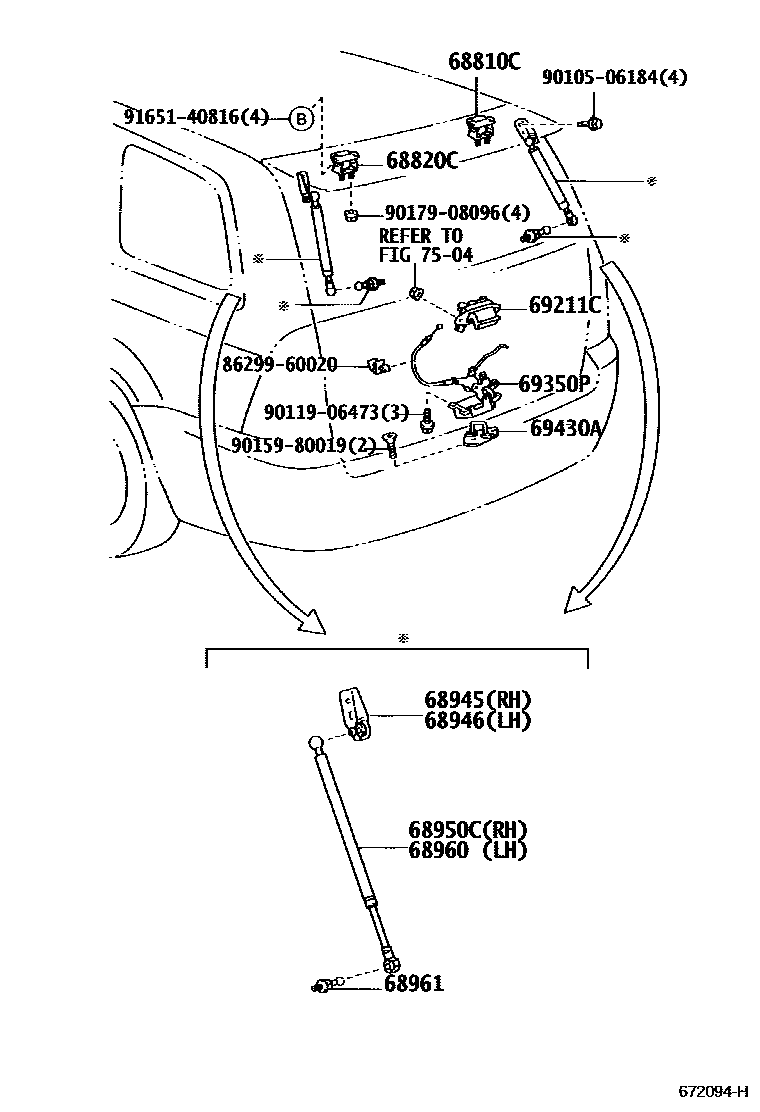

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-21050iNZE120,ZZE122..WG200008-200404

68820CHINGE ASSY, BACK DOOR, LH

main68810-21050iNZE120,ZZE122..WG200008-200404

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-13040iZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC200008-200209

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-13040iZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC200008-200209

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W070iZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC200008-200209

68960STAY ASSY, BACK DOOR, LH

main68960-0W060iZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC200008-200209

68961BOLT, BACK DOOR STAY

main68961-10030×2iZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC200008-200209

69211CHANDLE, BACK DOOR OUTSIDE

main69023-13010iNZE120,ZZE122..WG200008-200109

main69023-13020iZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC200109-200209

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-13240iNZE120,ZZE122..WG200008-200404

main69350-13320iNZE120,ZZE122..WG..XLI200209-200404

69430ASTRIKER ASSY, BACK DOOR LOWER LOCK

main69430-52020iZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC200008-200209

7504REAR MOULDING

→ Go to FIG 75-04

8629960020PAD, SPEAKER

main86299-60020

9010506184

main90105-06184

9011906473

main90119-06473

9015980019

main90159-80019

9017908096

main90179-08096

9165140816

main91651-40816

17 parts on this diagram · 1 diagram in section
