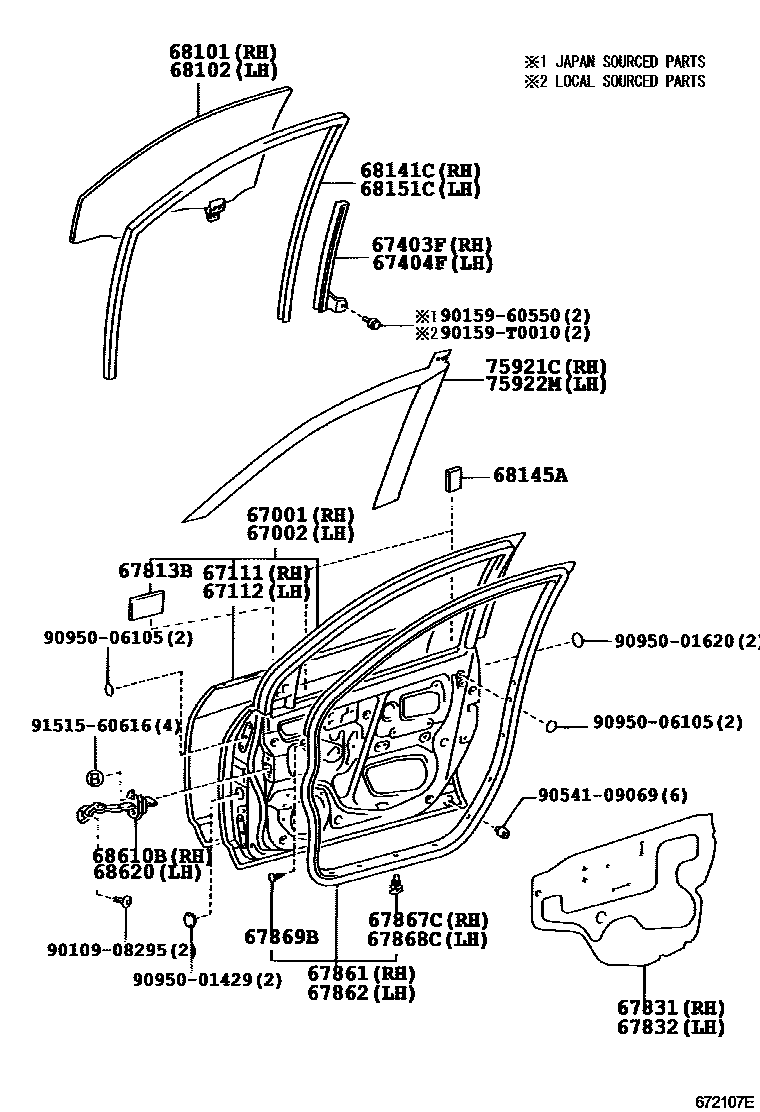

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1TRIM CODE TABLE 0005 1TRIM CODE TABLE 0009 1TRIM CODE TABLE 0013 1TRIM CODE TABLE 0014 1TRIM CODE,MIDDLE SOUTH AMERIC

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-1A620iCE120,NZE12#,ZZE12#200008-200112

main67001-1A670iCE120,NZE120,ZZE122..PKN200507

main67001-1A680iCE120,NZE12#,ZZE12#..GCC,GEN200209-200212

main67001-1A681iCE120,NZE12#,ZZE12#..GCC,GEN; ZZE122..ARL;ZZE121..MTM..XLI;CE120,NZE120,ZZE122..LHD..GEN200212-200404

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-1A580iCE120,NZE12#,ZZE12#200008-200112

main67002-1A630iCE120,NZE120,ZZE122..PKN200507

main67002-1A640iCE120,NZE12#,ZZE12#..GCC,GEN200209-200404

67111PANEL, FRONT DOOR, OUTER RH

main67111-12670iCE120,NZE12#,ZZE12#200008-200507

67112PANEL, FRONT DOOR, OUTER LH

main67112-12660iCE120,NZE12#,ZZE12#200008-200112

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-12220iCE120,NZE12#,ZZE12#200008-200507

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-12200iZZE122..SED..ARL200404-200702

67813BPACKING, DOOR PROTECTOR

main67817-47010×2iCE120,NZE12#,ZZE12#200008-200112

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-12590iCE120,NZE120,ZZE122..PKN200507

main67831-12630iCE120,NZE12#,ZZE12#..GCC,GEN200209-200404

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-12380iCE120,NZE120,ZZE122..PKN200507

main67832-12410iZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN200404

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-02100iCE120,NZE120,ZZE121..PKN200202-200507

main67861-1A020iCE120,NZE12#,ZZE12#..GCC,GEN200209-200404

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-02100iCE120,NZE120,ZZE121..PKN200202-200507

main67862-12870iCE120,NZE12#,ZZE12#..GCC,GEN200209-200404

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×14iCE120,NZE12#,ZZE12#..ARL,GCC,GEN200404-200501

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×14iCE120,NZE12#,ZZE12#200008-200507

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-12050×2iZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN200404

main67869-20030×2iCE120,NZE120,ZZE121..PKN200202-200507

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-12A00iZZE122..CONQ200301-200404

*TT,T=3.5,GREEN

main68101-1A480iZZE122..ULT200404-200702

*UVCTT,T=3.5,GREEN

main68101-1A490iNZE121,ZZE121..RHD..GEN200404

*UVCTT,T=3.5,GREEN,W(WATERPROOF COAT)

main68101-1A530iCE120,NZE120,ZZE121..PKN200110-200507

*TT,T=3.5,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-12A00iZZE122..CONQ200301-200404

*TT,T=3.5,GREEN

main68102-1A480iZZE122..ULT200404-200702

*UVCTT,T=3.5,GREEN

main68102-1A490iNZE121,ZZE121..RHD..GEN200404

*UVCTT,T=3.5,GREEN,W(WATERPROOF COAT)

main68102-1A530iCE120,NZE120,ZZE122..PKN200507

*TT,T=3.5,GREEN

68141CRUN, FRONT DOOR GLASS, RH

main68141-02060iCE120,NZE120,ZZE122..PKN200507

main68141-12510iCE120,NZE12#,ZZE12#200008-200201

main68141-12511iCE120,NZE12#,ZZE12#..GCC,GEN200209-200404

main68141-12512iZZE122..SED..ARL200602-200702

68145ACUSHION, FRONT DOOR WINDOW

main69759-12060×4iNZE12#,ZZE12#200008-200012

main69759-12110×4iCE120,NZE12#,ZZE12#..GCC,GEN200209-200404

68151CRUN, FRONT DOOR GLASS, LH

main68151-02050iCE120,NZE120,ZZE122..PKN200507

main68151-12210iCE120,NZE12#,ZZE12#200008-200201

main68151-12211iCE120,NZE12#,ZZE12#..ARL,GCC,GEN200201-200404

main68151-12212iZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN200602

68610BCHECK ASSY, FRONT DOOR, RH

main68610-12160iCE120,NZE12#,ZZE12#200008-200405

main68610-12161iZZE122..SED..ARL200404-200702

68620CHECK ASSY, FRONT DOOR, LH

main68620-12090iCE120,NZE12#,ZZE12#200008-200405

main68620-12091iCE120,NZE120,ZZE121..PKN200405-200507

75921CTAPE, BLACK OUT, NO.1 RH

main75921-12030iCE120,NZE12#,ZZE12#..SED200008-200111

main75921-12031iNZE121,ZZE121..GEN;NZE120,ZZE122..SED..GCC;CE120,NZE120,ZZE122..RHD..SED..GEN200111-200209

main75921-12032iZZE122..SED..ARL;CE120,NZE120,ZZE122..LHD..SED..GEN200305-200404

75922MTAPE, BLACK OUT, NO.1 LH

main75922-12030iNZE120,ZZE122..WG200008-200112

main75922-12031iZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC200112-200209

main75922-12032iCE120,NZE12#,ZZE12#..GCC,GEN; ZZE122..WG..ARL;ZZE122..LHD..WG..GEN200306-200404

9010908295

main90109-08295

9015960550

main90159-60550

90159T0010

main90159-T0010

9054109069

main90541-09069

9095001429

main90950-01429

9095001620

main90950-01620

9095006105

main90950-06105

9151560616

main91515-60616

31 parts on this diagram · 7 diagrams in section
