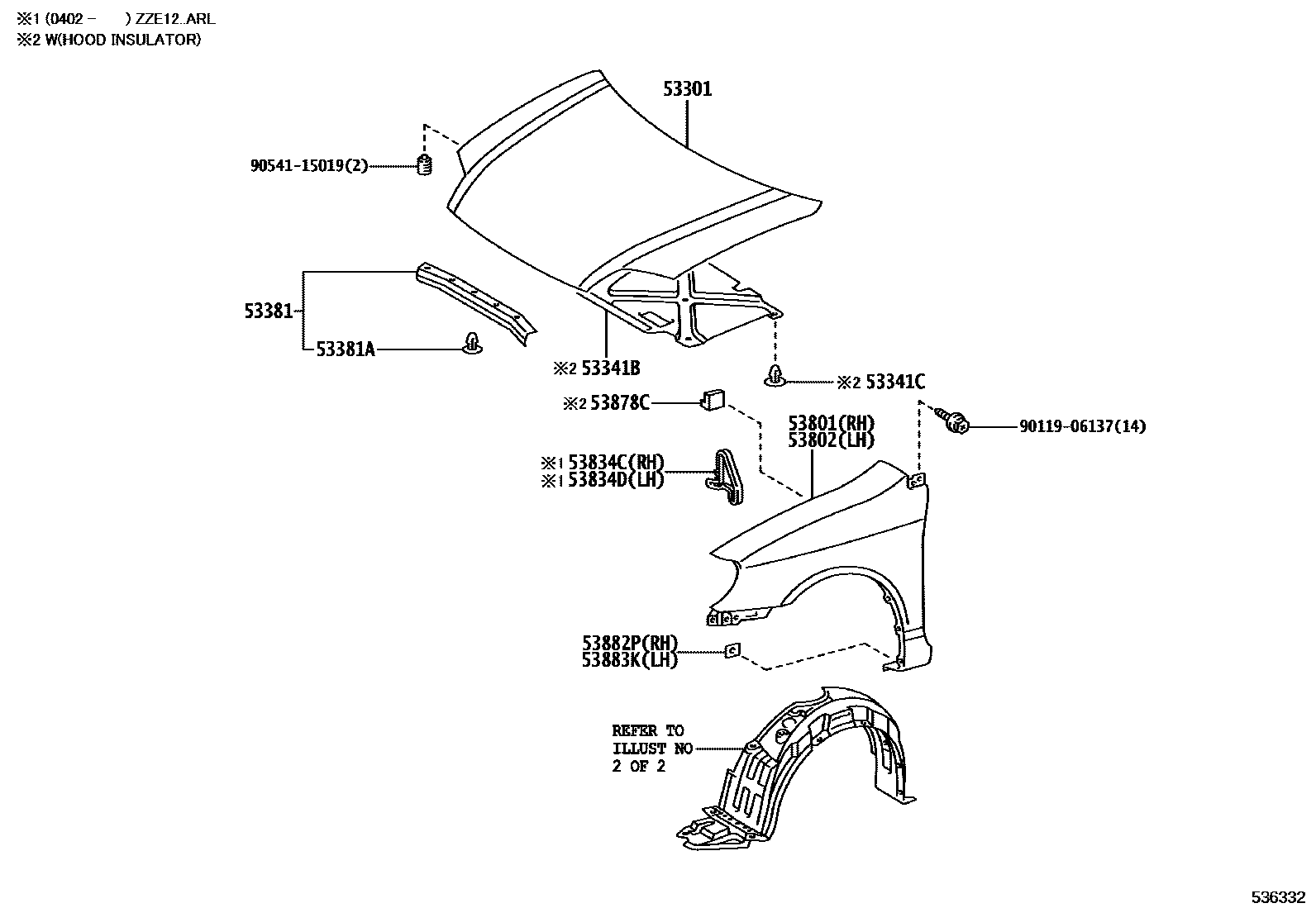

HOOD & FRONT FENDER

0001 1 0004 1FENDER LINER 0007 1 0008 1FENDER LINER 0009 1MIDDLE SOUTH AMERICA SPEC 0010 1MIDDLE SOUTH AMERICA SPEC 0011 1 0012 1FENDER LINER

53301HOOD SUB-ASSY

main53301-12870iCE120,NZE12#,ZZE12#..ARL,GCC,GEN200008-200404

main53301-12880iCE120,NZE120,ZZE121..PKN200202-200507

main53301-12A00iCE120,NZE12#,ZZE12#..GCC,GEN200404-200708

53341BINSULATOR, HOOD

main53341-12140iCE120..GEN200110-200404

main53341-12150iCE120..PKN200202-200507

main53341-12170iZZE122..ARL200510-200702

main53341-12200iCE120..GEN200404

53341CCLIP(FOR HOOD INSULATOR)

main90467-08124×8iCE120,ZZE122..PKN200507

main90467-09050×9iCE120..GEN200404

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-02040iCE120,NZE120,ZZE122..PKN200507

main53381-12180iZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN200404

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×8iCE120,NZE12#,ZZE12#..ARL,GCC,GEN200008-200404

53801FENDER SUB-ASSY, FRONT RH

main53811-13130iZZE122..WG..GEN200404-200609

W(SIDE MUDGUARD)

main53811-1H100iCE120,NZE12#,ZZE12#..GCC,GEN200008-200404

main53811-1H120iZZE122..WG..GEN200110-200404

W(SIDE MUDGUARD)

main53811-1H140iCE120,NZE120..(20D,GLI,XLI)..PKN200507

main53811-1H170iCE120,ZZE122..20DSA,SESAL200507

main53811-1H190iZZE122..ARL200110-200404

W(SIDE TURN SIGNAL LAMP)

main53811-1H210iZZE122..WG..ARL200110-200404

W(SIDE TURN SIGNAL LAMP & SIDE MUDGUARD)

main53811-1H220iCE120,NZE12#,ZZE12#..GCC,GEN200404-200708

53802FENDER SUB-ASSY, FRONT LH

main53812-13120iZZE122..WG..GEN200404-200609

W(SIDE MUDGUARD)

main53812-1E870iCE120,NZE12#,ZZE12#..GCC,GEN200008-200404

main53812-1E890iZZE122..WG..GEN200110-200404

W(SIDE MUDGUARD)

main53812-1H020iCE120,NZE120..(20D,GLI,XLI)..PKN200507

main53812-1H050iCE120,ZZE122..20DSA,SESAL200507

main53812-1H070iZZE122..ARL200110-200404

W(SIDE TURN SIGNAL LAMP)

main53812-1H090iZZE122..WG..ARL200110-200404

W(SIDE TURN SIGNAL LAMP & SIDE MUDGUARD)

main53812-1H100iCE120,NZE12#,ZZE12#..GCC,GEN200404-200708

53834CPLATE, FRONT FENDER SUPPORT, RH

main53834-12120iZZE122..SED..ARL200404-200702

53834DPLATE, FRONT FENDER SUPPORT, LH

main53834-12120iZZE122..ARL200402-200404

53878CSPACER, FRONT FENDER

main53878-12010×2iZZE122..ARL200402-200404

53882PSEAL, FRONT FENDER, RH

main53882-16030×3iCE120..GEN;ZZE121..LHD;NZE120..GLI..GEN;ZZE122..RHD..GEN;ZZE122..LHD..WG..GEN;ZZE122..LHD..GLI..GEN; ZZE122..ARL200110-200404

53883KSEAL, FRONT FENDER, LH

main53882-16030×3iCE120..GEN;ZZE121..LHD;ZZE122..RHD;NZE120..GLI..GEN;ZZE122..LHD..WG..GEN;ZZE122..LHD..GLI..GEN200110-200404

9011906137

main90119-06137

9054115019

main90541-15019

14 parts on this diagram · 8 diagrams in section
