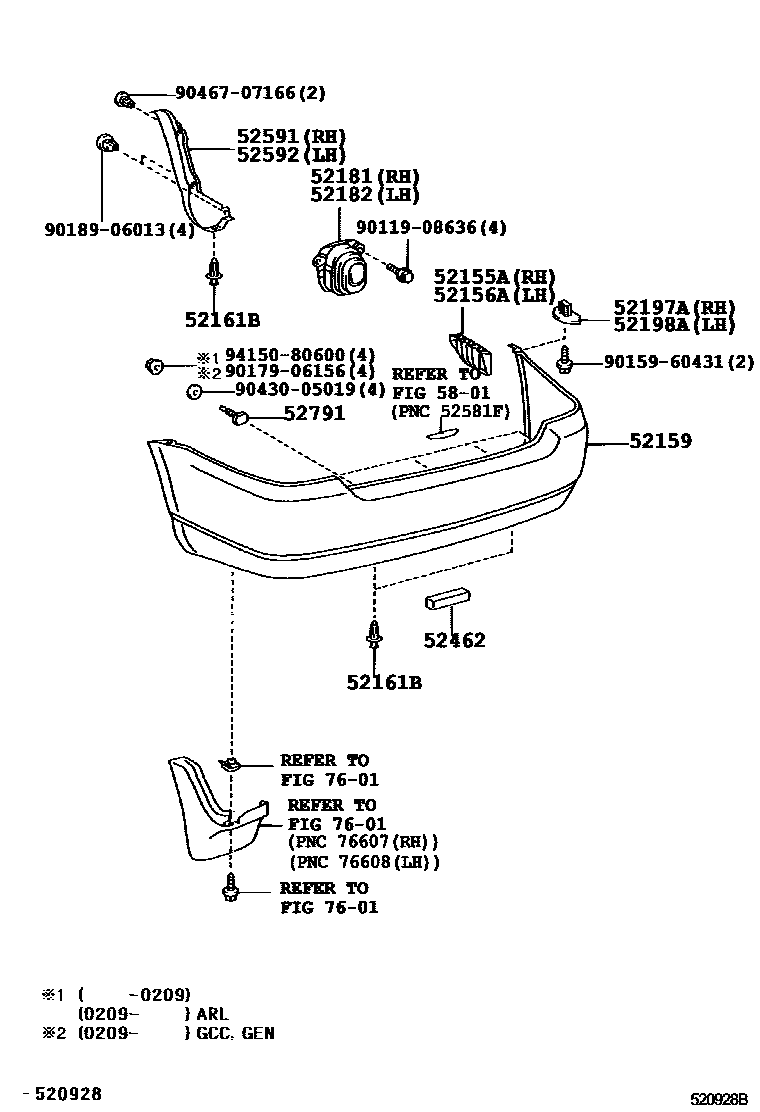

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-02040iCE120,NZE120,ZZE122..PKN200507

main52155-12290iZZE122..SED..ARL200404-200702

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-02030iCE120,NZE120,ZZE122..PKN200507

main52156-12270iZZE122..SED..ARL200404-200702

52159COVER, REAR BUMPER

main52159-02904iCE120,NZE120,ZZE121..PKN200202-200404

main52159-12928iNZE121..GLI;NZE120,ZZE122..SED..GCC; NZE121..LX;CE120,NZE120,ZZE12#..SED..GEN200404

W(REAR LICENSE PLATE GARNISH)

main52159-13904iNZE120,ZZE122..WG200209-200404

main52159-1A920iCE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN)200008-200401

52161BPIECE, REAR BUMPER

main52161-16010×4iZZE122..SED..ARL200404-200702

main90467-09093×4iCE120,NZE120,ZZE122..LHD..GEN200209-200310

MIDDLE SOUTH AMERICA SPEC

52181ARM, REAR BUMPER, RH

main52181-02030iCE120,NZE120,ZZE122..PKN200507

main52181-12440iZZE122..LHD..WG..GEN200008-200402

main52181-12490iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200404-200708

W(REFLEX REFLECTOR)

52182ARM, REAR BUMPER, LH

main52181-02030iCE120,NZE120,ZZE122..PKN200507

main52181-12440iNZE120,ZZE122..WG..GCC; NZE121,ZZE121..GEN;NZE120,ZZE122..SED..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200209

main52181-12490iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200404-200708

W(REFLEX REFLECTOR)

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-12080iNZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200209

52198ABRACKET, REAR BUMPER SEAL, LH

main52198-12080iNZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200209

52462PAD, REAR BUMPER, RH

main52462-12070iCE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN)200008-200404

52591SEAL, REAR BUMPER SIDE, RH

main52591-12150iNZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200209

52592SEAL, REAR BUMPER SIDE, LH

main52592-12070iNZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200209

52791BOLT, BUMPER MOULDING SET, NO.1

main52791-12040×2iNZE121,ZZE121..GEN;NZE120,ZZE122..SED..GCC;CE120,NZE120,ZZE122..RHD..SED..GEN; ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC200008-200209

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9011908636

main90119-08636

9015960431

main90159-60431

9017906156

main90179-06156

9018906013

main90189-06013

9043005019

main90430-05019

9046707166

main90467-07166

9415080600

main94150-80600

21 parts on this diagram · 4 diagrams in section
