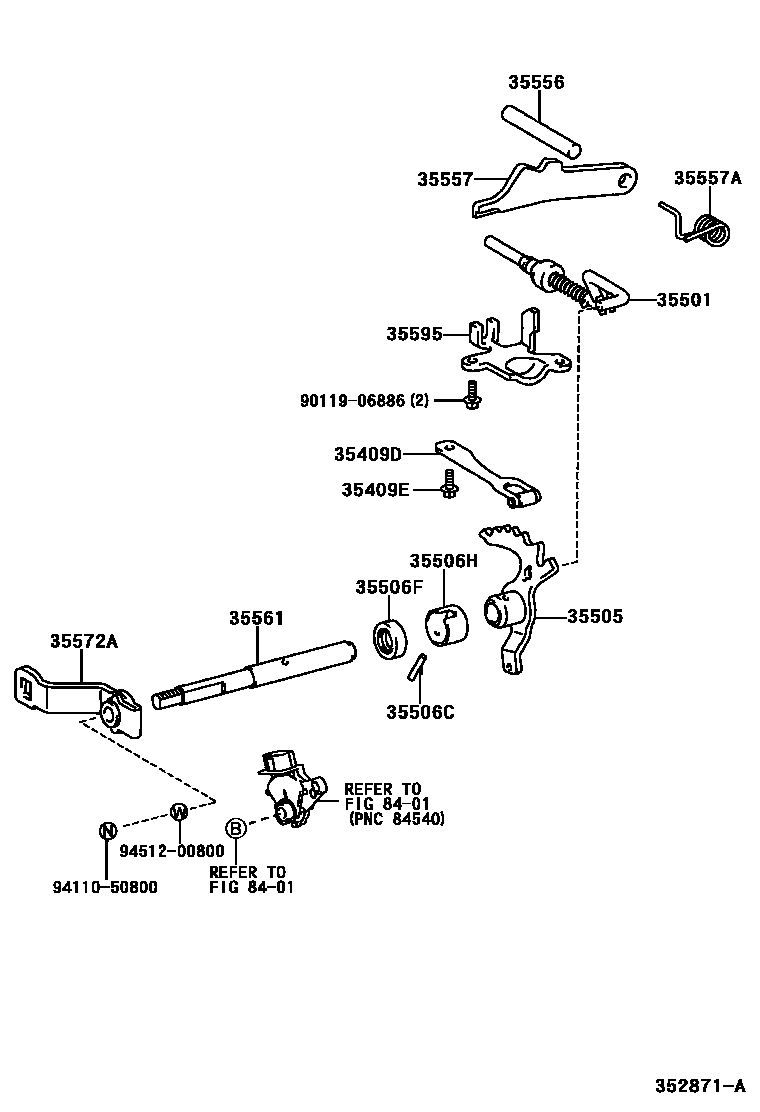

THROTTLE LINK & VALVE LEVER (ATM)

0001 1U441E 0002 1U340E,U341E 0005 1A245E,A246E 0007 1U341E,UNLEADED GASOLINE SPEC

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-52010iNZE120..ATM200404-200708

main35409-52020iNZE121..ATM;ZZE122..ATM..GCC200209-200404

35409EBOLT(FOR MANUAL DETENT SPRING)

main90105-06053iNZE120..ATM..GCC200008-200209

35501ROD SUB-ASSY, PARKING LOCK

main35501-12030iZZE122..ATM..ARL200404-200510

main35501-52010iNZE120..ATM200404-200708

main35501-52020iNZE121..ATM; ZZE122..ATM..GCC200209-200404

UNLEADED GASOLINE SPEC

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-12090iNZE120..ATM200209-200404

main35505-12100iZZE12#..ATM200008-200507

main35505-20030iNZE121..ATM; ZZE122..ATM..GCC200209-200404

UNLEADED GASOLINE SPEC

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iNZE120..ATM; NZE121..ATM200008-200404

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iZZE121..LHD..ATM;NZE121,ZZE122..RHD..ATM..GEN; ZZE121..RHD..ATM..GEN;NZE120,ZZE122..ATM..GCC200008-200209

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20006iNZE120..ATM..GCC200008-200209

35556SHAFT, PARKING LOCK PAWL

main35556-12020iZZE12#..ATM200008-200507

main35556-32020iNZE121..ATM; ZZE122..ATM..GCC200404-200708

UNLEADED GASOLINE SPEC

main35556-52010iNZE120..ATM200209-200404

35557PAWL, PARKING LOCK

main35557-12030iZZE12#..ATM200008-200507

main35557-52010iNZE120..ATM200209-200404

main35557-52020iZZE122..ATM..PKN200507

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03060iZZE122..ATM..ARL200404-200510

main90949-03084iNZE120..ATM200008-200404

main90949-03089iZZE122..ATM..PKN200507

35561SHAFT, MANUAL VALVE LEVER

main35561-12040iZZE12#..ATM200008-200507

main35561-52010iNZE120..ATM200209-200404

main35561-52020iNZE121..ATM; ZZE122..ATM..GCC200209-200404

UNLEADED GASOLINE SPEC

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-12140iNZE120..ATM200209-200404

main35572-12150iZZE122..ATM..ARL200404-200510

main35572-20250iNZE121..ATM; ZZE122..ATM..GCC200209-200404

UNLEADED GASOLINE SPEC

35595BRACKET, PARKING LOCK PAWL

main35595-52010iNZE120..ATM200404-200708

main35595-52020iZZE122..ATM..PKN200507

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906886

main90119-06886

9411050800

main94110-50800

9451200800

main94512-00800

17 parts on this diagram · 4 diagrams in section
