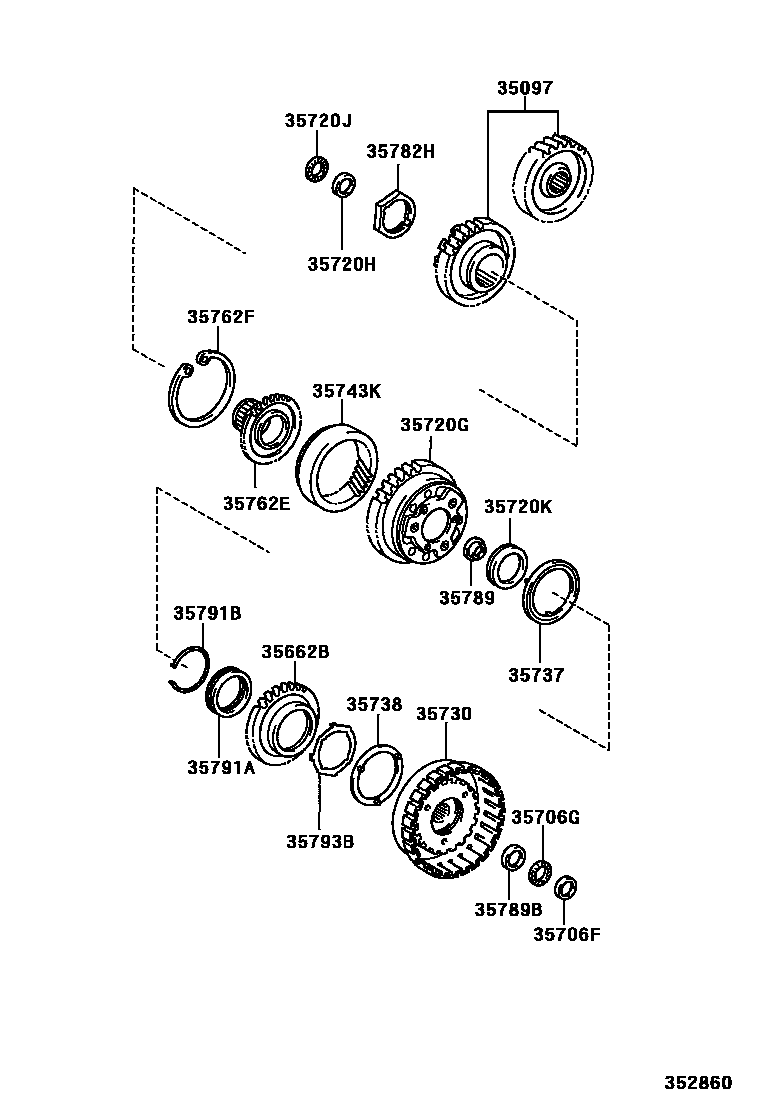

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1U441E 0002 1U340E,U341E 0005 1A245E,A246E 0007 1U341E,UNLEADED GASOLINE SPEC

35097COUNTER GEAR KIT, AUTOMATIC TRANSAXLE

main35097-12050iZZE122..ATM..ARL200404-200510

main35097-20070iZZE121..ATM..GEN200008-200209

main35097-52010iNZE120..ATM200008-200011

main35097-52011iNZE120..ATM200209-200404

35662BHUB, 2ND BRAKE

main35662-52010iNZE120..ATM..GCC200008-200209

35706FRACE, THRUST BEARING (FOR SUN GEAR REAR)

main35789-52050iNZE120..ATM..GCC200008-200209

35706GBEARING, THRUST (FOR SUN GEAR REAR)

main90374-18004iNZE120..ATM..GCC200008-200209

35720GEAR ASSY, FRONT PLANETARY

main35720-12030iZZE121..ATM200008-200103

main35720-12050iZZE122..ATM200008-200103

main35720-17010iZZE121..ATM..GEN; ZZE122..LHD..SED..ATM..GEN; ZZE122..LHD..WG..ATM..GEN; ZZE122..RHD..ATM;ZZE122..ATM..GCC200210-200404

UNLEADED GASOLINE SPEC

35720GGEAR ASSY, PLANETARY

main35720-52010iNZE120..ATM200008-200404

main35720-52020iNZE121..ATM;ZZE122..ATM..GCC200404-200508

main35720-52021iNZE121..ATM;ZZE122..ATM..GCC200508-200708

35720HRACE, THRUST BEARING(FOR PLANETARY GEAR)

main35789-52010iNZE120..ATM..GCC200008-200209

35720JBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT)

main90374-17001iNZE120..ATM200404-200708

main90374-33006iNZE121..ATM;ZZE122..ATM..GCC200404-200708

35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)

main90374-33007iNZE121..ATM200008-200209

main90374-42006iNZE120..ATM200008-200404

35730GEAR ASSY, REAR PLANETARY SUN

main35730-52010iNZE120..ATM200008-200404

main35730-52020iNZE121..ATM;ZZE122..ATM..GCC200209-200404

35737WASHER, PLANETARY CARRIER THRUST

main35737-52010iNZE120..ATM..GCC200008-200209

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-12010×2iZZE121..ATM..PKN200008-200507

main35738-52020iNZE120..ATM200209-200404

35743GEAR, FRONT PLANETARY RING

main35743-32040iZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN200008-200209

35743KGEAR, PLANETARY RING

main35743-52010iNZE120..ATM..GCC200008-200209

35762EFLANGE, PLANETARY RING GEAR

main35762-52010iNZE120..ATM..GCC200008-200209

35762FRING, HOLE SNAP(FOR PLANETARY RING GEAR)

main90520-89003iNZE120..ATM..GCC200008-200209

35782HNUT(FOR COUNTER DRIVE GEAR)

main90179-22021iZZE12#..ATM..(ARL,GEN,PKN)200008-200507

main90179-40008iZZE122..ATM..GCC200108-200111

*FGR=3.941

main90179-40009iZZE122..ATM..ARL200510-200708

main90179-44001iNZE120..ATM200008-200404

35789RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT)

main35789-12040iZZE121..ATM..PKN200008-200507

main35789-52020iNZE120..ATM..GEN200008-200404

35789BRACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE REAR)

main35789-52040iNZE120..ATM..GCC200008-200209

35791ACLUTCH, 1 WAY, NO.1

main35791-52010iNZE120..ATM..GCC200008-200209

35791BRING, HOLE SNAP(FOR 1 WAY CLUTCH)

main90520-69003iNZE120..ATM..GCC200008-200209

35793BRETAINER, 1 WAY CLUTCH

main35793-52010iNZE120..ATM..GCC200008-200209

22 parts on this diagram · 4 diagrams in section
