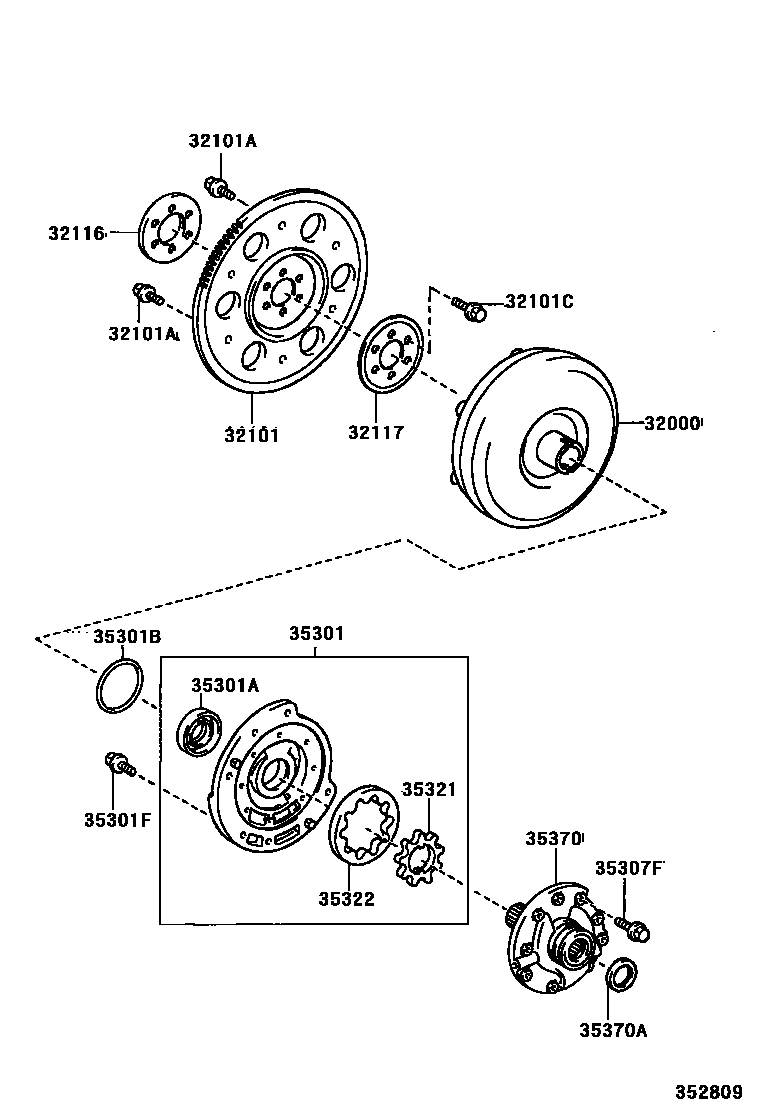

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1U441E 0002 1U340E,U341E 0005 1A245E,A246E 0007 1U341E,UNLEADED GASOLINE SPEC

32000CONVERTER ASSY, TORQUE

main32000-12340iNZE121..ATM200404-200612

main32000-12341iNZE121..ATM200612-200708

main32000-12350iZZE121..ATM200008-200507

main32000-12360iZZE122..ATM..(GCC,GEN)200404-200708

*FGR=4.058

main32000-12380iZZE122..ATM..ARL;ZZE122..LHD..WG..ATM..GEN200110-200404

main32000-32160iZZE122..ATM..GCC200108-200209

*FGR=3.941

main32000-52030iNZE120..ATM200404-200602

main32000-52120iNZE120..ATM200602-200708

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12090iZZE121..ATM..PKN;ZZE122..ATM..ARL;ZZE122..LHD..ATM..GEN200008-200302

main32101-12091iZZE121..ATM..PKN;ZZE122..SED..ATM..ARL; ZZE122..ATM..ARL;ZZE122..LHD..ATM..GEN; ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN)200302-200404

main32101-52020iNZE121..ATM200008-200209

main32101-52021iNZE121..ATM200209-200404

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08107iNZE120..ATM..GEN;ZZE122..ATM..ARL;ZZE122..LHD..WG..ATM..GEN;ZZE122..LHD..ATM..GLI..GEN200008-200404

*8-1.25PX12-8.4,GREEN

main90109-08113iZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN)200404

*8-1.25PX12-8.4,GREEN

main90119-08269×5iNZE120..ATM..GEN;ZZE122..ATM..ARL;ZZE122..LHD..WG..ATM..GEN;ZZE122..LHD..ATM..GLI..GEN200008-200404

*8-1.25PX12-8,BLACK

main90119-08498×5iNZE120..ATM..GEN; ZZE122..ATM..ARL;ZZE122..LHD..ATM..GEN200008-200404

*8-1.25PX12-8,YELLOW GREEN

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×8iNZE12#..ATM; ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN)200404

*10-1.25PX18-13

32116SPACER, DRIVE PLATE, FRONT

main32116-12020iZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN200008-200209

main32116-52030iNZE121..ATM;NZE120..ATM..GCC200008-200209

32117SPACER, DRIVE PLATE, REAR

main32117-12030iZZE122..ATM..PKN200507

main32117-52030iNZE12#..ATM200404

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-20010iZZE12#..ATM..(GCC,GEN)200404-200708

main35035-52030iNZE120..ATM200209-200404

main35035-52040iNZE121..ATM; ZZE122..ATM..GCC200404-200708

UNLEADED GASOLINE SPEC

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iZZE12#..ATM200008-200507

ORANGE

main90311-38064iNZE121..ATM; ZZE122..ATM..GCC200209-200404

UNLEADED GASOLINE SPEC

main90311-38075iNZE120..ATM200209-200404

main90311-38082iZZE122..ATM..ARL200404-200510

BROWN

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99024iZZE12#..ATM..(GCC,GEN)200209-200404

main90301-99123iNZE120..ATM200404-200708

main90301-99124iNZE121..ATM; ZZE122..ATM..GCC200404-200708

UNLEADED GASOLINE SPEC

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08198×6iZZE12#..ATM200008-200507

*8-1.25PX28-28

main90105-08301×7iZZE122..ATM..PKN200507

*8-1.25PX22-20

main90105-08376×6iNZE120..ATM200404-200708

*8-1.25PX20-20

35307FBOLT (FOR STATOR SHAFT)

main90119-06559×11iNZE120..ATM; ZZE12#..ATM..(GCC,GEN)200404-200708

main90148-60027×10iNZE121..ATM; ZZE122..ATM..GCC200209-200404

UNLEADED GASOLINE SPEC

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12070iZZE122..ATM..ARL200404-200510

T=9.440-9.449

main35321-12080iZZE122..ATM..ARL200404-200510

T=9.450-9.459

main35321-12090iZZE12#..ATM..(GCC,GEN)200404-200708

T=9.460-9.470

main35321-12100iZZE12#..ATM200008-200507

T=9.471-9.480

main35321-12110iZZE12#..ATM200008-200507

T=9.481-9.490

main35321-52010iNZE120..ATM200008-200404

T=8.44-8.45,MARK 1

main35321-52020iNZE120..ATM200404-200708

T=8.45-8.46,MARK 2

main35321-52030iNZE120..ATM200404-200708

T=8.46-8.47,MARK 3

main35321-52040iNZE120..ATM200008-200404

T=8.47-8.48,MARK 4

main35321-52050iNZE120..ATM200209-200404

T=8.48-8.49,MARK 5

main35321-52060iNZE121..ATM;ZZE122..ATM..GCC200404-200708

T=9.44-9.449,MARK 1

main35321-52070iNZE121..ATM;ZZE122..ATM..GCC200404-200708

T=9.45-9.459,MARK 2

main35321-52080iZZE122..ATM..GCC200108-200209

T=9.46-9.47,MARK 3

main35321-52090iNZE121..ATM;ZZE122..ATM..GCC200404-200708

T=9.471-9.48,MARK 4

main35321-52100iZZE122..ATM..ARL200510-200708

T=9.481-9.49,MARK 5

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12060iZZE12#..ATM200008-200507

T=9.440-9.449

main35322-12070iZZE12#..ATM..(GCC,GEN)200209-200404

T=9.450-9.459

main35322-12080iZZE122..ATM..ARL200404-200510

T=9.460-9.470

main35322-12090iZZE12#..ATM200008-200507

T=9.471-9.480

main35322-12100iZZE122..ATM..ARL200404-200510

T=9.481-9.490

main35322-52010iNZE120..ATM200209-200404

T=8.44-8.45,MARK 1

main35322-52020iNZE120..ATM200209-200404

T=8.45-8.46,MARK 2

main35322-52030iNZE120..ATM200404-200708

T=8.46-8.47,MARK 3

main35322-52040iNZE120..ATM200209-200404

T=8.47-8.48,MARK 4

main35322-52050iNZE120..ATM200209-200404

T=8.48-8.49,MARK 5

main35322-52060iNZE121..ATM;ZZE122..ATM..GCC200209-200404

T=9.44-9.449,MARK 1

main35322-52070iNZE121..ATM;ZZE122..ATM..GCC200209-200404

T=9.45-9.459,MARK 2

main35322-52080iNZE121..ATM;ZZE122..ATM..GCC200209-200404

T=9.46-9.47,MARK 3

main35322-52090iNZE121..ATM;ZZE122..ATM..GCC200209-200404

T=9.471-9.48,MARK 4

main35322-52100iNZE121..ATM;ZZE122..ATM..GCC200404-200708

T=9.481-9.49,MARK 5

35370SHAFT ASSY, STATOR

main35370-12050iZZE12#..ATM200008-200110

main35370-32060iZZE12#..ATM200110-200507

main35370-52010iNZE120..ATM200209-200404

main35370-52030iNZE121..ATM; ZZE122..ATM..GCC200209-200404

UNLEADED GASOLINE SPEC

main35370-52070iZZE122..ATM..PKN200601

35370ABEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)

main90374-26003iZZE122..ATM..GCC200108-200209

main90374-32007iNZE120..ATM200404-200708

T=4.21

main90374-32008iNZE120..ATM200209-200404

T=3.62

15 parts on this diagram · 4 diagrams in section
