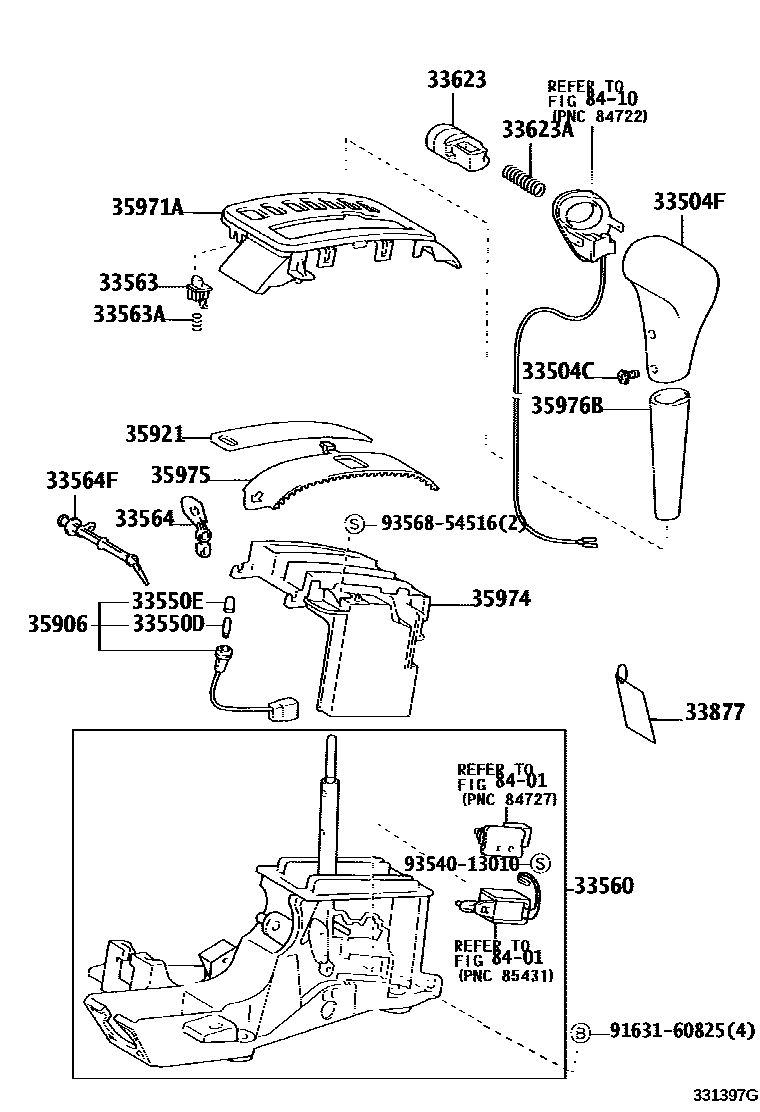

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1MIDDLE SOUTH AMERICA SPEC 0006 1 0007 1MIDDLE SOUTH AMERICA SPEC

33504CSCREW (FOR SHIFT LEVER KNOB SETTING)

main90159-40221×2iZZE122..SED..ATM..ARL200404-200702

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-B7iNZE121..MTM..LX;ZZE122..MTM..XLI..GCC;ZZE122..MTM..(CONQ,GLI,XLI)..(ARL,GEN);CE120,NZE120,ZZE121..SED..MTM..(GCC,GEN)200404-200708

DK.GRAY,TRIM1#

main33504-12180-L0iNZE121..MTM..LX;ZZE122..MTM..GEN;ZZE122..MTM..XLI..GCC;CE120,NZE120,ZZE121..MTM..(GCC,GEN)200404-200708

SANDAL WOOD,TRIM0#

main33504-22140-B2iZZE121..MTM..LX;ZZE122..WG..MTM..ARL;NZE121,ZZE122..MTM..GLI200404-200708

LEATHER,DK.GRAY,TRIM1#

main33504-22140-E2iZZE121..MTM..LX;NZE121,ZZE122..MTM..GLI200209-200404

LEATHER,SANDAL WOOD,TRIM1#

main33504-30281-E0iZZE122..ATM..PKN200507

SANDAL WOOD,TRIM0#

main33542-12310-B0iZZE122..SED..ATM..CONQ; ZZE122..WG..ATM..ARL;NZE121,ZZE12#..RHD..SED..ATM..GEN200110-200404

DK.GRAY,TRIM0#; DK.GRAY,TRIM1#

main33542-12310-E0iNZE121..ATM..LX;ZZE122..RHD..ATM..GEN200209-200404

SANDAL WOOD,TRIM0#

main33542-12320-B0iNZE120,ZZE122..LHD..SED..ATM..GEN; ZZE122..LHD..ATM..GLI..GEN;NZE120,ZZE12#..LHD..SED..ATM..(LX,XLI)200209-200404

DK.GRAY,TRIM1#

main33542-12320-E0iZZE122..LHD..ATM..GLI..GEN;NZE120,ZZE12#..LHD..ATM..(LX,XLI)200209-200404

SANDAL WOOD,TRIM0#

main33542-12330-B0iZZE122..ATM..ULT200404-200702

DK.GRAY,TRIM0#

main33542-12330-E0iNZE121,ZZE12#..RHD..ATM..(GLI,LX)200209-200404

LEATHER,SANDAL WOOD,TRIM0#

main33542-12340-B0iZZE12#..LHD..ATM..(GLI,LX); ZZE122..LHD..ATM..GLI..GEN200209-200404

LEATHER,DK.GRAY,TRIM1#; W/4-SPOKE STEERING WHEEL,DK.GRAY,TRIM1#

main33542-12340-E0iZZE12#..LHD..ATM..(GLI,LX)200209-200404

LEATHER,SANDAL WOOD,TRIM0#

33550DBULB, POSITION INDICATOR LAMP

main35955-74010iZZE121..LHD..ATM..LX;NZE120,ZZE12#..ATM..(CONQ,GLI,SESAL,ULT,XLI)200008-200507

12V 1.4W

main90981-11014iZZE122..ATM..PKN200507-200808

14V 1.4W

33550ECAP, POSITION INDICATOR LAMP

main35956-52030iNZE121,ZZE121..RHD..ATM..GEN200110-200507

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-12050iZZE122..ATM..ARL200110-200309

main33560-12051iNZE121,ZZE12#..RHD..ATM..GEN; ZZE122..ATM..ARL200309-200404

main33560-12060iNZE120,ZZE12#..LHD..ATM200209-200309

main33560-12061iNZE120,ZZE12#..LHD..ATM; NZE120,ZZE122..LHD..ATM..GEN200309-200404

main33560-12100×2iZZE121..ATM..PKN200202-200309

main33560-12101iZZE121..ATM..PKN200309-200507

main33560-12140iZZE122..ATM..PKN200507

33563BUTTON, SHIFT LOCK RELEASE

main33563-12180iZZE122..ATM..PKN200507

main33563-12190iNZE121,ZZE12#..RHD..ATM..GEN200209-200404

main33563-12210iNZE120,ZZE12#..LHD..ATM200404

33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)

main90501-05055iZZE122..RHD..ATM..GEN;NZE120,ZZE122..ATM..GCC;NZE121,ZZE121..ATM..GEN200008-200209

33564LINK, SHIFT LOCK RELEASE, NO.1

main33564-12130iZZE122..ATM..ARL200110-200404

main33564-12140iNZE120,ZZE12#..LHD..ATM200404

33564FLINK, SHIFT LOCK RELEASE, NO.2

main33564-12150iNZE121,ZZE12#..RHD..ATM..(ARL,GEN)200008-200404

33623BUTTON, SHIFT LEVER KNOB

main33623-12160iNZE120,ZZE122..ATM..XLI..GCC; ZZE12#..LHD..ATM..(GLI,LX)200404-200708

LEATHER

main33623-12170-B0iZZE122..ATM..ULT200404-200702

DK.GRAY,TRIM0#

main33623-12170-E0iNZE121..ATM..LX;ZZE122..RHD..ATM..GEN200209-200404

SANDAL WOOD,TRIM0#

main33623-12180-B0iNZE120,ZZE12#..LHD..SED..ATM..GEN; NZE120,ZZE122..LHD..SED..ATM..GEN200209-200404

DK.GRAY,TRIM1#

main33623-12180-E0iNZE120,ZZE12#..LHD..ATM..GEN200209-200404

SANDAL WOOD,TRIM0#

main33623-12190iNZE121..ATM..GLI;ZZE121..RHD..ATM..GEN; NZE121..ATM..LX;ZZE122..RHD..ATM..GLI200209-200404

LEATHER

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90501-06082iZZE121..ATM..PKN200008-200507

33877LABEL, SHIFT LOCK INFORMATION, NO.1

main33877-02010iNZE121,ZZE121..ATM200008-200012

(L)

main33877-50030iZZE121..ATM..GEN;NZE120,ZZE122..ATM..GCC;NZE121,ZZE122..RHD..ATM..(GLI,XLI)200008-200209

(J)

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-12190iZZE122..ATM..PKN200507

main35906-12200iZZE122..WG..ATM..ARL;NZE121,ZZE12#..RHD..ATM..GEN200404

main35906-12210iNZE120,ZZE122..LHD..ATM..GEN200008-200404

35921PLATE, CONTROL POSITION INDICATOR

main35921-12520iZZE122..ATM..PKN200507

main35921-12530iZZE121..ATM..PKN200202-200507

main35921-12550iNZE120,ZZE122..LHD..ATM..GEN200008-200404

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-12470iZZE122..ATM..PKN200507

main35971-12480iZZE122..ATM..ARL200110-200404

main35971-12490iZZE121..LHD..ATM;NZE120,ZZE122..ATM..GCC200008-200209

35974HOUSING, POSITION INDICATOR, LOWER

main35974-12240iNZE121,ZZE12#..RHD..ATM..GEN200008-200209

main35974-12250iNZE120,ZZE122..LHD..ATM..GEN200008-200404

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-12290iZZE122..WG..ATM..ARL;NZE121,ZZE12#..RHD..ATM..GEN200404

main35975-12300iNZE120,ZZE122..LHD..ATM..GEN200008-200404

main35975-30270iZZE122..ATM..PKN200507

35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)

main35976-12120-B0iZZE122..SED..ATM..ARL; ZZE122..WG..ATM..ARL;NZE121,ZZE12#..RHD..SED..ATM..GEN200110-200404

DK.GRAY,TRIM0#; DK.GRAY,TRIM1#

main35976-12120-E0iNZE121,ZZE12#..RHD..ATM..GEN200404-200708

SANDAL WOOD,TRIM0#

main35976-12130-B0iNZE120,ZZE12#..LHD..SED..ATM; NZE120,ZZE122..LHD..SED..ATM..GEN200209-200404

DK.GRAY,TRIM1#

main35976-12130-E0iNZE120,ZZE12#..LHD..ATM200209-200404

SANDAL WOOD,TRIM0#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9163160825

main91631-60825

9354013010

main93540-13010

9356854516

main93568-54516

23 parts on this diagram · 7 diagrams in section
