CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-12450iCE120,NZE120,ZZE121..MTM..PKN200202-200507

main31301-12470iZZE121..LHD..MTM;NZE120,ZZE122..MTM..GCC200008-200209

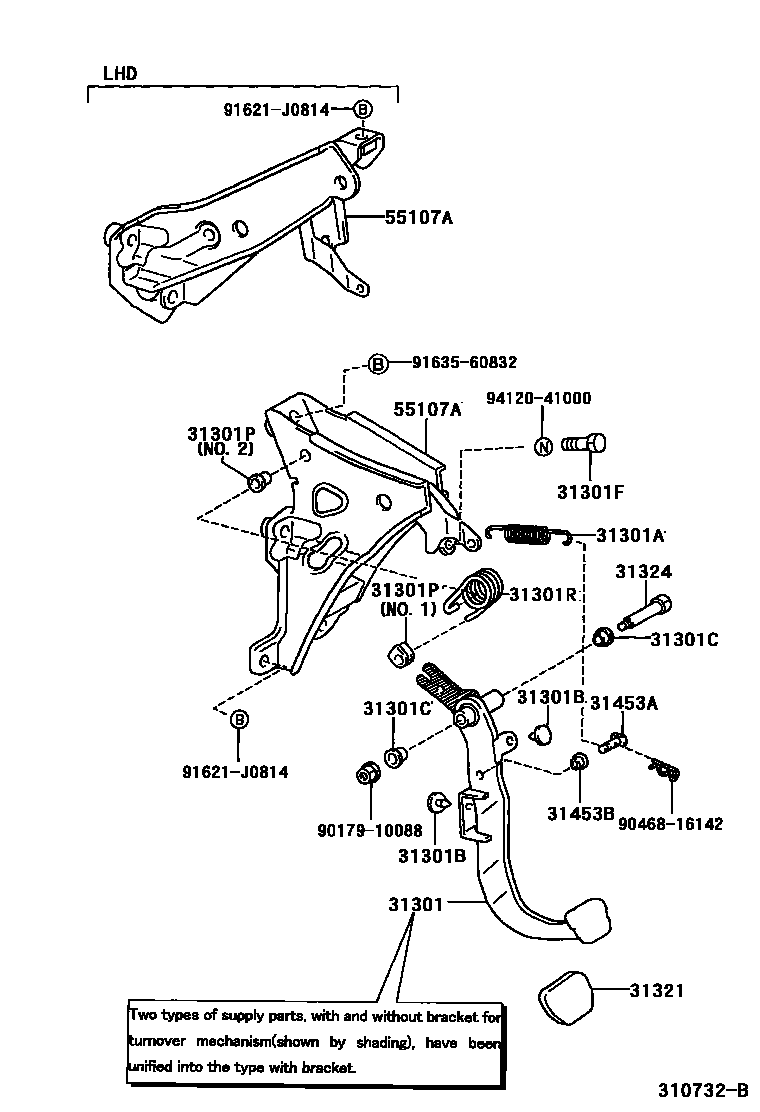

REFER TO THE COMMENT IN THE ILLUSTRATION

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14050iCE120,NZE120,ZZE121..MTM..PKN200008-200507

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036×2iCE120,NZE120,ZZE12#..LHD..MTM; ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..RHD..MTM..GEN200404

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..MTM..(GCC,GEN)200404

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iCE120,NZE120,ZZE121..MTM..PKN200008-200507

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90386-05017iZZE122..MTM..ARL;ZZE122..LHD..MTM..GEN200008-200404

NO.1

main90389-05019iZZE122..MTM..PKN200507

NO.2

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90949-03100iZZE122..MTM..PKN200507

31321PAD, CLUTCH PEDAL

main31321-52010iZZE122..MTM..ARL;CE120,NZE120,ZZE122..LHD..MTM..GEN200008-200404

31324SHAFT, CLUTCH PEDAL

main90109-10167iZZE122..MTM..ARL;CE120,NZE120,ZZE122..LHD..MTM..GEN200008-200404

main90109-10174iCE120,NZE120,ZZE122..MTM..PKN200707

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08243iZZE121..MTM..GEN;NZE120,ZZE122..MTM..GCC;CE120,NZE12#,ZZE122..RHD..MTM..GEN200008-200209

L=30

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iZZE121..MTM..GEN;NZE120,ZZE122..MTM..GCC;CE120,NZE12#,ZZE122..RHD..MTM..GEN200008-200209

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-12200iCE120,NZE12#,ZZE12#..RHD..MTM200008-200507

main55107-12220iCE120,NZE120,ZZE12#..LHD..MTM200008-200404

9017910088

main90179-10088

9046816142

main90468-16142

91621J0814

main91621-J0814

9163560832

main91635-60832

9412041000

main94120-41000

17 parts on this diagram · 5 diagrams in section
