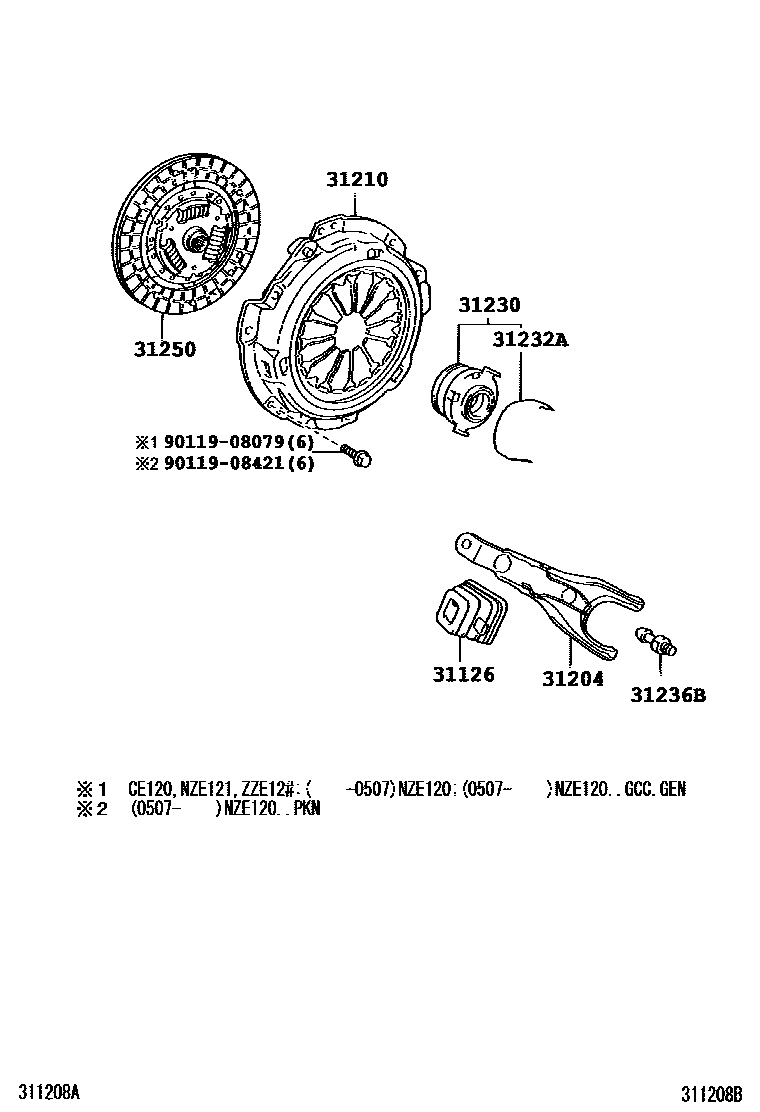

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iZZE121..RHD..MTM..GEN200104-200507

main31126-32010iCE120200110-200507

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-17010iZZE122..MTM..PKN200507

main31204-20100iCE120..GEN200209-200404

main31204-52010iNZE12#..MTM..(GCC,GEN)200209-200404

31210COVER ASSY, CLUTCH

main31210-12191iNZE121..MTM200404-200405

main31210-12192iNZE121..MTM200406-200609

main31210-12201iZZE121..MTM..PKN200008-200507

main31210-12210iNZE120..MTM..(GCC,GEN)200404-200607

main31210-12221iZZE122..MTM..(ARL,GCC,GEN)200404-200708

main31210-12270iCE120..GEN; CE120..PKN200702-200703

main31210-12271iCE120..GEN; CE120..PKN200703-200705

main31210-12272iCE120..PKN200706

main31210-12280iNZE120..PKN200608-200711

main31210-12281iNZE120200712-200807

main31210-12282iNZE120200808

main31210-12310iZZE122..MTM200709

main31210-32062iCE120..PKN200507-200701

main31210-52050iZZE121..MTM200507-200602

main31210-52051iZZE121..MTM200603-200702

main31210-52052iZZE121..MTM200703-200708

main31210-52070iNZE121..MTM200609-200702

main31210-52071iNZE121..MTM200703-200708

31230BEARING ASSY, CLUTCH RELEASE

main31230-12180iNZE12#..MTM..(GCC,GEN)200209-200404

main31230-12181iNZE120200812

main31230-12191iZZE121..RHD..MTM..GEN200104-200507

main31230-20170iCE120200110-200507

main31230-33020iCE120..GEN; CE120..PKN200608

31232ACLIP, RELEASE BEARING HUB

main31232-12070iZZE122..SED..MTM..ARL200404-200702

main31232-12080iNZE12#..MTM200008-200507

main31232-20020iCE120..GEN200209-200404

31236BSUPPORT, RELEASE FORK

main31236-12020iNZE12#,ZZE122..MTM;ZZE121..LHD..MTM..LX;ZZE121..MTM..(SESAL,XLI)200008-200507

main31236-20060iCE120200110-200507

31250DISC ASSY, CLUTCH

main31250-12271iCE120..GEN200209-200402

main31250-12272iCE120..GEN200404-200707

main31250-12360iNZE121,ZZE122..MTM..(ARL,GCC,GEN)200404-200511

main31250-12361iNZE121..MTM200512

main31250-12391iNZE120..MTM200008-200206

main31250-12392iNZE120..MTM..(GCC,GEN)200209-200404

main31250-12393iNZE120200901

main31250-12540iZZE122..MTM..PKN; ZZE122..WG..MTM..ARL;ZZE122..MTM..(GCC,GEN)200512

main31250-12550iZZE121..MTM200512

main31250-12590iCE120; CE120..GEN200708

main31250-20280iZZE121..MTM200008-200507

9011908079

main90119-08079

9011908421

main90119-08421

9 parts on this diagram · 1 diagram in section
