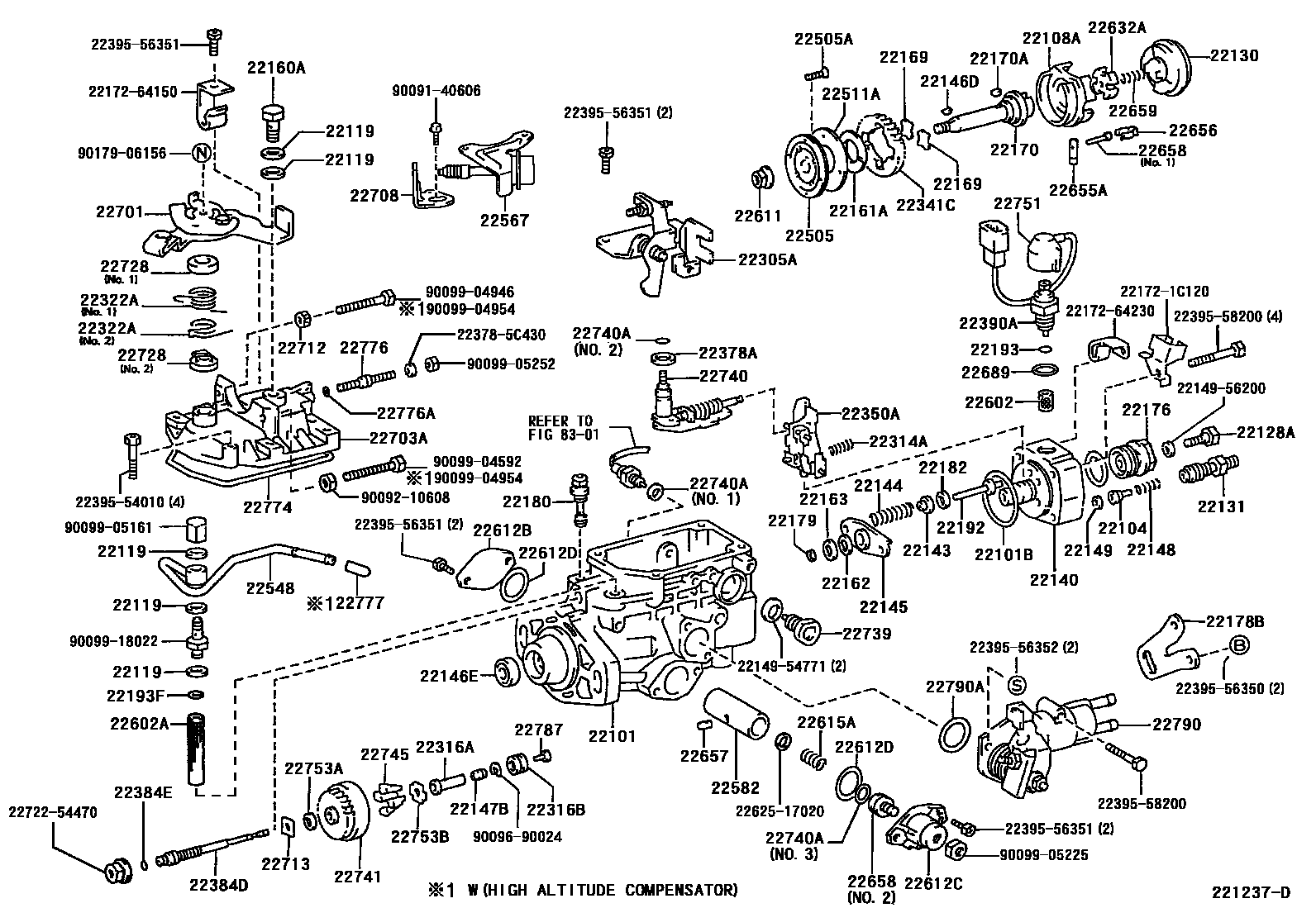

INJECTION PUMP BODY
22101HOUSING SUB-ASSY, INJECTION PUMP
W(HIGH ALTITUDE COMPENSATOR)
22101BRING, O(FOR INJECTION PUMP HOUSING)
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22108ARING SUB-ASSY, ROLLER
22119WASHER, AIR BLEEDER NIPPLE
22128ABOLT, DISTRIBUTIVE HEAD
22130CAMPLATE SUB-ASSY, FACE
22131HOLDER, DELIVERY VALVE
22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP
22143SEAT, SPRING UPPER
22144SPRING, PUMP PLUNGER
22145SEAT, SPRING, LOWER
22146DKEY(FOR DRIVE GEAR)
22146ESEAL(FOR DRIVE SHAFT)
22147BRING, GOVERNOR SLEEVE
22148SPRING, DELIVERY VALVE
22149GASKET, DELIVERY VALVE
22160ASCREW SUB-ASSY, OVER FLOW, NO.2
22161AWASHER, DRIVE SHAFT
22162PLATE, PLUNGER UPPER
22163PLATE, PLUNGER LOWER
22169JOINT, RUBBER
22170SHAFT SUB-ASSY, DRIVE
22170AKEY(FOR DRIVE SHAFT)
22176PLUG, DISTRIBUTIVE HEAD
22178BBRACKET(FOR INJECTION PUMP ASSY)
22179SHIM, PLUNGER ADJUSTING
T=1.9
T=2.0
T=2.1
T=2.2
T=2.3
T=2.4
T=2.5
T=2.6
T=2.7
T=2.8
T=2.9
22180VALVE SUB-ASSY, REGULATOR
22182PLATE, TAPPET ADJUSTING SHIM
T=0.5
T=0.8
T=1.0
T=1.2
T=1.5
T=1.8
T=2.0
22192GUIDE SUB-ASSY, PLUNGER SPRING
22193RING, O(FOR LEVER CONNECTING PIN)
22193FRING, O(FOR FUEL INJECTION PUMP FILTER)
22305AIDLE-UP SUB-ASSY
22314ASPRING, LEVER SUPPORT
22316ASLEEVE, GOVERNOR
ID=0.85
ID=0.55,W(HIGH ALTITUDE COMPENSATOR)
ID=0.60,W(HIGH ALTITUDE COMPENSATOR)
ID=0.65,W(HIGH ALTITUDE COMPENSATOR)
ID=0.90
ID=0.80
ID=0.95
22316BBEARING, BALL(FOR GOVERNOR SLEEVE)
22322ASPRING, RETURN
NO.1
NO.2
W(HIGH ALTITUDE COMPENSATOR)
22341CGEAR, GOVERNOR DRIVE
22350AGOVERNOR ASSY, TORQUE CONTROL
22378AWASHER, GOVERNOR THRUST
22384DSHAFT, GOVERNOR
22384ERING, O(FOR GOVERNOR MAIN SHAFT)
22390ASOLENOID ASSY, FUEL CUT
22505PUMP SUB-ASSY, FUEL FEED
22505ASCREW(FOR FUEL FEED PUMP)
22511ACOVER, FEED PUMP
22548NIPPLE, SWIVEL
22567DASH POT, INJECTION PUMP
22582PISTON ASSY, TIMER
W(HIGH ALTITUDE COMPENSATOR)
22602FILTER SUB-ASSY, FUEL INJECTION PUMP
22602AFILTER SUB-ASSY, FUEL INJECTION PUMP, NO.2
22611NUT, TIMER ROUND
22612BCOVER, TIMER
22612CCOVER, TIMER
22612DRING, O(FOR TIMER COVER)
22615ASPRING, TIMER OUTER
K=1.7,L=27.9
K=0.15,L=32.5
22632ACOUPLING, INJECTION PUMP
22655APIN, TIMER SLIDE
22656CLIP, TIMER
22657CLIP, TIMER
22659SPRING, COUPLING
22689WASHER(FOR SWIVEL NIPPLE)
22701LEVER SUB-ASSY, ADJUSTING
MARK 669
MARK 670
MARK 723
MARK 724
22703ACOVER SUB-ASSY, GOVERNOR
W(HIGH ALTITUDE COMPENSATOR)
22708LEVER, ADJUSTING
22712NUT, ROCK
22713WASHER, GOVERNOR GEAR ADJUSTING
T=1.05
T=1.25
T=1.45
T=1.65
T=1.85
22728GUIDE, RETURN SPRING
NO.1
NO.2
22739BOLT, GOVERNOR LINK SUPPORT
22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING
W(HIGH ALTITUDE COMPENSATOR)
22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)
NO.3
NO.2
NO.1
22741HOLDER SUB-ASSY, FLYWEIGHT
22745FLYWEIGHT, DISTRIBUTIVE PUMP
22751WIRE SUB-ASSY, FUEL CUT SOLENOID
22753AWASHER, FLYWEIGHT, NO.1
22753BWASHER, FLYWEIGHT, NO.2
22774GASKET, GOVERNOR COVER
22776SCREW, SMOKE SET ADJUSTING
22776ARING, O(FOR SMOKE SET SCREW)
22777CAP, RUBBER(FOR BELLOWS)
22787PLUG, GOVERNOR SLEEVE
L=3.3,W(HIGH ALTITUDE COMPENSATOR)
L=3.4
L=3.0
L=3.1,W(HIGH ALTITUDE COMPENSATOR)
L=3.2
L=2.2,W(HIGH ALTITUDE COMPENSATOR)
L=2.3
L=2.4,W(HIGH ALTITUDE COMPENSATOR)
L=2.5
L=2.6,W(HIGH ALTITUDE COMPENSATOR)
L=2.7
L=2.8
L=2.9
22790COVER SUB-ASSY, TIMER
22790ARING, O(FOR TIMER COVER)
8301METER
2214954771GASKET, DELIVERY VALVE
main22149-54771
2214956200GASKET, DELIVERY VALVE
main22149-56200
221721C120CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-1C120
2217264150CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-64150
2217264230CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-64230
223785C430WASHER, DRAIN SCREW
main22378-5C430
2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54010
2239556350BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56350
2239556351BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56351
2239556352BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56352
2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-58200
2262517020WASHER, TIMER SENSOR ADJUSTING
main22625-17020
2272254470NUT, GOVERNOR SHAFT ROCK
main22722-54470
9009140606
main90091-40606
9009210608
main90092-10608
9009690024
main90096-90024
9009904592
main90099-04592
9009904946
main90099-04946
9009904954
main90099-04954
9009905161
main90099-05161
9009905225
main90099-05225
9009905252
main90099-05252
9009918022
main90099-18022
9017906156
main90179-06156
109 parts on this diagram · 2 diagrams in section
