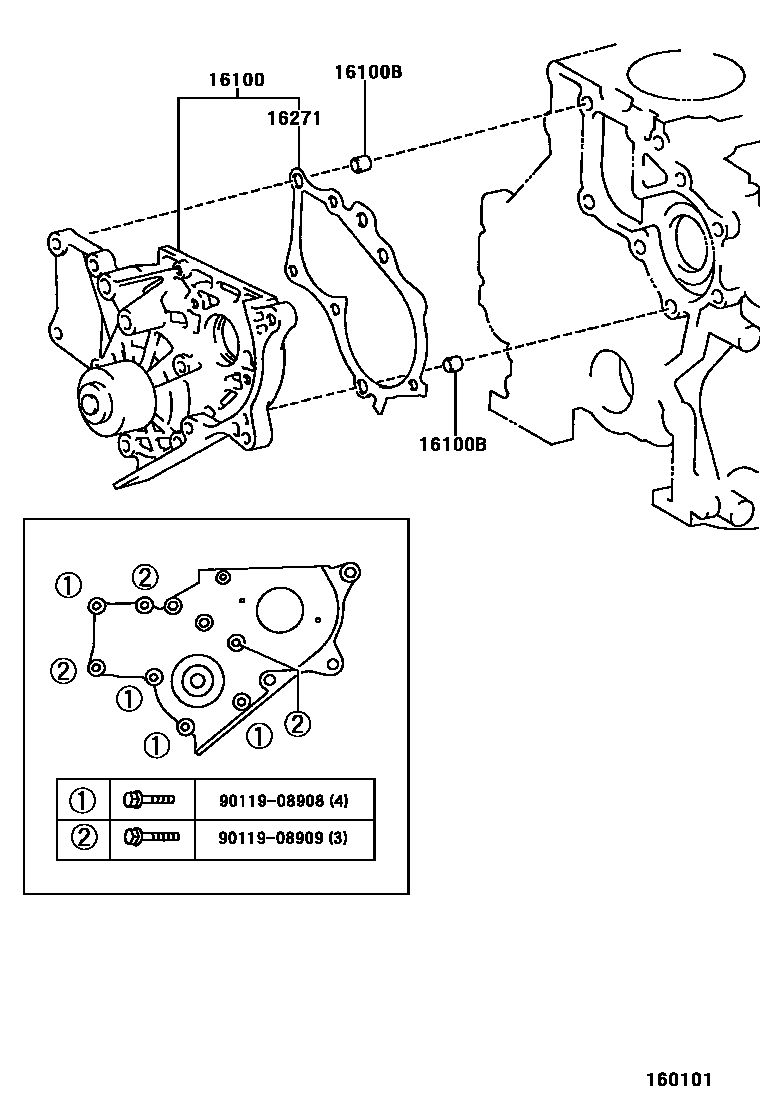

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-29095i1ZZFE,3ZZFE..ZZE12#200008-200107

main16100-29155i1NZFE,2NZFE..NZE12#..GCC,GEN200404-200506

main16100-29156i2NZFE..NZE120..PKN200608

main16100-29175i1ZZFE,3ZZFE..ZZE12#200107-200507

main16100-29415i1ZZFE..ZZE122..PKN200507

main16100-29505i2NZFE..NZE120..PKN200604-200608

main16100-69435i2C..CE120..GEN200209-200404

16100BPIN, RING(FOR WATER PUMP SET)

main90253-11021×2i2C..CE120200110-200507

16271GASKET, WATER PUMP

main16271-21020i2NZFE..NZE120..GCC;1NZFE,2NZFE..NZE12#..RHD..GEN200008-200209

main16271-64031i2C..CE120..PKN200507

9011908908

main90119-08908

9011908909

main90119-08909

5 parts on this diagram · 3 diagrams in section
