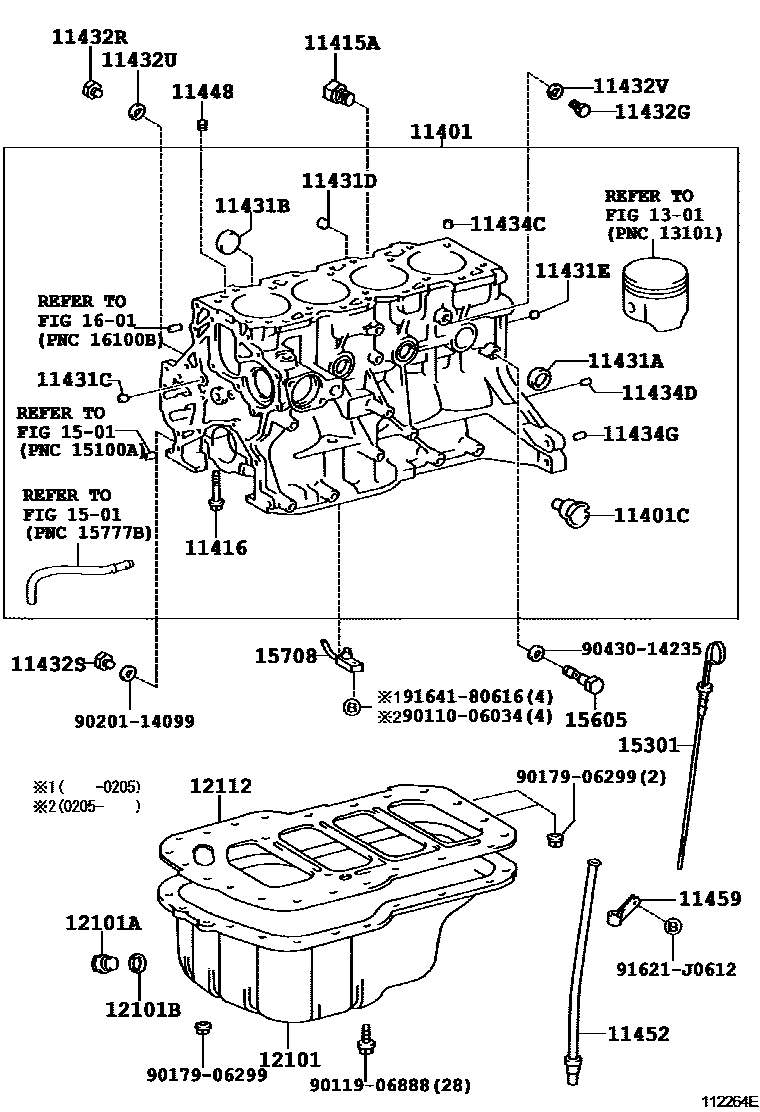

CYLINDER BLOCK

0001 1 0002 1 0003 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-29675i2NZFE..NZE120200008-200209

main11401-29686i1NZFE..NZE121200209-200212

main11401-29845i2NZFE..NZE120..PKN200507-200808

main11401-29855i1NZFE..NZE121200212-200404

main11401-69698i2C..CE120..PKN200507

main11401-80736i2C..CE120..GEN200404-200610

main11410-29018i1ZZFE..ZZE122200008-200101

main11410-29056i3ZZFE..ZZE121200008-200101

main11410-29057i3ZZFE..ZZE121..GEN200209-200212

main11410-29086i1ZZFE..ZZE122..GCC,GEN200209-200212

main11410-29096i1ZZFE..ZZE122200101-200212

main11410-29155i3ZZFE..ZZE121..GEN200212-200311

main11410-29156i3ZZFE..ZZE121..GEN200311-200404

main11410-29165i1ZZFE..ZZE122..MTM..ARL;1ZZFE..ZZE122..ATM..(ARL,GCC,GEN)200405-200708

main11410-29166i1ZZFE..ZZE122200807

main11410-29205i3ZZFE..ZZE121..GEN200404-200405

main11410-29225i1ZZFE..ZZE122..PKN200507-200604

11401CFLANGE(FOR WATER BY-PASS)

main16353-64011i2C..CE120..PKN200507

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09107i1NZFE,2NZFE..NZE12#..GCC,GEN; 1ZZFE..ZZE122..WG..ARL;1ZZFE,3ZZFE..ZZE12#..GCC,GEN200404

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90345-52003i2C..CE120..GEN200404-200708

main90910-09087i1NZFE,2NZFE..NZE12#..GCC,GEN; 1ZZFE,3ZZFE..ZZE12#..GCC,GEN200209-200404

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02125×10i2NZFE..NZE120..LHD..GEN200008-200404

main90910-02135×10i2C..CE120200110-200507

main91511-K0840×10i1ZZFE..ZZE122..PKN200507

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-63500×4i2C..CE120..PKN200507

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-63000×4i2C..CE120200110-200507

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-41800i2C..CE120200110-200507

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main96411-41800i2C..CE120..GEN200209-200404

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main96411-41800×3i2C..CE120..GEN200209-200404

11432GPLUG, W/HEAD STRAIGHT SCREW, NO.5

main90341-12006i2C..CE120200110-200507

11432RPLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)

main90341-10002i2C..CE120200110-200507

11432SPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR CYLINDER BLOCK)

main90341-14032i2C..CE120200110-200507

11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)

main90430-10027i2C..CE120200110-200507

11432VGASKET, STRAIGHT SCREW PLUG NO.2(FOR CYLINDER BLOCK)

main90430-12221i2C..CE120200110-200507

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120×2i2NZFE..NZE120..GCC;1NZFE,2NZFE..NZE12#..RHD..GEN200008-200209

L=18,OD=8

main90253-14004×2i2C..CE120..PKN200507

L=20,OD=14

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06068×2i2C..CE120200110-200507

L=11,OD=6

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113×2i2NZFE..NZE120..GCC;1NZFE,2NZFE..NZE12#..RHD..GEN200008-200209

11448ORIFICE, CYLINDER BLOCK OIL

main11448-64020i2C..CE120..GEN200209-200404

11452GUIDE, OIL LEVEL GAGE

main11452-21030i2NZFE..NZE120..PKN200008-200507

main11452-22030i1ZZFE..ZZE122..PKN200507-200808

main11452-22031i1ZZFE..ZZE122200808

main11452-64030i2C..CE120..GEN200404

11459SUPPORT, OIL LEVEL GAGE GUIDE

main11459-22010i1ZZFE..ZZE122200808

main90929-01049i2C..CE120..GEN200209-200404

12101PAN SUB-ASSY, OIL

main12101-22024i1ZZFE,3ZZFE..ZZE12#..GCC,GEN200209-200404

main12101-64141i2C..CE120200110-200507

main12111-21032i1NZFE,2NZFE..NZE12#200008-200104

main12111-21033i1NZFE,2NZFE..NZE12#..GCC,GEN200404

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2NZFE..NZE120..GCC;1NZFE,2NZFE..NZE12#..RHD..GEN; 2NZFE..NZE120..LHD..GEN200210-200404

MIDDLE SOUTH AMERICA SPEC

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2NZFE..NZE120..LHD..GEN200008-200404

12112PAN, OIL NO.2

main12112-64040i2C..CE120..GEN200404

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15301GAGE SUB-ASSY, OIL LEVEL

main15301-21030i2NZFE..NZE120..GCC;1NZFE,2NZFE..NZE12#..RHD..GEN200008-200209

main15301-21040i1NZFE,2NZFE..NZE12#..GCC,GEN; 2NZFE..NZE120..PKN200709

main15301-22030i1ZZFE,3ZZFE..ZZE12#200008-200507

main15301-22050i1ZZFE..ZZE122..PKN; 1ZZFE..ZZE122..WG..ARL;1ZZFE,3ZZFE..ZZE12#..GCC,GEN200507

main15301-64090i2C..CE120..GEN200404

15605VALVE SUB-ASSY, OIL CHECK

main15703-27010i2C..CE120200110-200507

15708NOZZLE SUB-ASSY, OIL, NO.1

main15790-64021×4i2C..CE120200110-200205

main15790-64030×4i2C..CE120200205-200507

1601WATER PUMP

→ Go to FIG 16-01

9011006034

main90110-06034

9011906888

main90119-06888

9017906299

main90179-06299

9020114099

main90201-14099

9043014235

main90430-14235

91621J0612

main91621-J0612

9164180616

main91641-80616

38 parts on this diagram · 3 diagrams in section
