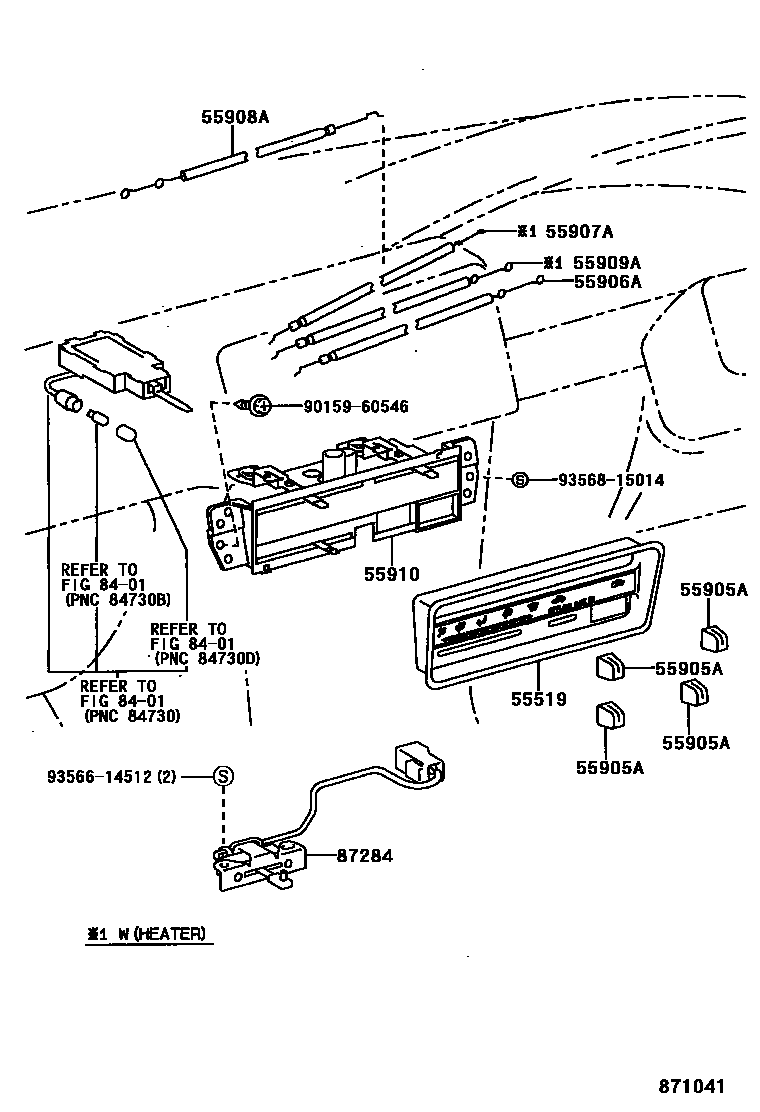

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1LEVER TYPE 0002 1INDONESIA,THAILAND,MALAYSIA S0003 1LEVER TYPE 0004 1PUSH TYPE 0005 1INDONESIA,THAILAND,MALAYSIA S0006 1PUSH TYPE 0007 1PUSH TYPE,W(AUTO AIR CONDITIO0008 1AIR DUCT 0009 1AIR DUCT 0010 1AIR DUCT 0011 1AUTO AIR CONDITIONER SENSOR

55519PLATE, HEATER CONTROL NAME

main55519-12090iAE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN; AE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN199705-199910

W(AIR CONDITIONER)

main55519-12110iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199705-199910

55905AKNOB, HEATER CONTROL

main55905-20380×2iAE111..GLI,SEG199511-199704

PUSH TYPE

main55905-89115iAE111;AE110,EE11#..XL,XLI199505-199704

LEVER TYPE; LEVER TYPE,DEALER OPTION; LEVER TYPE,W(HEATER)

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-12360iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199910

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

main55906-12380iAE111,112,CE110,EE11#..LHD199704

main55906-12390iAE112,CE110,EE111..RHD..(ARL,GEN);AE111,EE110..RHD..(4FC,5F)..(GL,GLI,XL,XLI)..GEN199704-200109

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-12420iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199910

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

main55907-12450iEE110..LHD..(GCC,GEN);AE112,CE110,EE111..LHD..(GCC,GEN,VEN);AE111,ZZE11#..LHD..SED..(GCC,GEN,TUR,VEN)199704-200208

main55907-12470iAE111..RHD..WG..5F;AE110,112..XLI..(IDN,TH);AE112,CE110..RHD..(GLI,XL);AE111,EE11#..RHD..SED..(GL,GLI,XL,XLI)199704-200207

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-12290iAE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)199704-200208

main55908-12310iAE111;AE110,EE11#..XL,XLI199505-199704

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-12280iAE110..TH;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN)199704

main55909-12290iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199910

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-12620iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199910

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC & W(COOLER)

main55910-12630iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199910

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

main55910-12650iAE110..4FC; AE111..WG..5F;AE110,111..RHD..SED..(GLI,XLI)..GEN199901

W(AIR CONDITIONER & BOOST VENTILATOR)

main55910-12660iAE111..RHD..WG..5F;AE110,112..XLI..(IDN,TH);AE112,CE110..RHD..(GLI,XL);AE111,EE11#..RHD..SED..(GL,GLI,XL,XLI)199704-200207

W(HEATER)

main55910-12670iEE110..RHD..5F;AE111,CE110,EE111..RHD..(GL,GLI,XL,XLI)..GEN199704-200109

W(COOLER)

main55910-12680iAE111,CE110,EE11#..RHD..(GL,GLI,XL,XLI)..GEN199704-199910

main55910-12690iAE111..LHD..SED..(GCC,GEN,VEN);AE112,CE110,EE110..LHD..(GCC,GEN); AE112..GCC;AE111,CE110,EE110..LHD199704-199807

W(HEATER)

main55910-12700iAE111..LHD..SED..(GCC,GEN,VEN);AE112,CE110,EE110..LHD..(GCC,GEN); AE112,CE110..LHD..(GCC,GEN);AE111,EE110..LHD..(GCC,GEN,GENKD,PHL,VEN)199704-199812

W(COOLER)

main55910-12710iAE111,112,CE110,EE110..LHD..(GCC,GEN,GENKD)199704-200207

main55910-12720iAE112..SEG..IDN199812-199901

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87284RESISTOR SUB-ASSY, VARIABLE

main88032-12160iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199910

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

main88032-12170iAE111..WG..5F;AE112,CE110..(SEG,XL)..(GEN,PHL);AE111,EE111..SED..(GEN,GENKD,MA,PHL,TH,VEN);AE110,112,EE110..(GL,STD,XL,XLI)..(GEN,GENKD,IDN,PHL,TH,VEN)199812

main88032-12180iAE111..GLI..TH;AE112..SEG..IDN199901-199905

PUSH TYPE

9015960546

main90159-60546

9356614512

main93566-14512

9356815014

main93568-15014

12 parts on this diagram · 11 diagrams in section
