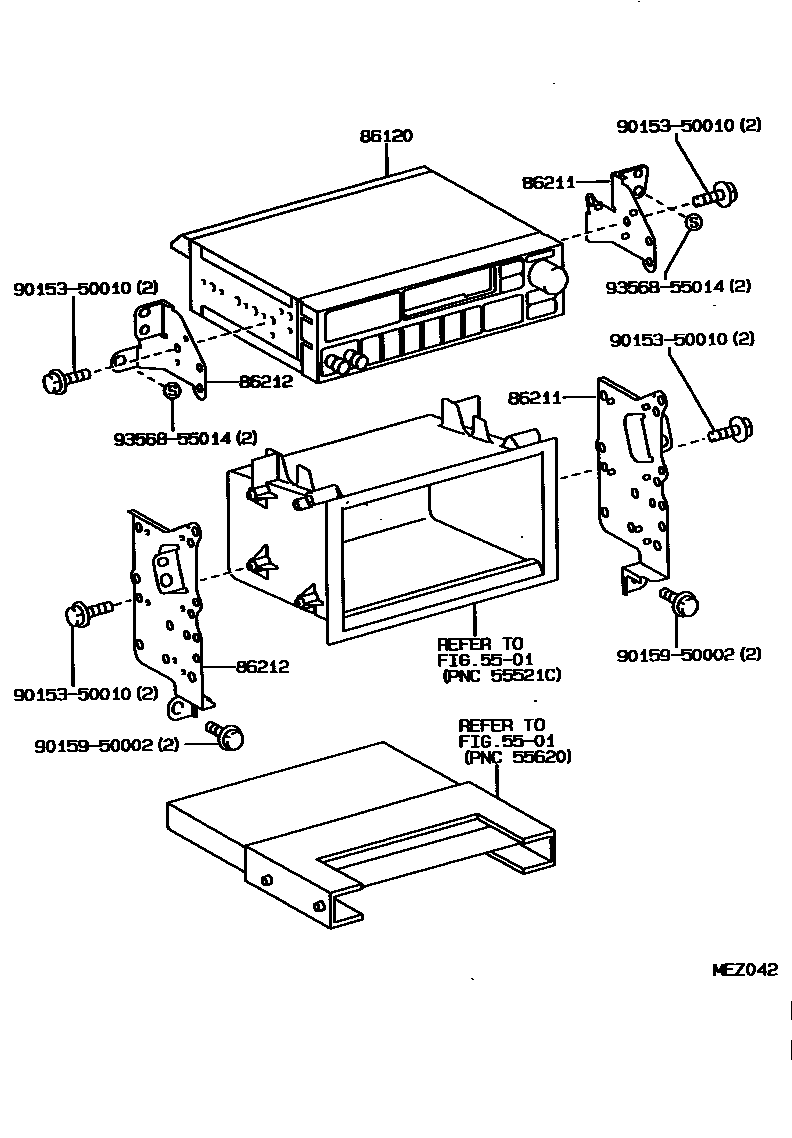

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

86120RECEIVER ASSY, RADIO

main86120-08020iAE111,CE110,EE110..GEN; AE111..RHD..WG;EE110..MTM..GEN;EE110..LHD..3FC;AE111,CE110..SED..GEN199804-199808

FUJITSU TEN,ID=11801,AM/FM CD

main86120-10460iEE110..GENKD199804-200207

MATSUSHITA, ID=52202,AM/FM

main86120-10470iAE111,112,CE110,EE110..GCC,GEN199808-199910

MATSUSHITA, ID=57207,AM/SW1/SW2 CASSETTE

main86120-16650iAE111,112,CE110,EE110..GEN199808-199910

MATSUSHITA, ID=52201,AM/FM

main86120-16660iAE110..4FC; EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE11#,CE110,EE111..GCC,GEN199909

FUJITSU TEN,ID=17409,AM/FM CASSETTE 2 SPEAKER

main86120-16670iEE11#..VEN199808-200002

FUJITSU TEN,ID=17410,AM/FM CASSETTE 2 SPEAKER

main86120-16680iAE111,112,EE110..GCC199808-200008

MATSUSHITA, ID=57206,AM/FM/SW1/SW2

main86120-1A020iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199705-199910

FUJITSU TEN,ID=12201,INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC,AM/FM

main86120-1A030iAE11#,CE110,EE11#..(3FC,4FC,5F)..(GCC,GEN,IDN,MA,NZ,TH); AE110..4FC..GEN; AE111..RHD..WG;EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE111..SED..(GCC,GEN);AE110,112,CE110,EE111..GCC,GEN199807-199808

FUJITSU TEN,AM/FM CST 4SP

main86120-1A040iAE111,EE111..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(GL,GLI,STD,XL)..GEN; AE111..RHD..WG;EE110..MTM..GEN;EE110..LHD..3FC;AE110,111,CE110,EE111..SED..GEN199704-199808

FUJITSU TEN,ID=12101,AM

main86120-1A120iZZE11#200005-200201

FUJITSU TEN

main86120-1A130iZZE11#200005-200201

MATSUSHITA,ID=53801

main86120-2A070iAE111,CE110,EE110..GEN; AE111..RHD..WG;EE110..MTM..GEN;EE110..LHD..3FC;AE111,CE110..SED..GEN199804-199808

MATSUSHITA,AM/FM

main86120-2A190iAE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(GCC,GEN); AE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE112,CE110,EE110..(4F,4FC,5F)..(GCC,GEN)199704-199808

MATSUSHITA,ID=57202,AM/SW1/SW2 CASSETTE

main86120-2B360iAE111,CE110,EE110..(GL,GLI,XL,XLI)..GEN; AE111..RHD..WG;EE110..5F..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..GEN199704-199808

MATSUSHITA,ID=57400,AM/FM CST 4SP,MATSUSHITA

main86120-2B380iAE110..GLI;AE110,111..XLI..TH;AE111,112,CE110,EE11#..(GL,GLI,STD,XL,XLI)..(GCC,GEN); AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN);AE110,112,CE110,EE111..GCC,GEN199704-199808

FUJITSU TEN,ID=17202,AM/FM CST 2SP

main86120-2B610iAE110..4FC..GEN; AE111..WG..5F;EE110..LHD..3FC;AE112..XLI..(GCC,GEN);AE110,111,EE111..SED..(GCC,GEN);AE112,CE110,EE110..(4FC,5F)..(GL,GLI,XL)..(ARL,GCC,GEN)199808

FUJITSU TEN,ID=17411,AM/FM CASSETTE 4 SPEAKER

main86120-2B620iAE112..GEN;AE111..WG..5F;AE112,CE110..(GLI,XL)..(BZ,GEN,VEN);AE111,EE110..SED..(GL,GLI,XL,XLI)..(GEN,VEN); EE110..5F..GEN;EE110..LHD..3FC;AE111,112,CE110..GEN,VEN199808-200002

MATSUSHITA,ID=57410,AM/FM CASSETTE 4 SPEAKER

main86120-35080iAE11#,CE110,EE11#..GEN199808-199910

MATSUSHITA,ID=52100,AM

main86120-35090iEE110..VEN199805-199808

MATSUSHITA,ID=57400,AM/FM CASSETTE 2 SPEAKER

main86120-35100iAE111,112,EE110..GCC199704-199808

MATSUSHITA,ID=57401,AM/FM/SW1/SW2

main86120-60210iAE111,EE111..TUR; AE111..TUR199807-200005

MATSUSHITA, ID=58408

86211BRACKET, RADIO, NO.1

main86211-12260iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199705-199910

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC,UPPER

main86211-12280iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199705-199910

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC,LOWER

main86211-12340iAE110..4FC; EE11#..GCC,GEN,VEN;AE11#,CE110,ZZE11#..GCC,GEN,TUR,VEN; EE110..GENKD,PHL;AE111,112,EE111..BZ,GENKD,IDN,MA,PHL,TH,TUR,VEN199910

UPPER

main86211-12350iAE110..4FC..GEN; EE11#..5F..TUR199807-199910

LOWER

main86211-12360iAE112..ARL199910-200109

UPPER

86212BRACKET, RADIO, NO.2

main86212-12240iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199705-199910

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC,UPPER

main86212-12260iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199705-199910

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC,LOWER

main86212-12320iAE110..4FC; EE11#..GCC,GEN,VEN;AE11#,CE110,ZZE11#..GCC,GEN,TUR,VEN; EE110..GENKD,PHL;AE111,112,EE111..BZ,GENKD,IDN,MA,PHL,TH,TUR,VEN199910

UPPER

main86212-12330iAE110..4FC..GEN; EE11#..5F..TUR199807-199910

LOWER

main86212-12340iAE112..ARL199910-200109

UPPER

9015350010

main90153-50010

9015950002

main90159-50002

9356855014

main93568-55014
