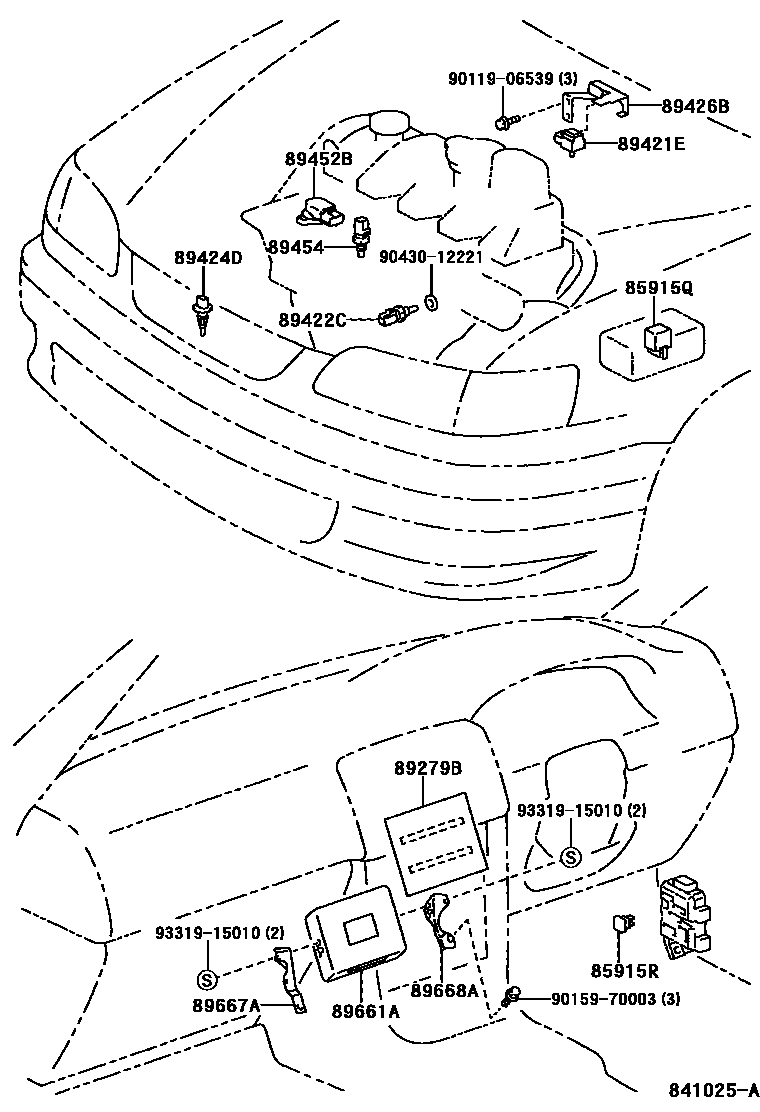

ELECTRONIC CONTROLED DIESEL (ECD)
85915QRELAY, COMPUTER (FOR DIESEL)
85915RRELAY ASSY, CIRCUIT OPENING (FOR DIESEL)
89279BCOVER, DIESEL ENGINE CONTROL COMPUTOR
89421ESENSOR, VACUUM
89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE
89424DSENSOR, INLET AIR TEMPERATURE
89426BBRACKET, VACUUM SENSOR
89452BSENSOR, THROTTLE POSITION
89454SENSOR, FUEL TEMPERATURE
89661ACOMPUTER, ENGINE CONTROL
89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1
89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2
9011906539
main90119-06539
9015970003
main90159-70003
9043012221
main90430-12221
9331915010
main93319-15010
16 parts on this diagram · 1 diagram in section
