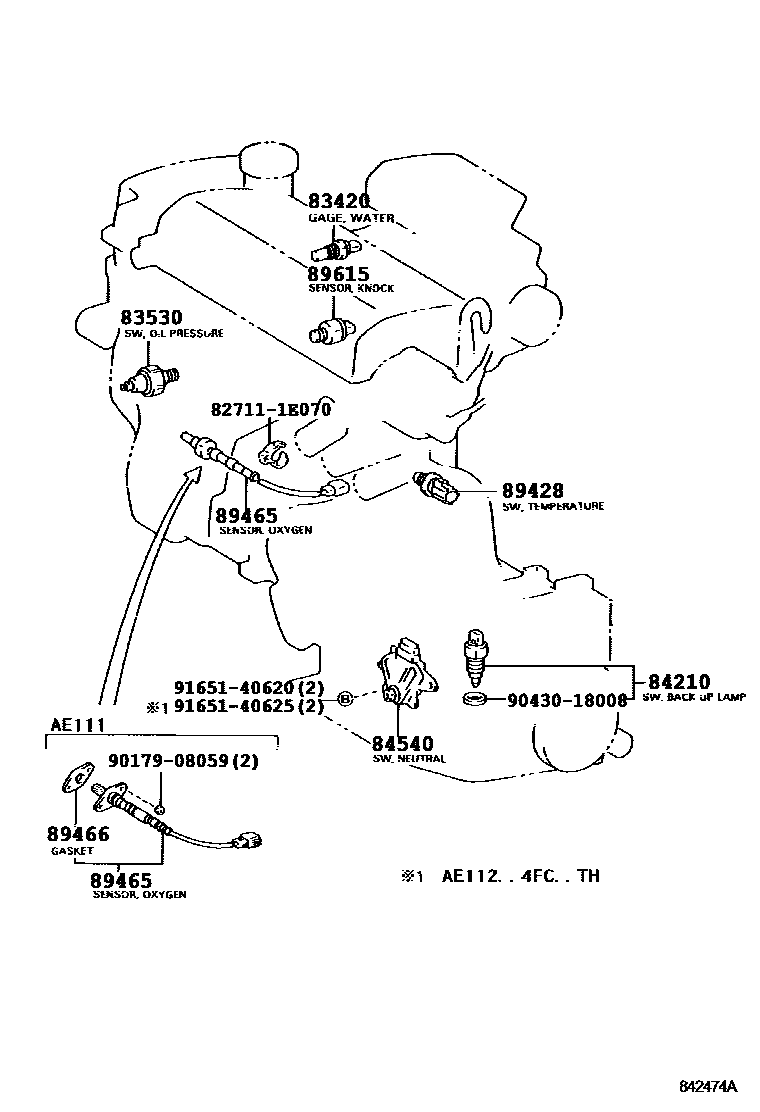

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE ROOM 0006 1INSTRUMENT PANEL SWITCH 0007 1INDONESIA,THAILAND,MALAYSIA S0008 1INSTRUMENT PANEL SWITCH 0009 1INSTRUMENT PANEL SWITCH 0010 1COWL 0011 1INDONESIA,THAILAND,MALAYSIA S0012 1COWL 0013 1COWL 0014 1COMBINATION SWITCH 0015 1COMBINATION SWITCH 0016 1ROOF,FLOOR,DOOR & LUGGAGE 0017 1ROOF,FLOOR,DOOR & LUGGAGE

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-05010iAE111..TUR199807-200005

(L)

main83420-16020iAE111,EE110..(GL,STD,XL)..(GCC,GEN)199910-200109

main83420-20020iCE110199704-199910

main83420-20040iAE110,112..ARL,GCC,GEN,VEN;AE111..RHD..(GLI,SEG,XLI)..GEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN)199505

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-05010iAE111..TUR199807-200005

(L)

main83530-28020iAE110..4FC..GEN199807

DENSO

main83530-30051iAE111..GL,XL199704-199803

main83530-30090iAE110..TH;AE111..MA;AE110..GLI;AE112,EE11#;AE111..GLI,XLI199704-199803

main83530-30100iCE110; CE110..GEN199704-199803

main83530-60010iCE110199803-199910

main83530-60020iEE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..RHD..(GLI,XLI)..GEN;AE110,112,EE111..ARL,GCC,GEN,VEN;AE111,ZZE11#..LHD..SED..(GLI,XLI)..(GCC,GEN,TUR,VEN)199803

YAZAKI

main83530-60050iAE111..GL,XL199803-199910

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAE111..RHD..WG..5F;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,CE110,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN)199505-200208

84540SWITCH ASSY, NEUTRAL START

main84540-12200iAE112..4FC..(PHL,TH)199812-200207

TOKAIRIKA

main84540-12210iAE112..4FC..(PHL,TH)199812-200207

MATSUSHITA

main84540-12230iZZE112..4FC200005-200201

main84540-16050iAE110..4FC..GLI;AE112,EE11#..ATM;AE111..ATM..(GL,GLI,XL,XLI);AE110,111..4FC..(SEG,XLI)..(MA,TH)199704-199812

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iEE11#;AE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN)199704-200411

main89428-33010iCE110..GEN199704-200109

89465SENSOR, OXYGEN

main89465-02040iZZE111200005-200201

FRONT

main89465-02050iZZE111200005-200201

REAR

main89465-12430iAE110199505-199701

main89465-12520iAE110..4FC..GEN; AE110..GEN;AE111,112..RHD..4FC..(GLI,SEG,XLI)..(GEN,TH); AE110..GEN;AE111..RHD..4FC..(GLI,XLI)..GEN199809-199910

main89465-12540iZZE112200005-200201

FRONT

main89465-12550iZZE112200005-200201

REAR

main89465-16100iAE110..TH199711-199901

main89465-19575iAE111..RHD..5F..GLI..GEN; AE111..RHD..SED..5F..XLI..GEN199704-199910

SINGAPORE SPEC OR THAILAND SPEC; THAILAND SPEC

main89465-19675iAE111..LHD..4FC..GEN;AE111..4FC..(ARL,MA,NZ,TH,TUR,VEN);AE112,EE111..ARL,BZ,GEN,MA,NZ,TH,TUR;AE111..5F..(GLI,SEG,XLI)..(ARL,GEN,MA,NZ,TH,TUR,VEN); AE112,EE111..ARL,GEN;AE111..LHD..4FC..(GEN,TUR,VEN);AE111..5F..(GLI,XLI)..(GEN,TUR,VEN)199808-199809

main89465-19745iAE111..WG..4FC;AE111..LHD..4FC..(GEN,VEN);AE111..5F..(GLI,XLI)..(GEN,VEN)200002-200008

89466GASKET, OXYGEN SENSOR

main89466-12020iAE112..BZ,VEN;AE112..5F..(PHL,TH);AE111..4FC..(MA,TUR,VEN);AE111,EE111..(3FC,5F)..(MA,PHL,TH,TUR,VEN); AE112..VEN;AE111..WG..4FC;AE111..LHD..4FC..(GEN,TUR,VEN);AE112,EE111..(STD,XLI)..(ARL,VEN);AE111..5F..(GLI,XLI)..(GEN,TUR,VEN)199912-200008

89615SENSOR, KNOCK CONTROL

main89615-02010iZZE111200005-200201

main89615-12030iAE110..4FC..GEN; AE110..5F..GEN;AE112..ARL,GCC,GEN,VEN;AE111..RHD..(GLI,XLI)..GEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,TUR,VEN); AE110..TH;AE110..5F..GEN;AE111,112..GLI,SEG,XLI199807-199809

TOYOTA

main89615-12090iZZE112200005-200201

main89615-22030iAE110..TH;AE111..MA;AE110..GLI;AE112,EE111;AE111..GLI,XLI; AE111..RHD..(GLI,SEG,XLI)..GEN;AE110,112,EE111..ARL,GCC,GEN,VEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,TUR,VEN)199704-199909

MATSUSHITA

main89615-22040iEE111; EE111..GEN199704-199909

DENSO

main89615-22050iAE110,112..ARL,GCC,GEN,VEN;AE111..(GLI,XLI)..(GCC,GEN,TUR,VEN); AE110..4FC..GEN199809-200309

TOYOTA

main89615-52010iAE111..WG..5F;AE112..GLI,SEG;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,111..SED..(GLI,SEG,XLI); EE111199909-200207

MATSUSHITA

827111E070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E070

9017908059

main90179-08059

9043018008

main90430-18008

9165140620

main91651-40620

9165140625

main91651-40625

13 parts on this diagram · 17 diagrams in section
