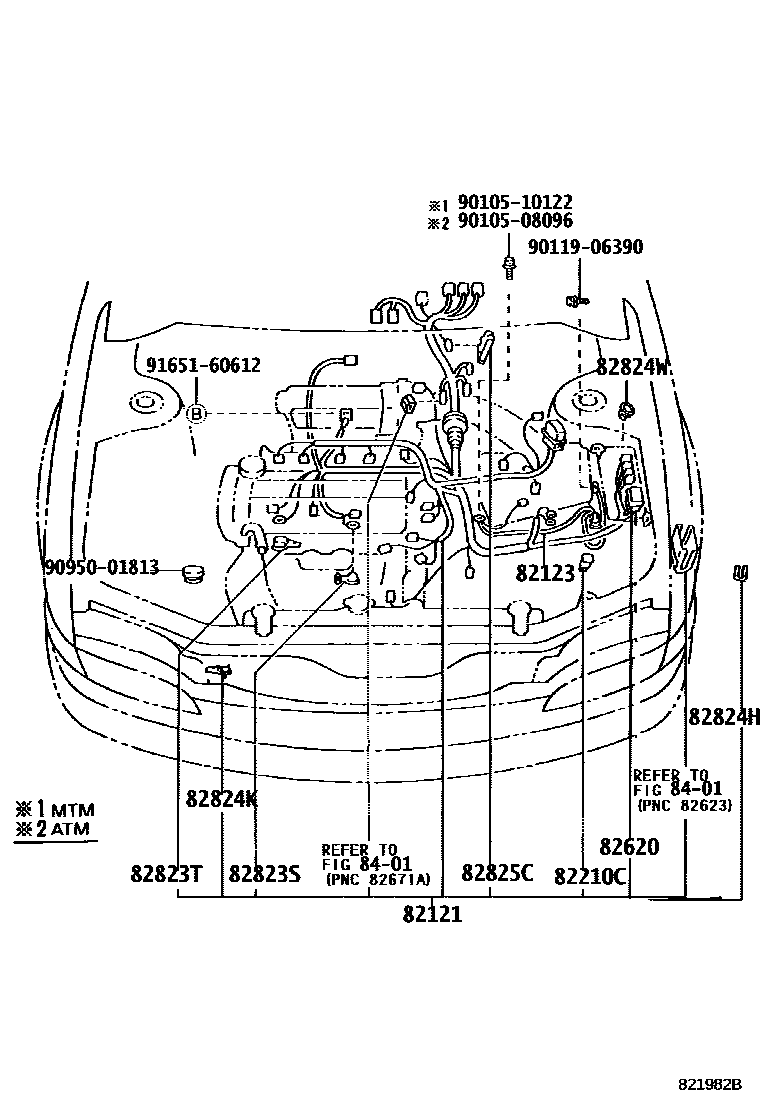

WIRING & CLAMP

0001 1ENGINE 0002 1ENGINE 0003 1ENGINE 0004 1ENGINE 0005 1ENGINE 0006 1ENGINE ROOM 0007 1COWL,INSTRUMENT PANEL 0008 1COWL,INSTRUMENT PANEL 0009 1ROOF,DOOR,FLOOR 0010 1ROOF,DOOR,FLOOR 0011 1ROOF,DOOR,FLOOR 0012 1ROOF,DOOR,FLOOR 0013 1CLAMP & BRACKET 0014 1CLAMP & BRACKET 0015 1CLAMP & BRACKET 0016 1CABLE BOND 0017 1FUSIBLE LINK REPAIR 0018 1CONNECTOR

82121WIRE, ENGINE

main82121-02250iAE111..5F..TUR199907-200005

main82121-02260iAE111..4FC..TUR199807-199907

main82121-02261iAE111..4FC..TUR199907-200005

main82121-02360iZZE111200005-200201

main82121-02391iZZE112..5F200005-200201

main82121-02401iZZE112..4FC200005-200201

main82121-1L340iAE110..5F..GLI199505-199605

main82121-1L350iAE110..5F..GLI199505-199605

W(ABS)

main82121-1L351iAE110..5F..GLI199605-199701

main82121-1L360iAE110..4FC..GLI199505-199605

main82121-1L370iAE110..4FC..GLI199505-199605

W(ABS)

main82121-1L371iAE110..4FC..GLI199605-199701

main82121-1L520iEE110..5F199505-199704

main82121-1L530iEE110..3FC199505-199704

main82121-1L540iEE111..5F199505-199601

main82121-1L541iEE111..5F..GEN199704-199910

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

main82121-1L550iEE111..3FC199505-199601

main82121-1L551iEE111..3FC199601-199704

main82121-1L580iAE111..RHD..SED..5F..(GLI,SEG,XLI)..GEN; AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199910

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

main82121-1L590iAE111..RHD..5F..GLI..GEN; AE111..RHD..SED..5F..XLI..GEN199704-199910

SINGAPORE SPEC OR THAILAND SPEC; THAILAND SPEC

main82121-1L600iAE111..4FC199505-199704

main82121-1L610iAE111..4FC..GLI199505-199704

SINGAPORE SPEC

main82121-1N370iAE110..5F..GLI199701-199704

main82121-1N380iAE110..4FC..GLI199701-199704

main82121-1N410iEE111..5F; EE111..5F..GEN199704-199804

main82121-1N420iEE111..3FC; EE111..3FC..GEN199704-199804

main82121-1N490iAE110..5F..GLI199704-199910

main82121-1N500iAE110..4FC..GEN199807

main82121-1N550iAE111..RHD..5F..(GLI,XLI)..GEN199704-200109

main82121-1N560iAE111..RHD..4FC..(GLI,XLI)..GEN199704-200109

main82121-1N570iAE111..5F..(MA,NZ,TH)199710-199808

main82121-1N571iAE111..RHD..SED..5F..(GLI,XLI)..GEN; AE111..WG199808-199910

NEW ZEALAND OR SINGAPORE SPEC; SINGAPORE SPEC

main82121-1N580iAE111..RHD..4FC..(GLI,XLI)..GEN199704-199808

SINGAPORE SPEC

main82121-1N581iAE111..WG..4FC199910-200109

NEW ZEALAND SPEC

main82121-1N610iAE111..LHD..5F..(GLI,XLI)..(GCC,GEN)199910-200109

main82121-1N620iAE111..LHD..4FC..(GCC,GEN,PHL); AE111..LHD..SED..4FC..(GCC,GEN)199704-199910

main82121-1N640iAE111..4FC..VEN199805-199811

main82121-1N641iAE111..LHD..4FC..(GEN,VEN)199811-200208

MIDDLE EAST SPEC

main82121-1N650iAE111..LHD..5F..(GLI,XLI)..GEN199704-199910

MIDDLE EAST SPEC

main82121-1N660iAE111..4FC..PHL199910-200207

main82121-1N710iAE112..5F..(NZ,TH)199710-199808

main82121-1N711iAE112..5F..(ARL,NZ,TH); AE112..5F..ARL199808-199812

main82121-1N720iAE112..4FC..(NZ,TH)199710-199808

main82121-1N721iAE112..4FC..ARL199812-199910

main82121-1N730iAE112..5F..(GCC,GEN)199704-200109

main82121-1N740iAE112..4FC..(GCC,GEN)199704-200109

main82121-1N810iCE110..XLI199910-200010

main82121-1N830iCE110..RHD..GEN199704-199910

main82121-1N840iCE110..LHD199704-200109

main82121-1N850iEE110..RHD..5F199704-199908

main82121-1N851iEE110..RHD..5F199908-200109

main82121-1N860iEE110..RHD..3FC199704-199910

main82121-1N870iEE110..LHD..MTM; EE110..LHD..MTM..(GCC,GEN)199704-199811

main82121-1N871iEE110..GENKD,PHL,TUR200001

main82121-1N880iEE110..LHD..3FC199704-199910

main82121-1N890iAE111..RHD..5F..(GL,XL)199704-199910

main82121-1T010iAE111..4FC..(GL,XL)199704-199910

main82121-1T020iAE111..LHD..5F..(GL,XL)199704-200109

main82121-1T030iAE111..3FC199704-199910

main82121-1T110iAE112..5F..GEN199808-199910

CHILE SPEC

main82121-1T120iAE112..4FC..GEN199808-200109

CHILE SPEC

main82121-1T130iEE111..5F..GEN; EE111..RHD..5F199804-199812

main82121-1T131iEE111..RHD..5F199812-200207

main82121-1T140iEE111..3FC..GEN; EE111..RHD..3FC199804-199812

main82121-1T141iEE111..RHD..3FC199812-200207

main82121-1T150iEE111..5F..TUR199807-199812

main82121-1T151iEE111..LHD..5F199812-200005

main82121-1T160iEE111..3FC..TUR199807-199812

main82121-1T161iEE111..3FC..TUR199812-200005

main82121-1T260iAE111..WG..4FC200008-200010

SINGAPORE SPEC

82123WIRE, ENGINE, NO.3

main82123-12290iAE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(4FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,TH);AE110,112,EE110..(4F,4FC,5F)..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,IDN,PHL,TH)199704

main82123-12300iAE111,EE11#..3FC..GEN199505-200109

main82123-12310iAE111..RHD..WG;EE110..(GL,STD)..GEN;AE112..ARL,GCC,GEN,VEN;AE111..LHD..SED..5F..XLI;AE111..(4FC,5F)..(GL,XL);AE111..LHD..GLI..(GEN,TUR);EE110..LHD..5F..XL..(GCC,GEN);AE111..SED..4FC..XLI..(GCC,GEN,TUR,VEN); AE112;AE111..WG..5F;EE110..RHD..GL;EE110..LHD..MTM;AE111..4FC..XLI;AE111..LHD..GLI..GEN;AE111..4FC..GLI..TUR;AE110,111..GENKD,PHL,TH;AE111..(4FC,5F)..(GL,SEG,XL);AE111..LHD..SED..5F..XLI..GEN;AE111,EE111..5F..(GLI,XLI)..(ARL,GCC,MA,NZ,TUR,VEN)199807-199811

W(BATTERY=32B24L OR 34B19L)

main82123-12320iEE11#..RHD..3FC..GEN199505-200008

BATTERY=34B19L OR 32B24L

main82123-12330iCE110..GEN199704-200109

82210CFUSIBLE LINK

main90982-08203iEE110199505-199704

80A,TERM.:MALE,BLK

main90982-08228iAE110,112,CE110,EE111..ARL,BZ,GCC,GEN,IDN,MA,TH,TUR;AE111..(GLI,SEG,XLI)..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN); AE110..4FC..GEN; AE111..(GLI,XLI)..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN199811-199908

50A,TERM.:MALE,RED

main90982-08246iAE110..4FC..GEN199807-199811

100A,TERM.:MALE,BLUE

main90982-08257iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199910

40A,TERM.:MALE,GRN

main90982-08280iAE110..4FC..GEN; AE111..GL,XL;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..RHD..(GLI,XLI)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN); AE111..WG..5F;AE112..XLI..IDN;AE111..GL,SEG,XL;AE112,CE110..RHD..(GLI,SEG,XL);AE111,EE111..RHD..SED..(GLI,XLI);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR199811

30A,TERM.:FEMALE,PNK

main90982-08281iAE110..4FC..GEN; AE111..LHD;AE110,EE111;AE111..WG..5F;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE111..RHD..SED..(GLI,SEG,XLI);EE110..LHD..(GCC,GEN,GENKD,PHL,TUR); EE110..LHD..(GCC,GEN);AE111..RHD..(GLI,XLI)..GEN;AE111,ZZE11#..LHD..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199811

40A,TERM.:FEMALE,GRN

main90982-08282iAE110..4FC..GEN199807-199811

50A,TERM.:FEMALE,RED

82620BLOCK ASSY, FUSIBLE LINK

main82620-02020iAE110..4FC; AE111..(GLI,XLI)..(GCC,GEN);AE110,112,CE110,EE111..ARL,GCC,GEN199910-200002

(L)

main82620-12240iAE111..RHD..SED..5F..(GLI,XLI)..GEN; AE111..SEG..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199910

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

main82620-12250iEE110199505-199704

main82620-12260iAE110,EE111..XLI..GEN; EE111..GEN199704-199910

THAILAND SPEC OR MALAYSIA SPEC

main82620-13020iAE110..4FC; AE111,112,EE111..VEN;AE111,EE110..(GL,STD,XL)..(GCC,GEN); AE111..(GLI,XLI)..(GCC,GEN);AE110,112,CE110,EE111..ARL,GCC,GEN; EE11#..GENKD,MA,PHL,TUR,VEN;AE111,112..BZ,GENKD,IDN,MA,PHL,TH,VEN199910-200002

(J)

82823SCAP, STARTER TERMINAL

main82823-12060iEE110..RHD..XL199505-199705

main82823-12090iAE110,111..RHD..(GLI,SEG);AE111,EE111..RHD..SED..(3FC,5F)..XLI199704-199705

82823TCAP, ALTERNATOR TERMINAL

main82823-22060iAE111..SEG..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199910

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

82824CONNECTOR, WIRING HARNESS

main82824-24010iAE111..RHD..SED..5F..(GLI,XLI)..GEN199712-199910

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

82824HCONNECTOR, WIRING HARNESS

main82824-30130×2iAE110,EE110..(GL,GLI,STD,XLI)..GEN;AE111,112..(GL,GLI,SEG)..(GCC,GEN); AE112..IDN,NZ,TH;AE111,CE110..MA,NZ;AE11#,EE11#..(GL,GLI,STD)..(GCC,GEN,MA,PHL,TH)199704-199910

82824KCONNECTOR, WIRING HARNESS

main82824-12210iAE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI; AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN)199704-199811

main82824-30130iAE110..TH;AE111..MA;AE111..RHD..(GL,GLI,XL,XLI);AE112,EE111..ARL,GEN,IDN,MA,NZ,TH;AE110,CE110,EE110..RHD..(GL,GLI,XL); AE112,EE111..ARL,GEN;AE111..RHD..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..RHD..(4FC,5F)..(GL,GLI,XL)..GEN199704-199910

ELECTORIC DOOR LOCK

82824WCONNECTOR, WIRING HARNESS

main82824-30130iAE110,112,CE110,EE111..RHD..(ARL,GEN);AE111,EE110..RHD..(4FC,5F)..(GL,GLI,XL,XLI)..GEN; AE111..MA;AE111..RHD..WG..5F;AE110,112..XLI..(IDN,TH);AE110,112,CE110..RHD..(GLI,SEG,XL);AE111,EE11#..RHD..SED..(GL,GLI,XL,XLI)199704-200008

82825CCONNECTOR, WIRING HARNESS

main82824-30130×2iAE112,EE110..LHD..(XL,XLI)..(GCC,GEN);AE111,CE110..LHD..SED..(XL,XLI)..(GCC,GEN); AE112..XLI..(GCC,GEN);AE111,CE110,EE111..LHD..(GL,GLI,XL,XLI);AE112,EE110..LHD..(GL,GLI,XL)..(BZ,GCC,GEN,PHL,VEN); EE110..LHD..(GL,XL)..(GCC,GEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,ZZE11#..LHD..(GCC,GEN,TUR,VEN); EE110..LHD..XL;AE112..5F..XLI..BZ;AE112..4FC..GLI..BZ;AE111,112,CE110..LHD..(XL,XLI)..(GCC,GEN)199704-200105

ELECTORIC DOOR LOCK

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508096

main90105-08096

9010510122

main90105-10122

9011906390

main90119-06390

9095001813

main90950-01813

9165160612

main91651-60612

17 parts on this diagram · 18 diagrams in section
