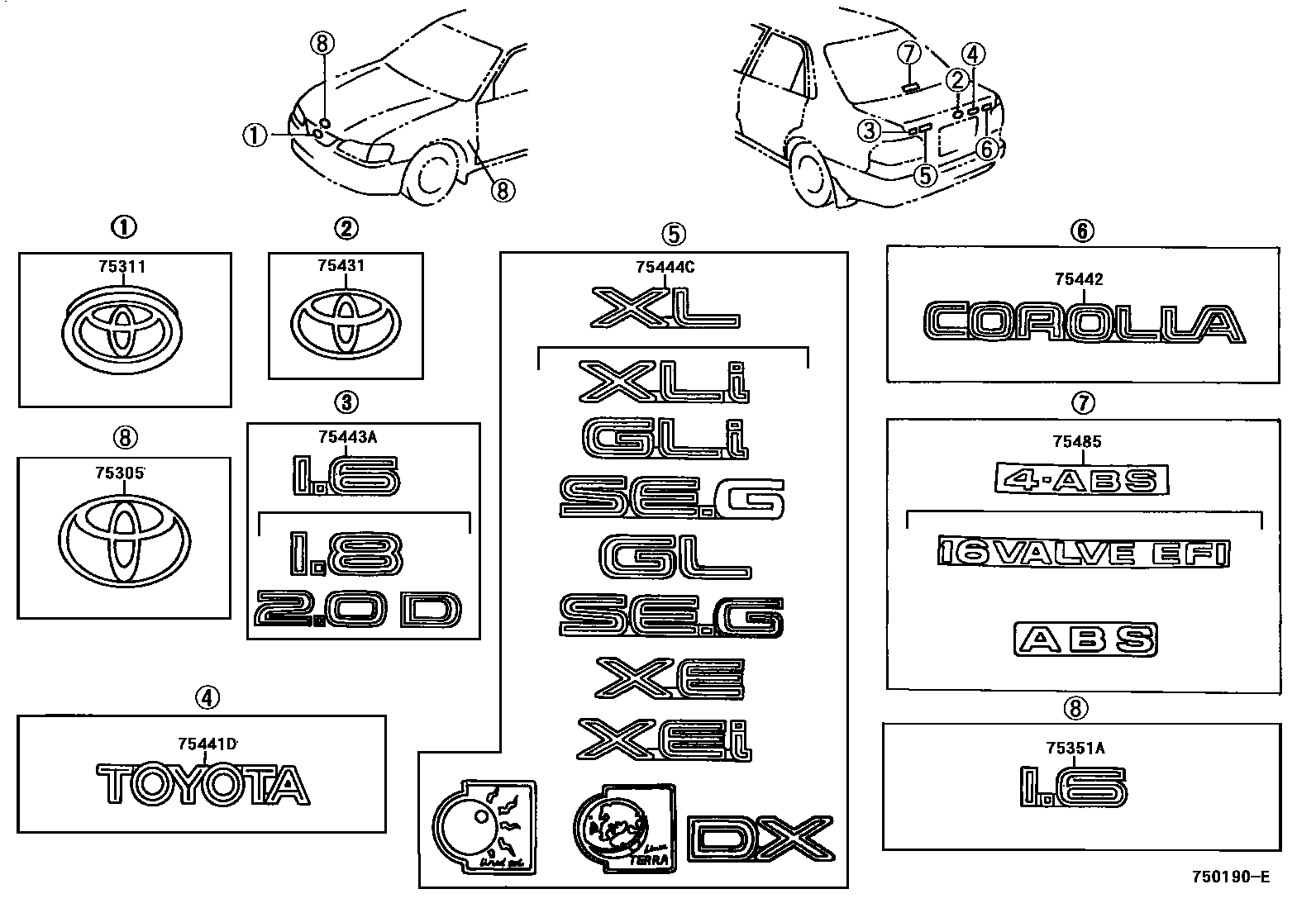

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

75305EMBLEM, HOOD

main75331-12100iEE111..LHD;AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN); EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)199704-199910

main75331-12110iAE112,EE110..IDN,PHL,TH;AE111..(GLI,SEG)..(GENKD,MA,PHL,TH)200003

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-1A850iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199705-199910

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

main75311-1E010iZZE11#;AE111,112,EE111..VEN200002-200208

main75311-1E030iAE110..4FC; AE111,EE111..SED..GEN;AE110,CE110,EE110..(GL,GLI,STD,XL)..GEN; EE110..GENKD,PHL;AE111,112,EE111..(GLI,XLI)..(BZ,MA,TH)199910-200008

RADIATOR GRILLE = TYPE C

75351AEMBLEM, FRONT FENDER

main75351-12040×2iAE111..TUR199807-200005

main75351-12130iZZE11#200008-200201

RH

main75351-12150iZZE11#200008-200201

LH

75431EMBLEM, LUGGAGE COMPARTMENT DOOR

main75431-12010iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199705-199910

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

main75431-12110iAE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL); EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN)199704

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-12780iAE110..4FC..GEN; AE112..SED..XLI..(BZ,GCC,IDN);AE112,CE110..(GLI,SEG,XL)..(ARL,BZ,GCC,GEN,IDN,VEN);AE110,111,EE11#..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN); EE110..LHD..3FC;AE112..SED..(ARL,GCC,VEN);EE110..SED..MTM..(GCC,GEN);AE110,111,CE110,EE111..SED..(GCC,GEN,VEN)199812

TOYOTA

main75441-12830iAE111,ZZE11#..TUR199807-200201

TOYOTA

main75441-20320iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199705-199910

TOYOTA,INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-1A280iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199705-199910

COROLLA,INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

main75442-1A370iAE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#..SED;AE111..SED..(GL,GLI,XL,XLI); EE110..LHD..3FC;AE112,EE111..SED..(ARL,GCC,GEN,VEN);AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN)199704-199812

COROLLA

main75442-1A440iAE112..PHL,TH;AE111..GLI..TH200003-200207

COROLLA,ALTIS

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-1A610iAE111..RHD..SED..5F..(GLI,XLI)..GEN; AE111..SEG..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199705-199910

1.6,INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

main75443-1A790iAE111..MA;AE111..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN)199704-200207

1.6

main75443-1A800iCE110199704-199910

2.0D

main75443-1A810iAE112..GLI,SEG;AE112..SED..XLI..(BZ,GCC,IDN); AE112..SED..(ARL,GCC,VEN)199704-200007

1.8

75444CPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.4

main75444-1A120iEE110199505-199704

XL

main75444-1A190iAE11#,EE111..XLI199505-199704

XLI

main75444-1A200iAE11#..GLI199505-199704

GLI

main75444-1A210iAE111..SEG199505-199712

SE.G

main75444-1A290iAE111..GLI..TUR199808-200005

LINEA LUNA

main75444-1A330iAE111..RHD..GLI..GEN200001-200008

DX

main75444-1A350iEE110..PHL199711

XE

main75444-1A360iAE112..GLI..BZ199808-200202

XEI

main75444-1A390iAE111,CE110,EE110..SED..XL; EE110..LHD..3FC;AE111,CE110..XL..GEN;EE110..SED..5F..XL..(GCC,GEN)199704-199801

XL

main75444-1A400iAE111,112,CE110,EE111..SED..XLI..(GCC,GEN,VEN)199704-200208

XLI

main75444-1A410iAE111,EE110..GL; AE111..GENKD;AE111,EE110..GL199704-199711

GL

main75444-1A420iAE11#..GLI..(GCC,GEN); AE11#..GLI..(GCC,GEN,NZ)199704-199711

GLI

main75444-1A430iAE111..MA;AE112..(GLI,SEG)..(BZ,IDN,PHL,TH)199711-200207

SE.G

main75444-1A450iAE111,EE111..XLI..TUR199807-200005

TERRA

main75444-1A650iZZE112..GLI200005-200201

LINEA SOL

75485PLATE, BACK WINDOW NAME

main75441-13190iAE111..RHD..WG;AE112,EE110..WG199704-200109

TOYOTA COROLLA

main75485-12300iAE111;AE110..GLI199505-199605

4-ABS,W(*66)

main75485-12310iAE110..4FC; AE112..IDN,PHL;AE111,EE111..GENKD,MA,PHL,TH; AE112..SED..GCC;AE110,111,EE111..SED..(GLI,XLI)..(GCC,GEN,VEN)200007-200008

16 VALVE EFI

main75485-12320iAE110,111..RHD..GLI..GEN;AE111..RHD..SED..5F..XLI..GEN199704-199910

ABS,W(*66)

9 parts on this diagram · 2 diagrams in section
