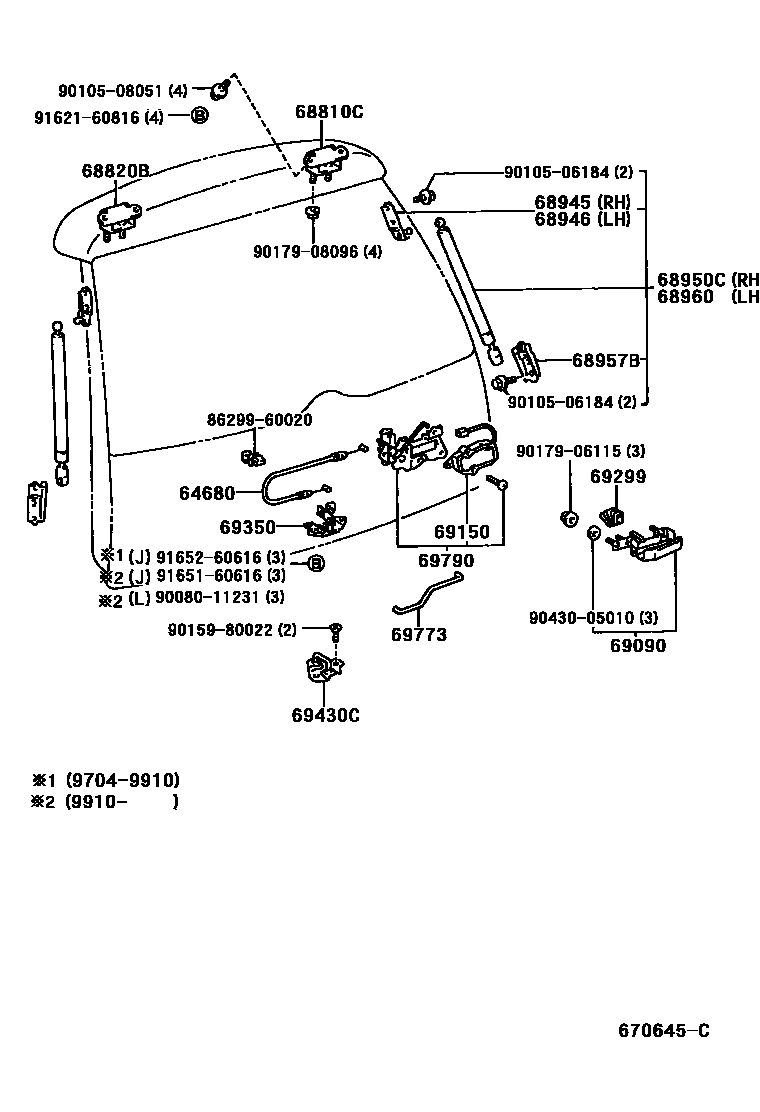

BACK DOOR LOCK & HANDLE

0001 1LICENSE PLATE LAMP;SIDE LIGHT0002 1LICENSE PLATE LAMP;LOWER LIGH

64680CABLE ASSY, BACK DOOR LOCK CONTROL

main64680-13020iAE111,112,EE110..WG; AE111..RHD..WG;AE112,EE110..WG199704-199905

W(LICENSE PLATE LAMP; SIDE LIGHTING)

main64680-13021iAE111,112,EE110..WG199905-200109

W(LICENSE PLATE LAMP; SIDE LIGHTING)

main64680-13050iAE112..GEN;AE111..RHD..WG199704-200109

W(LICENSE PLATE LAMP; LOWER LIGHTING)

68810CHINGE ASSY, BACK DOOR, RH

main68810-21040iAE111..RHD..WG;AE112,EE110..WG199704-200109

68820BHINGE ASSY, BACK DOOR, LH

main68810-21040iAE111..RHD..WG;AE112,EE110..WG199704-200109

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-13010iAE111,112,EE110..WG199704-199910

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-13010iAE111..RHD..WG;AE112,EE110..WG199704-200109

68950CSTAY ASSY, BACK DOOR, RH

main68950-80043iAE111..RHD..WG;AE112,EE110..WG199704-200109

68957BBRACKET, BACK DOOR STAY, LOWER

main68957-13030×2iAE111..RHD..WG;AE112,EE110..WG199704-200109

68960STAY ASSY, BACK DOOR, LH

main68960-19595iAE111..RHD..WG;AE112,EE110..WG199704-200109

69090HANDLE ASSY, BACK DOOR, OUTSIDE

main69090-13010-A0iAE111..WG..4FC199910-200109

W(LICENSE PLATE LAMP; SIDE LIGHTING),SUPER WHITE 2,040

main69090-13010-B1iAE112,EE110..WG;AE111..RHD..WG..5F199704-200109

SILVER METALLIC,199

main69090-13010-C0iAE111..WG..4FC199910-200109

W(LICENSE PLATE LAMP; SIDE LIGHTING),BLACK ME,205

main69090-13010-D1iAE111,112,EE110..WG; AE111..RHD..WG;AE112,EE110..WG199704-199910

CORAL REEF M.M,3L6

main69090-13010-D2iAE111,112,EE110..WG; AE111..RHD..WG;AE112,EE110..WG199704-199808

RED,3M7

main69090-13010-D3iAE111..WG..4FC199910-200109

W(LICENSE PLATE LAMP; SIDE LIGHTING),SUPER RED II,3E5

main69090-13010-D4iAE111,112,EE110..WG199910-200109

W(LICENSE PLATE LAMP; SIDE LIGHTING),RED M.M.,3N8

main69090-13010-G2iAE111,112,EE110..WG; AE111..RHD..WG;AE112,EE110..WG199704-199910

GREEN M.M,6P5

main69090-13010-G5iAE111,112,EE110..WG199910-200109

W(LICENSE PLATE LAMP; SIDE LIGHTING),GREEN MC.,6R8

main69090-13010-J1iAE111..WG..4FC199910-200109

W(LICENSE PLATE LAMP; SIDE LIGHTING),BLUE M.M,8L5

main69090-13010-J2iAE111,112,EE110..WG199910-200109

W(LICENSE PLATE LAMP; SIDE LIGHTING),DK.BLUE M.M.,8L3

main69090-13010-K0iAE111,112,EE110..WG; AE111..RHD..WG;AE112,EE110..WG199704-199808

LAVENDER ME.,932

main69090-13010-K1iAE111,112,EE110..WG199808-199910

VIOLET M.M.,944

main69090-13030iAE111,112..WG..GEN199704-199910

W(LICENSE PLATE LAMP; LOWER LIGHTING)

69150ACTUATOR ASSY, BACK DOOR LOCK

main69150-13010iAE111..RHD..WG;AE112,EE110..WG199704-200109

W(LICENSE PLATE LAMP; SIDE LIGHTING)

main69150-13030iAE112..GEN;AE111..RHD..WG199704-200109

W(LICENSE PLATE LAMP; LOWER LIGHTING)

69299GROMMET, BACK DOOR HANDLE

main69299-13030iAE111..RHD..WG;AE112,EE110..WG199704-200109

69350LOCK ASSY, BACK DOOR

main69301-13010iAE111..RHD..WG;AE112,EE110..WG199704-200109

W(LICENSE PLATE LAMP; SIDE LIGHTING)

main69301-13030iAE111,112..WG..GEN199704-199910

W(LICENSE PLATE LAMP; LOWER LIGHTING)

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-12250iAE111..RHD..WG;AE112,EE110..WG199704-200109

69773LINK, BACK DOOR LOCK CONTROL, NO.1

main69773-13010iAE112..GEN;AE111..RHD..WG199704-200109

69790CONTROL ASSY, BACK DOOR LOCK

main69790-13020iAE111..RHD..WG;AE112,EE110..WG199704-200109

W(LICENSE PLATE LAMP; SIDE LIGHTING)

main69790-13040iAE112..GEN;AE111..RHD..WG199704-200109

W(LICENSE PLATE LAMP; LOWER LIGHTING)

8629960020PAD, SPEAKER

main86299-60020

9008011231

main90080-11231

9010506184

main90105-06184

9010508051

main90105-08051

9015980022

main90159-80022

9017906115

main90179-06115

9017908096

main90179-08096

9043005010

main90430-05010

9162160816

main91621-60816

9165160616

main91651-60616

9165260616

main91652-60616

26 parts on this diagram · 2 diagrams in section
