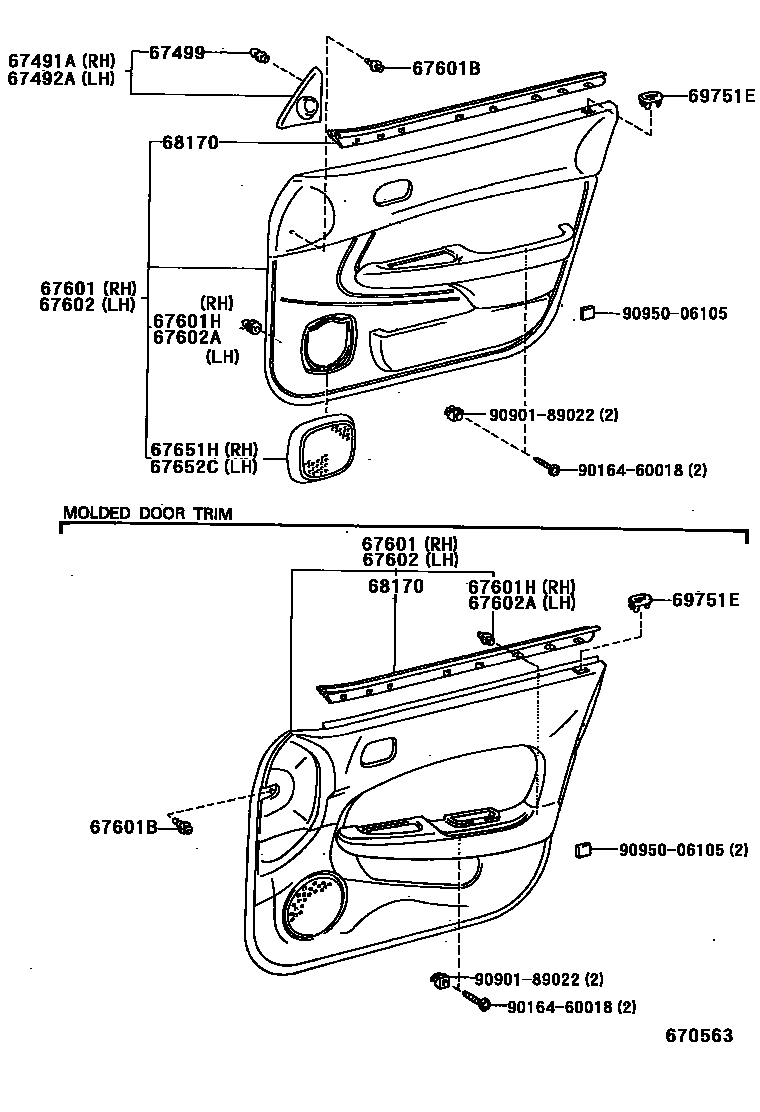

FRONT DOOR PANEL & GLASS
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
W(ELECTRIC REMOTE CONTOROL MIRROR)
main67491-12370iAE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN; AE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN199705-199910
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC
main67491-12400iAE110,CE110,EE110..(GL,GLI,XL)..(GCC,GEN);AE111,112,EE111..(GL,GLI,XL,XLI)..(GCC,GEN); AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN)199704-199909
W(ELECTRIC REMOTE CONTOROL MIRROR)
main67491-12430iAE110..TH;AE111,112,CE110,EE11#..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,PHL,TH,TUR,VEN); AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(XL,XLI)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN,TUR,VEN)199704-199812
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
W(ELECTRICAL *RCM)
main67492-12370iAE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN; AE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN199705-199910
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC
main67492-12400iAE110,CE110,EE110..(GL,GLI,XL)..(GCC,GEN);AE111,112,EE111..(GL,GLI,XL,XLI)..(GCC,GEN); AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN)199704-199909
W(ELECTRIC REMOTE CONTOROL MIRROR)
main67492-12430iAE110..TH;AE111,112,CE110,EE11#..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,PHL,TH,TUR,VEN); AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(XL,XLI)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN,TUR,VEN)199704-199812
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
main67771-30070×2iAE110..4FC..GEN; AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL; EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN199812
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
W(*PW & *EL & SPEAKER) & MOLDED DOOR TRIM,SHADOW GRAY,TRIM1#
FABRIC TYPE-*104,SHADOW GRAY,TRIM1#
MD.CHARCOAL,TRIM1#
DOOR TRIM=TYPE D-*104,MIDIUM CHARCOAL,TRIM9#
MD.CHARCOAL.,TRIM1#
MD.CHARCOAL.,TRIM1#; W(POWER WINDOW),MD.CHARCOAL.,TRIM1#
DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE & W(SPEAKER),MIDIUM CHARCOAL,TRIM1#
DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1#
DOOR TRIM=TYPE E-*104,MIDIUM CHARCOAL,TRIM1#
DOOR TRIM=TYPE E-*104 & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1#
DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1#
DOOR TRIM=TYPE A-*104 & W(POWER WINDOW) & NEW ZEALAND SPEC,MIDIUM CHARCOAL,TRIM1#
DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE,MD.CHARCOAL,TRIM9#
DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE,MD.CHARCOAL,TRIM9#
DOOR TRIM=TYPE E-*104,MIDIUM CHARCOAL,TRIM1#
DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE,MD.CHARCOAL,TRIM1#
DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE & W(SPEAKER),MD.CHARCOAL,TRIM1#
DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE,MD.CHARCOAL,TRIM1#
DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE & W(POWER WINDOW),MD.CHARCOAL,TRIM1#; DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE & W(POWER WINDOW),MD.CHARCOAL,TRIM9#
W(SPEAKER) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1#
THAILAND SPEC & FABRIC TYPE-*104,SHADOW GRAY,TRIM1#
W(SPEAKER),SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
OAK,TRIM4#
SHADOW GRAY,TRIM1#
W(SPEAKER),SHADOW GRAY,TRIM1#
main67650-1E760-B0iAE110,EE111..XLI..GEN;AE111..RHD..SED..5F..XLI..GEN; AE111,EE111..RHD..SED..(3FC,5F)..XLI..GEN199704-199910
W(*PW & *EL) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1#
W(*PW & *EL & SPEAKER) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1#
CKD SPEC & W(*PW & *EL) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1#
W(*PW & *EL & SPEAKER) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1#
W(SPEAKER) & FABRIC TYPE-*104,MD. CHARCOAL,TRIM1#
CKD SPEC & W(*PW & *EL & SPEAKER) & MOLDED DOOR TRIM,SHADOW GRAY,TRIM1#; W(*PW & *EL & SPEAKER) & MOLDED DOOR TRIM,SHADOW GRAY,TRIM1#
MOLDED DOOR TRIM,MD. CHARCOAL,TRIM1#
G PACKAGE-*104,SHADOW GRAY,TRIM1#
G PACKAGE-*104,OAK,TRIM4#
MD. CHARCOAL,TRIM1#
W(POWER WINDOW & POWER DOOR LOCK),XXXX,TRIM1#
main67650-1H630-B2iAE111,112..GLI..(BZ,GCC,GENKD,PHL,TUR,VEN); AE111,112..GLI..(GCC,TUR,VEN); AE111,EE110..LHD..(GL,GLI)..GEN199704-199910
MD. CHARCOAL,TRIM1#; MD. CHARCOAL,TRIM10
main67650-1H690-B0iAE111,CE110,EE110..RHD..SED..(4FC,5F)..(XL,XLI)..GEN; AE111,CE110,EE110..RHD..SED..(XL,XLI)..GEN; EE111..GEN;AE111..RHD..WG199704-199910
LEATHER TYPE-*104,MD. CHARCOAL,TRIM1#; LEATHER TYPE-*104,MD. CHARCOAL,TRIM10,14
DOOR TRIM=LEATHER TYPE-*104,MD. CHARCOAL,TRIM1#,9#; DOOR TRIM=LEATHER TYPE-*104,MD. CHARCOAL,TRIM9#
main67650-1H700-B2iAE111..WG..5F; CE110..RHD..XL;AE111,EE110..RHD..SED..(XL,XLI)..GEN; EE111..GEN199910-200008
DOOR TRIM=LEATHER TYPE-*104 & W(SPEAKER),MD. CHARCOAL,TRIM1#; DOOR TRIM=LEATHER TYPE-*104 & W(SPEAKER),MD. CHARCOAL,TRIM11,94; DOOR TRIM=LEATHER TYPE-*104 & W(SPEAKER),MD. CHARCOAL,TRIM9#
DOOR TRIM=TYPE C-*104 & W(SPEAKER),MD.CHARCOAL,TRIM1#; DOOR TRIM=TYPE C-*104 & W(SPEAKER),MD.CHARCOAL,TRIM11
main67650-1H710-B0iAE111,CE110,EE110..RHD..SED..(4FC,5F)..(XL,XLI)..GEN; AE111,CE110,EE110..RHD..SED..(XL,XLI)..GEN; EE111..GEN;AE111..RHD..WG199704-199910
FABRIC TYPE-*104,MD. CHARCOAL,TRIM1#; FABRIC TYPE-*104,MD. CHARCOAL,TRIM10,14
main67650-1H720-B2iAE111,CE110,EE110..RHD..SED..(4FC,5F)..(XL,XLI)..GEN; AE111,CE110,EE110..RHD..SED..(XL,XLI)..GEN; EE111..GEN;AE111..RHD..WG199704-199910
W(SPEAKER) & FABRIC TYPE-*104,MD. CHARCOAL,TRIM1#; W(SPEAKER) & FABRIC TYPE-*104,MD. CHARCOAL,TRIM10,14
main67650-1H740-B2iAE111,CE110,EE110..RHD..SED..(4FC,5F)..(XL,XLI)..GEN; AE111,CE110,EE110..RHD..SED..(XL,XLI)..GEN; EE111..GEN;AE111..RHD..WG199704-199910
W(POWER WINDOW),MD. CHARCOAL,TRIM1#; W(POWER WINDOW),MD. CHARCOAL,TRIM10
MD. CHARCOAL,TRIM10,14
MD. CHARCOAL,TRIM1#
LEATHER TYPE-*104 & W(SPEAKER),MD. GRAY,TRIM1#; W(SPEAKER),MD. GRAY,TRIM10,14
main67650-1H760-B6iAE111..LHD..(XL,XLI)..GEN;CE110,EE11#..LHD..(STD,XL)..(GEN,VEN); EE11#..(STD,XL)..(PHL,TUR,VEN)199910-200008
MIDIUM CHARCOAL,TRIM1#
DOOR TRIM=LEATHER TYPE-*104 & W(SPEAKER),XXXX,TRIM1#
MD. CHARCOAL,TRIM1#
LEATHER TYPE,MD.CHARCOAL,TRIM1#
main67650-1H780-B0iAE111,112,CE110,EE110..LHD..(XL,XLI)..GEN; AE111,112,EE110..(XL,XLI)..GCC; AE111..LHD..SED..(XL,XLI)..GEN;AE112,CE110,EE110..LHD..(XL,XLI)..GEN199704-199910
FABRIC TYPE-*104,MD. CHARCOAL,TRIM1#; MD. CHARCOAL,TRIM1#
DOOR TRIM=TYPE E-*104 & W(POWER WINDOW) & NEW ZEALAND SPEC,MD CHARCOAL,TRIM1#
DOOR TRIM=TYPE E-*104 & NEW ZEALAND SPEC,MD.CHARCOAL,TRIM1#
DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE,MD.CHARCOAL,TRIM1#
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
main90467-06133-B0×2iAE111..RHD..5F..GLI..GEN;AE110,EE110..(STD,XLI)..GEN; EE110..STD..GEN;AE110,111..XLI..TH;AE111..RHD..5F..GLI..GEN199704-199812
SHADOW GRAY,TRIM1#
main90467-06133-B4×4iAE111,CE110,EE110..SED..(XL,XLI)..GEN; AE111..RHD..4FC..GLI..GEN; AE111..RHD..GL;AE111..RHD..WG;AE111..GCC,TUR;AE110,EE110..GL,GLI;AE111..RHD..5F..GLI..GEN;AE112,EE110..(GLI,XL,XLI)..(ARL,GCC,VEN); AE111..RHD..WG;AE111,EE110..(XL,XLI)..(GCC,VEN);AE112,EE111..(STD,XLI)..(GCC,GEN,VEN); AE111..WG;AE111..RHD..GL;EE110..GCC,PHL;AE110,EE110..GL,GLI;AE111..RHD..5F..GLI..GEN;AE111..ARL,GCC,GENKD,PHL,TUR;AE112,EE111..(GLI,XLI)..(ARL,BZ,GCC,TUR,VEN); AE111..WG;AE112..GEN,NZ;EE111..GEN,VEN;AE111..GCC,NZ,VEN;AE112,CE110,EE110..(STD,XL,XLI)..(GCC,GENKD,NZ,PHL,TUR,VEN); CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN; EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN; EE110..LHD..3FC;EE110..5F..XL..GEN;AE111,CE110..SED..(XL,XLI)..GEN; EE110..STD..GEN; EE111..GEN199704-199910
MD.CHARCOAL,TRIM1#; MD.CHARCOAL,TRIM1#,14; MD.CHARCOAL,TRIM10,14; MOLDED DOOR TRIM,MD.CHARCOAL,TRIM1#; MOLDED DOOR TRIM,MD.CHARCOAL,TRIM10,14; W(*PW & *EL & SPEAKER) & MOLDED DOOR TRIM,MD.CHARCOAL,TRIM1#; W(*PW & *EL) & MOLDED DOOR TRIM,MD.CHARCOAL,TRIM1#
main90467-06133-C0×4iAE110..GLI;AE111,112,EE111..BZ,TUR; AE110..GLI;AE111..TUR; AE111,CE110,EE110..SED..(XL,XLI)..GEN; AE111..RHD..GL;AE111,EE110..SED..(GCC,PHL);AE112,EE110..SED..(GL,GLI,XLI)..(GCC,GEN,VEN); AE111..RHD..GL;AE111,EE110..SED..GCC;AE112,EE110..SED..(GL,GLI,XLI)..(GCC,GEN,VEN); AE111..RHD..SED..5F..XLI..GEN; AE111..RHD..XL;AE111..LHD..SED..GEN;CE110,EE110..XL..GEN;AE111..RHD..4FC..XLI..GEN; AE111..RHD..XL;EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..4FC..XLI..GEN; EE110..LHD..3FC;EE110..5F..XL..GEN;AE111,CE110..SED..(XL,XLI)..GEN; EE111..GEN199704-199910
BLACK,TRIM1#; BLACK,TRIM10,14; CKD SPEC & W(*PW & *EL) & MOLDED DOOR TRIM,BLACK,TRIM10,14; MOLDED DOOR TRIM,BLACK,TRIM1#; MOLDED DOOR TRIM,BLACK,TRIM10,14; W(*PW & *EL & SPEAKER) & MOLDED DOOR TRIM,BLACK,TRIM1#
OAK,TRIM4#
67601HRETAINER, DOOR TRIM, RH
MOLDED DOOR TRIM; W(*PW & *EL & SPEAKER) & MOLDED DOOR TRIM
main67771-16170×2iAE111..RHD..WG;EE110..LHD..3FC;AE111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN,VEN);AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN); AE112..GEN,NZ;CE110,EE110..STD,XL;AE110,112..XLI..(GCC,TH);AE111,EE111..(XL,XLI)..(GCC,GEN,NZ,TH,VEN)199704-199812
SABLE
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67050-12160-B0iAE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN); AE112,EE110..LHD..(XL,XLI)..(GCC,GEN);AE111,CE110..LHD..SED..(XL,XLI)..(GCC,GEN)199704-199910
FABRIC TYPE-*104,MD. CHARCOAL,TRIM1#
main67050-12170-B1iAE111,CE110,EE110..LHD..SED..(XL,XLI)..GEN; AE111,EE110..GCC;AE112..XLI..(GCC,GEN); AE111..LHD..WG;AE111,EE110..GCC;AE112..XLI..(GCC,GEN)199704-199910
W(SPEAKER) & FABRIC TYPE-*104,MD. CHARCOAL,TRIM1#; W(SPEAKER) & FABRIC TYPE-*104,MD. CHARCOAL,TRIM10,14
main67050-12180-B1iAE111,CE110,EE110..LHD..SED..(XL,XLI)..GEN; AE111..LHD..WG;AE112..XLI..(BZ,GEN)199704-199910
MD. CHARCOAL,TRIM10,14; MOLDED DOOR TRIM,MD. CHARCOAL,TRIM1#
MD. CHARCOAL,TRIM1#
W(POWER WINDOW),MD. CHARCOAL,TRIM1#
W(POWER WINDOW & POWER DOOR LOCK),XXXX,TRIM1#
main67050-12200-B2iAE111,112,EE110..LHD..(GL,GLI)..(GCC,GEN,GENKD,PHL,TUR,VEN); AE111,112,EE110..LHD..(GL,GLI)..(GCC,GEN,TUR,VEN)199704-199910
MD. CHARCOAL,TRIM1#
MD. CHARCOAL,TRIM1#
main67050-12260-B1iAE111,CE110,EE110..RHD..SED..(4FC,5F)..(XL,XLI)..GEN; AE111,CE110,EE110..RHD..SED..(XL,XLI)..GEN; EE111..GEN;AE111..RHD..WG199704-199910
LEATHER TYPE,MD. CHARCOAL,TRIM1#; LEATHER TYPE,MD. CHARCOAL,TRIM10,14
DOOR TRIM=LEATHER TYPE-*104,MD.CHARCOAL,TRIM1#
main67050-12270-B2iAE111,CE110,EE110..RHD..SED..(4FC,5F)..(XL,XLI)..GEN; AE111,CE110,EE110..RHD..SED..(XL,XLI)..GEN; EE111..GEN;AE111..RHD..WG199704-199910
W(SPEAKER) & LEATHER TYPE-*104,MD. CHARCOAL,TRIM1#; W(SPEAKER) & LEATHER TYPE-*104,MD. CHARCOAL,TRIM10,14
DOOR TRIM=LEATHER TYPE-*104 & W(SPEAKER),MD.CHARCOAL,TRIM1#
main67050-12280-B0iAE111,CE110,EE110..RHD..SED..(4FC,5F)..(XL,XLI)..GEN; AE111,CE110,EE110..RHD..SED..(XL,XLI)..GEN; EE111..GEN;AE111..RHD..WG199704-199910
FABRIC TYPE-*104,MD. CHARCOAL,TRIM1#; FABRIC TYPE-*104,MD. CHARCOAL,TRIM10,14
main67050-12290-B2iAE111,CE110,EE110..RHD..SED..(4FC,5F)..(XL,XLI)..GEN; AE111,CE110,EE110..RHD..SED..(XL,XLI)..GEN; EE111..GEN;AE111..RHD..WG199704-199910
W(SPEAKER) & FABRIC TYPE-*104,MD. CHARCOAL,TRIM1#; W(SPEAKER) & FABRIC TYPE-*104,MD. CHARCOAL,TRIM10,14
main67050-12310-B2iAE111,CE110,EE110..RHD..SED..(4FC,5F)..(XL,XLI)..GEN; AE111,CE110,EE110..RHD..SED..(XL,XLI)..GEN; AE111..RHD..WG; EE111..GEN199704-199910
MD. CHARCOAL,TRIM1#; W(POWER WINDOW),MD. CHARCOAL,TRIM1#; W(POWER WINDOW),MD. CHARCOAL,TRIM10,14
MD. CHARCOAL,TRIM10
LEATHER TYPE,MD. CHARCOAL,TRIM1#
DOOR TRIM=LEATHER TYPE-*104,MD.CHARCOAL,TRIM1#; MD.CHARCOAL,TRIM1#
main67050-12350-B1iAE111,CE110,EE110..LHD..(STD,XL,XLI)..(GEN,GENKD); AE111,CE110,EE110..LHD..SED..(STD,XL,XLI)..GEN199805-199910
W(SPEAKER) & LEATHER TYPE-*104,MD. CHARCOAL,TRIM1#
W(SPEAKER) & LEATHER TYPE-*104,MD. CHARCOAL,TRIM1#
MD.CHARCOAL,TRIM1#
MIDIUM CHARCOAL,TRIM9#
SHADOW GRAY,TRIM1#
THAILAND SPEC & FABRIC TYPE & W(SPEAKER)-*104,SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
OAK,TRIM4#
W(SPEAKER),SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
W(SPEAKER),SHADOW GRAY,TRIM1#
main67620-1L310-B0iAE110,EE111..XLI..GEN;AE111..RHD..SED..5F..XLI..GEN; AE111,EE111..RHD..SED..(3FC,5F)..XLI..GEN199704-199910
W(*PW & *EL) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1#
W(*PW & *EL & SPEAKER) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1#
CKD SPEC & W(*PW & *EL) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1#
CKD SPEC & W(*PW & *EL & SPEAKER) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1#
W(*PW & *EL & SPEAKER) & MOLDED DOOR TRIM,SHADOW GRAY,TRIM1#
FABRIC TYPE-*104,SHADOW GRAY,TRIM1#
CKD SPEC & W(*PW & *EL & SPEAKER) & MOLDED DOOR TRIM,SHADOW GRAY,TRIM1#; W(*PW & *EL & SPEAKER) & MOLDED DOOR TRIM,SHADOW GRAY,TRIM1#
G PACKAGE-*104,SHADOW GRAY,TRIM1#
G PACKAGE-*104,OAK,TRIM4#
MD.CHARCOAL.,TRIM1#
MD.CHARCOAL.,TRIM1#; NEW ZEALAND SPEC,MD.CHARCOAL.,TRIM1#
DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE & W(SPEAKER),MIDIUM CHARCOAL,TRIM9#
DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM9#
MIDIUM CHARCOAL,TRIM1#
DOOR TRIM=TYPE E-*104 & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1#
DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1#
DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE,MD.CHARCOAL,TRIM9#
DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE,MD.CHARCOAL,TRIM1#
MIDIUM CHARCOAL,TRIM9#
DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE,MD.CHARCOAL,TRIM1#
DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE & W(SPEAKER),MD.CHARCOAL,TRIM1#
DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE & W(POWER WINDOW),MD.CHARCOAL,TRIM9#
DOOR TRIM=TYPE E-*104 & NEW ZEALAND SPEC,MD.CHARCOAL,TRIM1#
DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE,MD.CHARCOAL,TRIM1#
67602ARETAINER, DOOR TRIM, LH
main67771-12050×6iAE110,CE110,EE110..GL,GLI,XL;AE111,112..(GL,GLI,XL,XLI)..(GCC,GEN); AE112;AE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL)199704-199710
MOLDED DOOR TRIM,RED
SABLE
67651HGRILLE, SPEAKER DOOR, RH
SHADOW GRAY,TRIM1#
MD.CHARCOAL,TRIM1#,9#; MD.CHARCOAL,TRIM9#
OAK,TRIM4#
67652CGRILLE, SPEAKER DOOR, LH
main67651-12030-B0iAE110,111..XLI..TH;AE111..RHD..GLI..GEN; AE110..XLI..GEN;AE111..RHD..(GLI,SEG)..GEN199704-199812
SHADOW GRAY,TRIM1#
main67651-12030-B2iAE111,EE111..VEN;EE110..GENKD,PHL,TUR; AE111..WG;AE111,EE11#..GCC,VEN;AE112,CE110..XLI..(GCC,GEN)199910-200002
MD.CHARCOAL,TRIM1#
OAK,TRIM4#
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
main68171-12250iAE111..4FC..TH;EE111..GEN,MA,VEN;AE111,112..RHD..5F..(GLI,SEG)..(GEN,TH);AE111..(SEG,XL,XLI)..(GCC,GEN,MA,TH,VEN);AE112,CE110,EE110..(STD,XL,XLI)..(GCC,GEN,GENKD,IDN,PHL,TUR,VEN); EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111,112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN)199905-199910
RH
RH
main68172-12170iAE111,112,CE110,EE11#..(STD,XL,XLI)..(GCC,GEN,VEN); AE112..5F..TH;AE111,EE111..MA,TH,VEN;AE112,EE110..(STD,XL,XLI)..(GENKD,IDN,PHL,TUR)199910-200002
LH
main68172-12190iAE110..4FC; AE111..WG..5F;AE111..GLI..TH;AE112..5F..GCC;AE112..4FC..(GCC,TH);AE111,EE111..SED..(GCC,GEN,GENKD,PHL);AE110,CE110,EE110..(GL,GLI,XL)..(GCC,GEN,PHL); EE110..LHD..3FC;AE112..XLI..(ARL,GCC);AE110,111,CE110,EE111..GCC,GEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN)199901
MOLDED DOOR TRIM,LH
69751EHOLDER, FRONT DOOR LOCK CONTROL KNOB
SHADOW GRAY,TRIM1#
main69751-12070-B1×2iAE111..WG;EE110..(GL,STD)..GEN;AE110,111..RHD..(GL,GLI)..GEN;AE112,EE111..ARL,BZ,GCC,GEN,NZ,TUR,VEN;AE111,CE110,EE110..ARL,GCC,GENKD,NZ,PHL,TUR,VEN; CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN; EE110..GCC;AE111..RHD..WG;AE111..GCC,TUR,VEN;EE110..(GL,STD)..GEN;AE112,EE111..ARL,GCC,GEN,VEN;AE110,111..RHD..(GL,GLI)..GEN; EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN199704-199910
MD.CHARCOAL,TRIM1#; MD.CHARCOAL,TRIM10,14
OAK,TRIM4#
9016460018
main90164-60018
9090189022
main90901-89022
9095006105
main90950-06105
15 parts on this diagram · 7 diagrams in section
