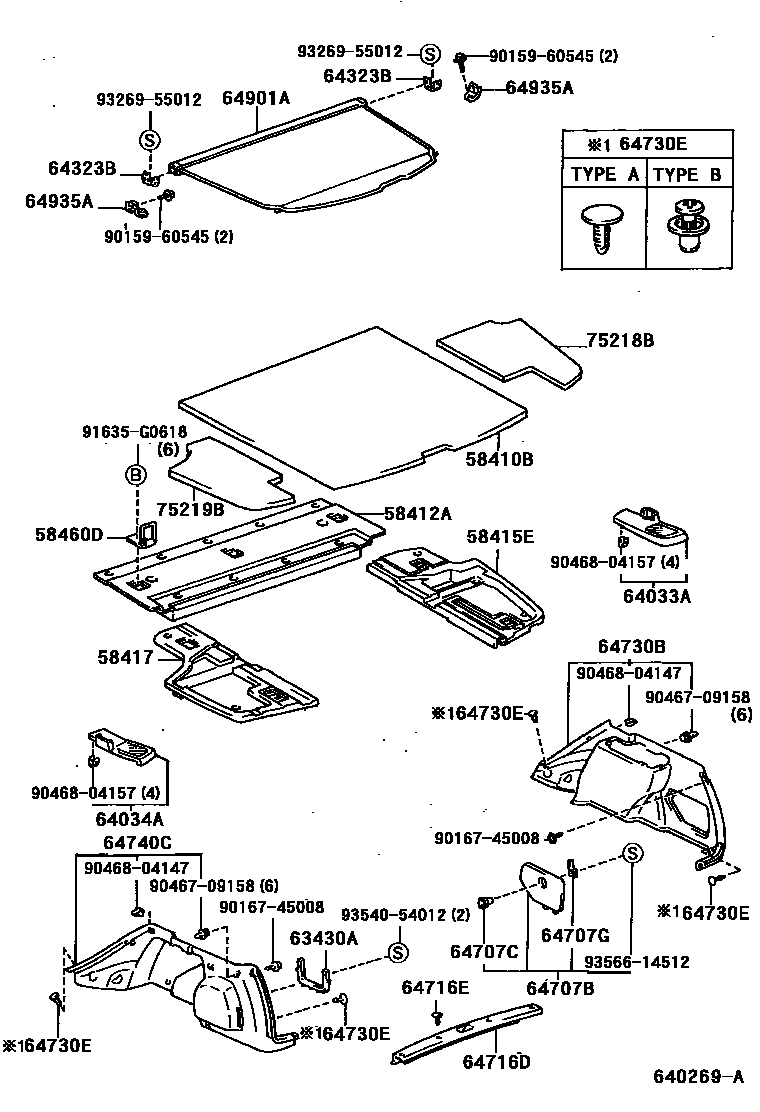

DECK BOARD & DECK TRIM COVER

58410BBOARD ASSY, DECK

main58410-13130iAE111,112,EE110..WG199704-199910

58412ABOARD, DECK, NO.2

main58412-13060iAE111..RHD..WG;AE112,EE110..WG199704-200109

58415EBOARD, REAR FLOOR, NO.1

main58415-13040iAE111..RHD..WG;AE112,EE110..WG199704-200109

58417BOARD, REAR FLOOR, NO.3

main58417-13050iAE111..RHD..WG;AE112,EE110..WG199704-200109

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-13010×6iAE111..RHD..WG;AE112,EE110..WG199704-200109

63430ARACK ASSY, ROOM

main63430-13010-B3iAE111..RHD..WG;AE112,EE110..WG199704-200109

MD.CHARCOAL,TRIM1#

64033AGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-13020-B1iAE111..RHD..WG;AE112,EE110..WG199704-200109

MD.CHARCOAL,TRIM1#

main64383-13020-B1iAE111..RHD..WG;AE112,EE110..WG199704-200109

W(4 SPEAKER),MD.CHARCOAL,TRIM1#

64034AGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-13020-B1iAE111,112,EE110..WG199704-199910

MD.CHARCOAL,TRIM1#

main64384-13010-B1iAE111,112,EE110..WG199704-199910

W(4 SPEAKER),MD.CHARCOAL,TRIM1#

64323BCLAMP, TONNEAU COVER

main64323-13040-B1×2iAE111..RHD..WG;AE112,EE110..WG199704-200109

MD.CHARCOAL,TRIM1#

64707BCOVER SUB-ASSY, QUARTER TRIM JACK

main64707-13090-B0iAE111,112,EE110..WG; AE111..RHD..WG;AE112,EE110..WG199704-199804

MD.CHARCOAL,TRIM1#

main64707-13100-B1iAE111..RHD..WG;AE112,EE110..WG199804-199910

MD.CHARCOAL,TRIM1#

64707CKNOB, JACK COVER

main64982-13010-B1iAE111..RHD..WG;AE112,EE110..WG199704-200109

MD.CHARCOAL,TRIM1#

64707GSTOPPER, JACK COVER

main64981-13010iAE111,112,EE110..WG199704-199910

64716DCOVER, DECK TRIM, REAR

main64716-13110-B1iAE111..RHD..WG;AE112,EE110..WG199704-200109

MD.CHARCOAL,TRIM1#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-07152-B3×4iAE111..RHD..WG;AE112,EE110..WG199704-200109

MD.CHARCOAL,TRIM1#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-13061-B1iAE111..RHD..WG;AE112,EE110..WG199804-200109

MD.CHARCOAL,TRIM1#

main64730-13130-B1iAE111,112,EE110..WG; AE111..RHD..WG;AE112,EE110..WG199704-199804

MD.CHARCOAL,TRIM1#

64730ECLIP(FOR DECK TRIM SIDE BOARD)

main90467-06070-B3×2iAE111..RHD..WG;AE112,EE110..WG199704-200109

TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

main90467-07152-B3×2iAE111..RHD..WG;AE112,EE110..WG199704-200109

TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-13061-B1iAE111..RHD..WG;AE112,EE110..WG199804-199910

MD.CHARCOAL,TRIM1#

main64740-13110-B0iAE111,112,EE110..WG; AE111..RHD..WG;AE112,EE110..WG199704-199804

MD.CHARCOAL,TRIM1#

64901ARETRACTOR SUB-ASSY, TONNEAU COVER

main64901-13030-B1iAE111..RHD..WG;AE112,EE110..WG199704-200109

MD.CHARCOAL,TRIM1#

64935AHOLDER, TONNEAU COVER

main64935-13050×2iAE111..RHD..WG;AE112,EE110..WG199704-200109

75218BLID, TOOL BOX, RH

main75218-13010iAE111..RHD..WG;AE112,EE110..WG199704-200109

75219BLID, TOOL BOX, LH

main75219-13010iAE111..RHD..WG;AE112,EE110..WG199704-200109

9015960545

main90159-60545

9016745008

main90167-45008

9046709158

main90467-09158

9046804147

main90468-04147

9046804157

main90468-04157

91635G0618

main91635-G0618

9326955012

main93269-55012

9354054012

main93540-54012

9356614512

main93566-14512

30 parts on this diagram · 1 diagram in section
