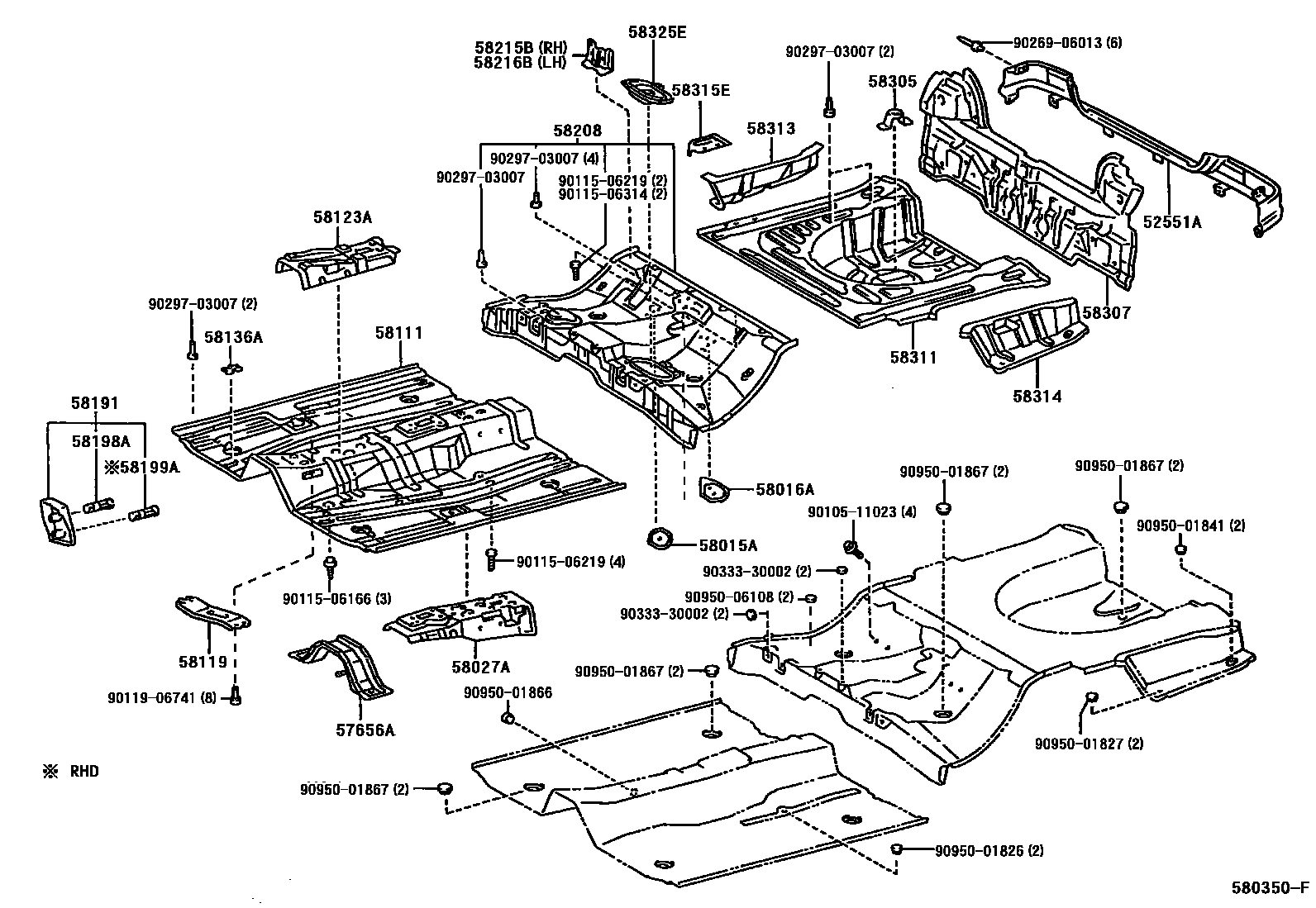

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

52551AFILLER, REAR BUMPER

main52551-12040iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199910

57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1

main57509-12020iCE110; CE110..GEN199704-199910

main57509-12030iCE110,ZZE11#199910-200201

main57656-12060iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199705-199910

main57656-12080iAE11#,EE11#..ARL,GCC,GEN,VEN; AE110..4FC; AE111,112,EE11#..IDN,MA,PHL,TH,VEN199910

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-12040iAE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199704

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-12010iAE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199704

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-12121iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

58111PAN, FRONT FLOOR

main58111-12261iAE11#,EE11#199505-199508

main58111-12262iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199508

58119PLATE, FRONT FLOOR SIDE, FRONT

main58119-12010×2iZZE11#200005-200201

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-12060iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12030×2iAE110..4FC..GEN199807

58191FOOTREST, FRONT FLOOR

main58191-12110iAE111..MA;AE111..RHD..WG..5F;AE110,112..XLI..(IDN,TH);AE110,112,CE110..RHD..(GLI,SEG,XL);AE111,EE11#..RHD..SED..(GL,GLI,XL,XLI)199704-200207

main58192-12060iAE111,112,CE110,EE110,ZZE11#..LHD..(3FC,4FC,5F)..(GCC,GEN,TUR,VEN); AE111,112,EE110..(4FC,5F)..(BZ,GENKD,PHL)200007-200103

58198ACLIP, FOOTREST, NO.1

main58198-12030iAE110..4FC..GEN199807

main58198-12040×2iAE111,112,EE110..(GLI,SEG,XL)..(BZ,GENKD,PHL)200103

58199ACLIP, FOOTREST, NO.2

main58199-12020iAE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN)199505

58208PAN, CENTER FLOOR

main58211-12901iAE11#,EE11#199505-199704

main58211-12910iAE11#,EE111..IDN,MA,TH199711-200207

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

main58211-12911iAE110..4FC..GEN199807

main58211-13907iAE111,112,EE110..WG199704-199910

58215BBRACKET, REAR SEAT MOUNTING, RH

main58215-12041iAE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL)199704

58216BBRACKET, REAR SEAT MOUNTING, LH

main58216-12040iAE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL)199704

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-12040iAE110..4FC..GEN199807-199808

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-1A450iAE110,EE110..GL,GLI,XLI;AE111,112..(GL,GLI,SEG)..(GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN); AE110..4FC..GEN; AE111,112..(GL,GLI)..(GCC,GEN,VEN);AE110,CE110,EE110..(GL,GLI,XLI)..GEN199807-199911

main58307-1A460iZZE11#200005-200201

main58307-1A470iAE111..ARL,NZ199710-199910

main58307-1A530iAE112..BZ;AE111..VEN;AE111,EE11#..(GLI,STD)..(TH,VEN); CE110..XLI;AE111,EE111..VEN199901-199911

W(FIXED TYPE REAR SEAT)

main58307-1A900iAE111..RHD..5F..GLI..GEN199705-199910

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

main58307-1A901iAE111..RHD..SED..5F..XLI..GEN; EE111..GEN199705-199910

MALAYSIA SPEC; THAILAND SPEC

58311PAN, REAR FLOOR

main58311-12210iAE110..4FC..GEN; AE111..SED;AE110,EE11#;AE111..WG..5F;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN); EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN199808

58313PANEL, REAR FLOOR SIDE, RH

main58313-12904iAE11#,EE11#199505-199704

58314PANEL, REAR FLOOR SIDE, LH

main58314-12250iAE110,111,EE11#..SED;AE112,CE110..GLI,SEG,XL;AE112..SED..XLI..(BZ,GCC,IDN); AE110..4FC..GEN; EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN)199808

58315EEXTENSION REAR FLOOR SIDE PANEL, FRONT RH

main58315-12070iAE110..TH;AE111..MA;AE110..GLI;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH,TUR);AE112,CE110,EE11#..GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH,TUR; AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN)199704-199808

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12100iAE110..4FC..GEN199807

9010511023

main90105-11023

9011506166

main90115-06166

9011506219

main90115-06219

9011506314

main90115-06314

9011906741

main90119-06741

9026906013

main90269-06013

9029703007

main90297-03007

9033330002

main90333-30002

9095001826

main90950-01826

9095001827

main90950-01827

9095001841

main90950-01841

9095001866

main90950-01866

9095001867

main90950-01867

9095006108

main90950-06108

36 parts on this diagram · 2 diagrams in section
